With more than 20 years of experience in the R&D and manufacturing of hydraulic jacks, the current product tonnage of the hair market covers 5T to 3000 tons, meeting the vast majority of market demands. Today I will introduce to you what specifications are included in this type of hydraulic jack.

Before showing you the various specifications of manual hydraulic jacks, we should know that they are usually composed of the following parts: hand pump, hydraulic jack, ultra-high pressure tubing, hydraulic joints, and pressure gauges. The manual hydraulic jack is operated by manually pressing the handle of the hand pump, due to the limitation of the volume of the oil tank of the hand pump, please choose a hand pump suitable for the volume of the oil tank. Therefore, we divide the specifications of manual hydraulic jacks for you based on years of practical experience.

Manual hydraulic jacks can usually be equipped with a matching hand pump based on the height of the body. Let's talk about the matching jack according to the type of hand pump.

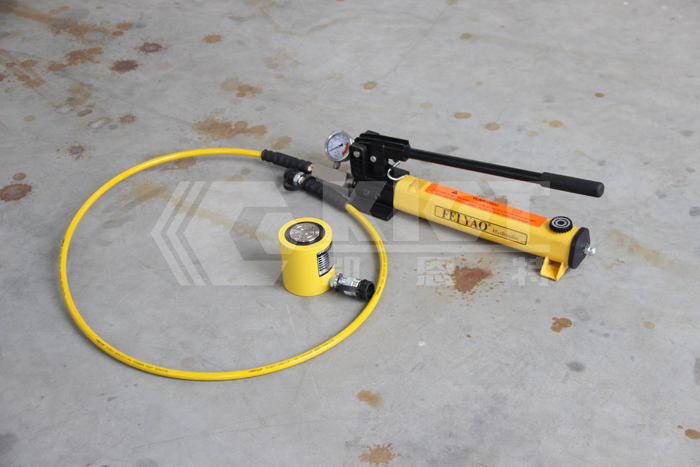

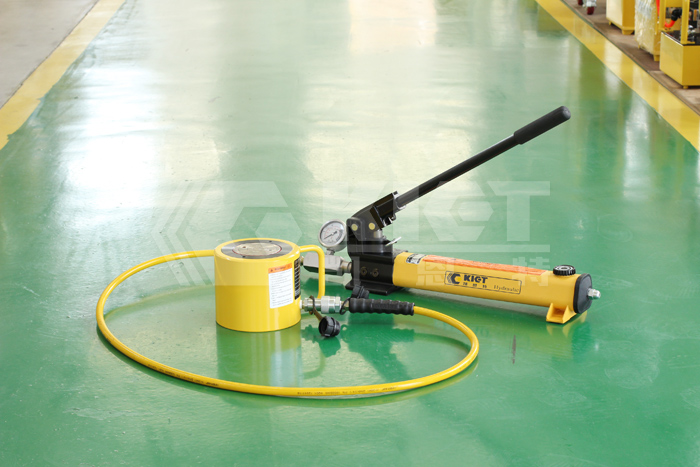

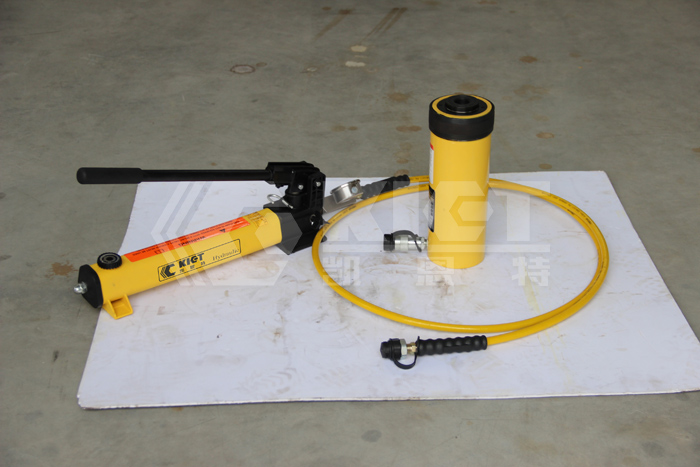

Jack with P392 hand pump:

Thin (ultra-thin) hydraulic jacks, thin self-locking hydraulic jacks with a bearing tonnage of less than 100 tons, single-acting hydraulic jacks with a body height of less than 500mm, single-acting self-locking hydraulic jacks, single-acting aluminum hydraulic jacks, and single-acting hollow hydraulic jacks with a body height of less than 500mm.

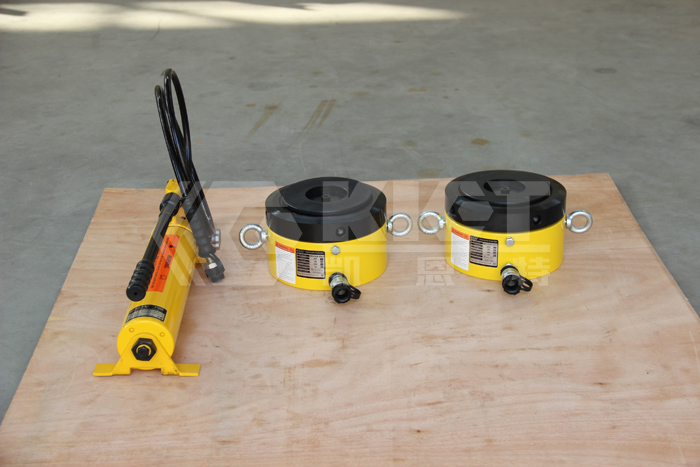

Jack with P80 hand pump:

Low-profile (ultra-thin) hydraulic jacks, low-profile self-locking, single-acting large-tonnage hydraulic jacks with a bearing tonnage of less than 200 tons, single-acting, single-acting self-locking, single-acting aluminum, single-acting hollow hydraulic jacks with a body height of less than 80mm.

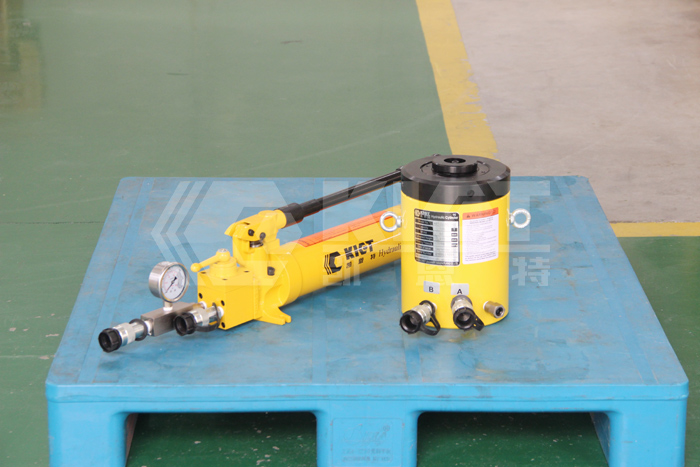

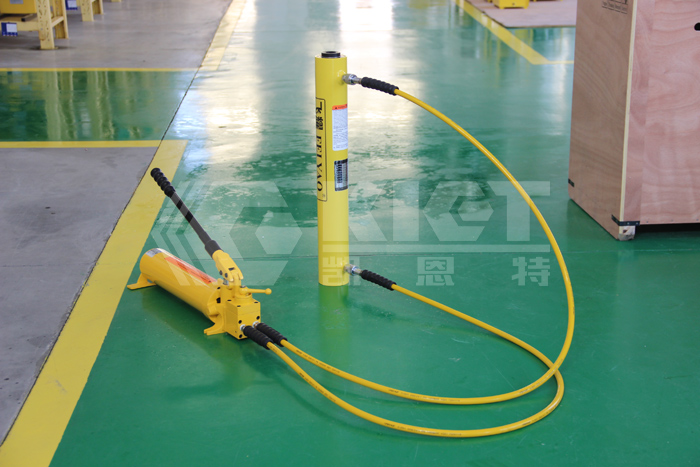

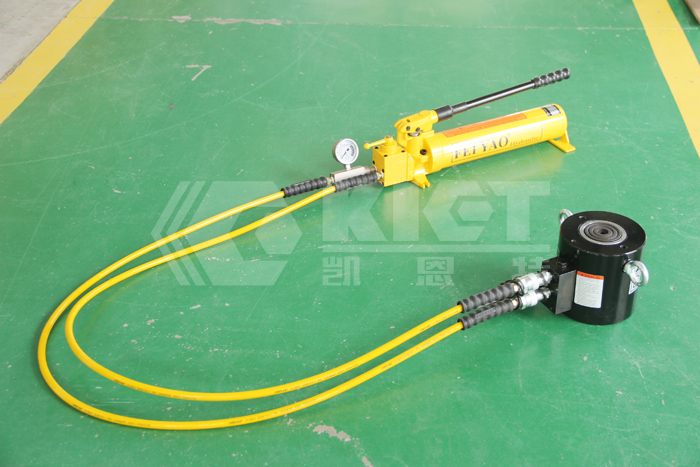

Jack with P84 hand pump:

Double-acting, double-acting large-tonnage hydraulic jacks with a bearing tonnage of less than 200 tons, and double-acting, double-acting self-locking, double-acting aluminum, and double-acting hollow hydraulic jacks with a body height of less than 80mm.

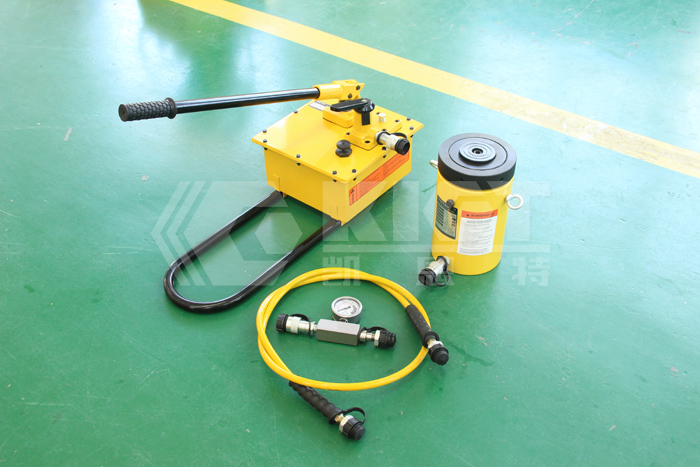

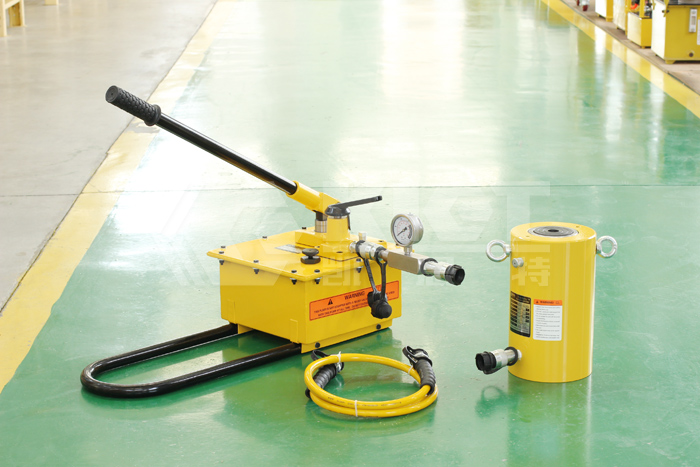

Jack with P460 hand pump:

Single-acting large-tonnage, single-acting aluminum hydraulic jack with a carrying tonnage of less than 250 tons, and thin self-locking hydraulic jack with a tonnage of less than 500 tons.

Jack with P464 hand pump:

Double-acting, double-acting large tonnage, double-acting self-locking, double-acting aluminum, double-acting hollow hydraulic jack with a carrying tonnage of less than 250 tons.

Sometimes we need to synchronize multiple points, and we can add hydraulic distribution valves to control the synchronization of multiple hydraulic jacks. Regarding the relevant knowledge of distribution valves, we will give you a detailed introduction in future chapters, here we only need to know that multiple hydraulic jacks can be operated synchronously through the distribution valve.

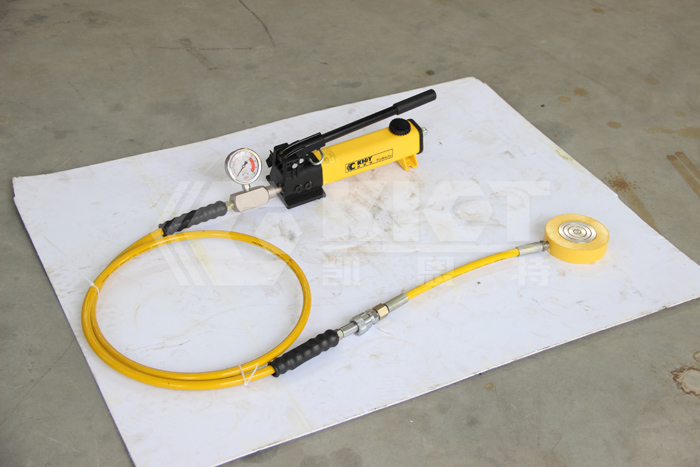

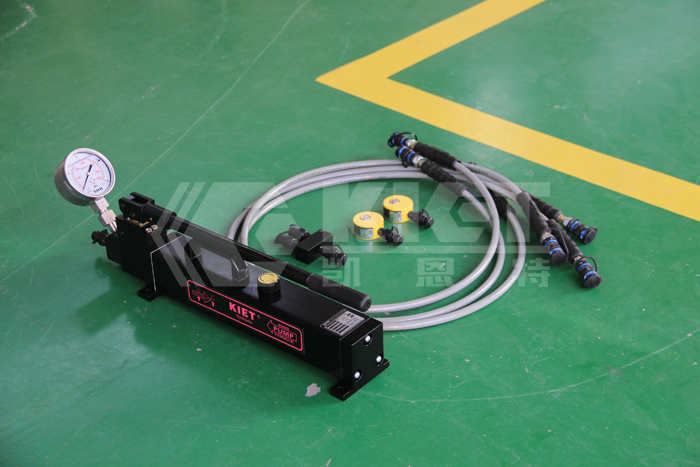

At the end of the article, we present you with common manual hydraulic jack delivery photos:
