There are various specifications of 100 ton hydraulic jack, here 100 tons refers to the bearing capacity of the hydraulic jack, when choosing from the bearing capacity as the entry point to purchase, the next step is to consider other elements of the hydraulic jack.
Three-element size description:
The normal three elements refer to: carrying capacity, local altitude, and effective travel. The local height is judged from the occasion of use, that is, the vertical distance from the horizontal ground to the heavy object. The point at which the weight is lifted is the position of the center of gravity of the weight, and the ground is selected as a flat horizontal plane. The dimensions of the local height must be less than the vertical distance from the center of gravity to the horizontal ground. The size of the effective stroke is the distance of the hydraulic jack in a single jacking and the maximum distance the piston rod extends. The effective stroke of the hydraulic jack we selected needs to be greater than the jacking distance. Of course, according to the actual working conditions, we can choose to add a spacer at the bottom or use multiple jacking methods to meet the needs.
When the three elements are determined, we also need to choose the appropriate piston return mode: single action and double action.
Double action is hydraulic return, jacking and descending are through hydraulic methods, which is reflected in the appearance of double joints, and there are upper and lower oil ports. The single-action reset method is divided into spring reset and gravity reset. The return method of hydraulic jacks of different specifications is different.
The following shows you the common specifications and dimensions of 100 ton hydraulic jacks:
KET-RCS-1002 Single-acting Low Profile Hydraulic Jack Specifications: Body Height: 141mm; Effective stroke: 57mm.

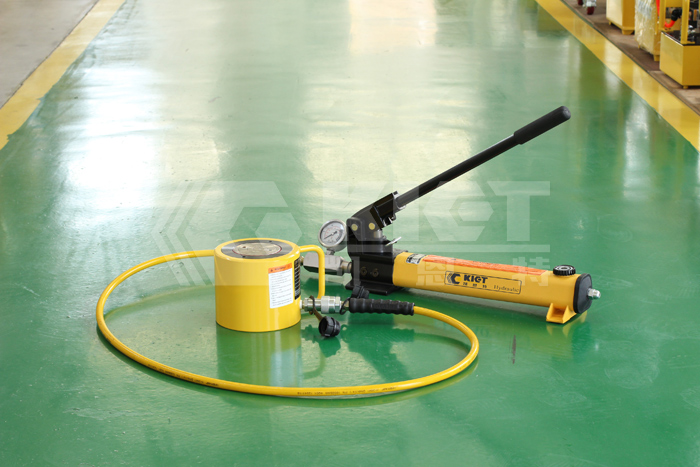

100 ton single acting thin hydraulic jack specification size
KET-RSM-1000 Single Acting Ultra-thin Hydraulic Jack Specification Size: Local Height: 85mm; Effective stroke: 16mm.

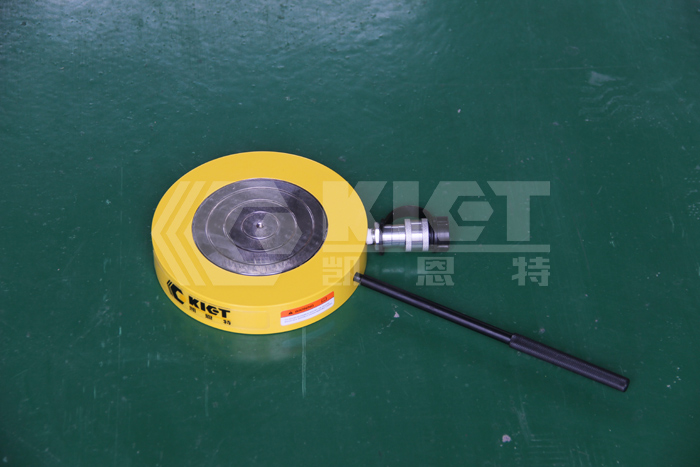

KET-SSM-100 Ultra-low Profile Hydraulic Jack Specifications: Body Height: 50mm; Effective stroke: 20mm.
100 ton ultra-low thin hydraulic jack specification size
KET-RC-1006 Single Acting Hydraulic Jack Specifications: Body Height: 357mm; Effective stroke: 168mm.

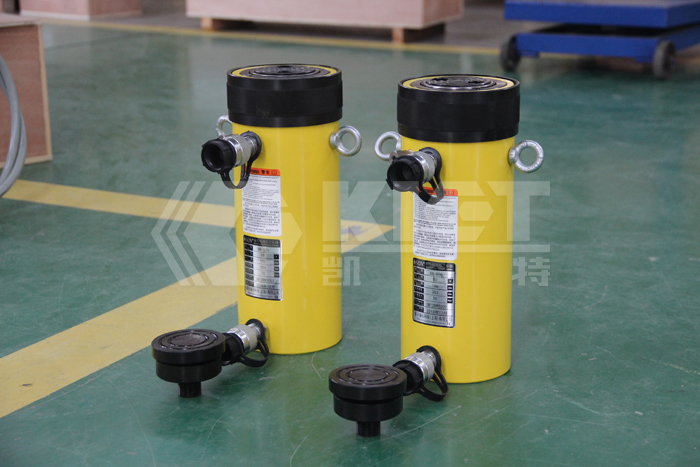

KET-RR-1006 Double Acting Hydraulic Jack Specifications: Body Height: 357mm; Effective stroke: 168mm.
100 ton double acting hydraulic jack specification size

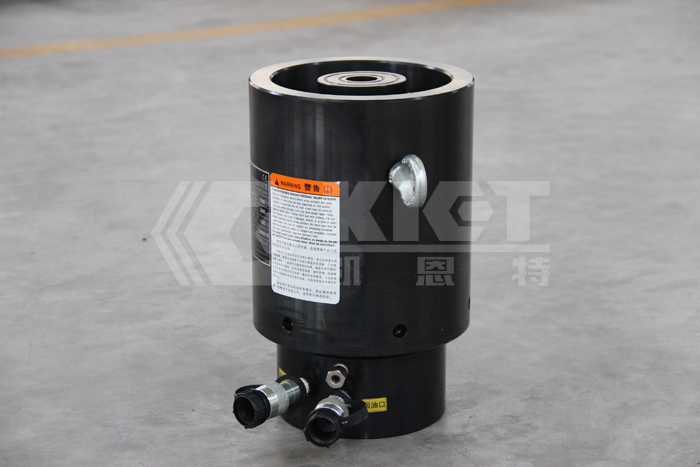

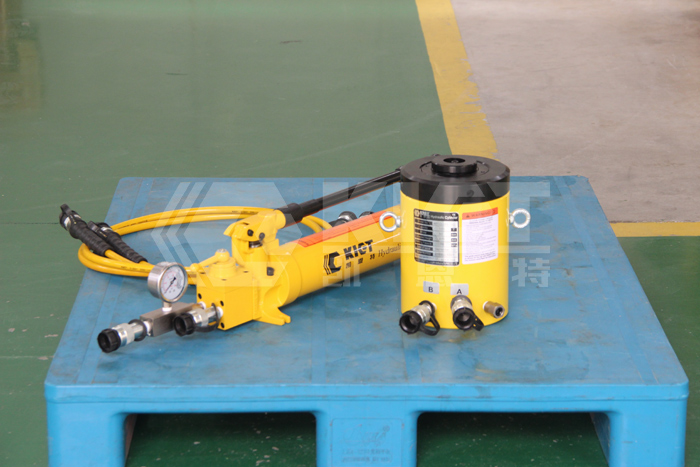

KET-CLL-1006 Single Acting Nut Locking Hydraulic Jack Specifications: Body Height: 287mm; Effective stroke: 150mm.
100 ton single acting nut locking hydraulic jack specification size
100 ton single acting nut locking hydraulic jack specification size

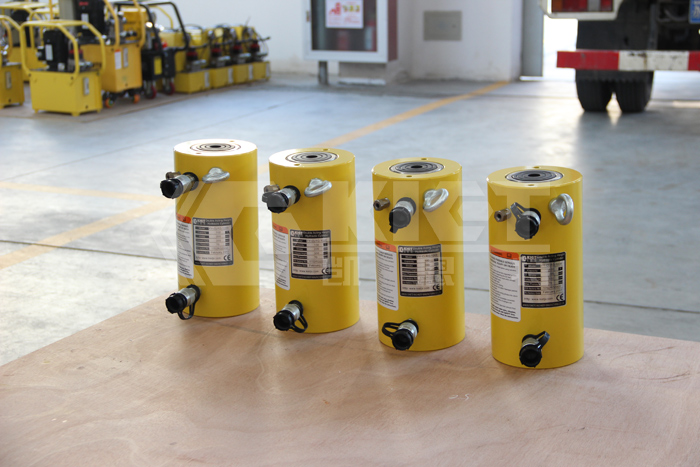

100 ton single acting nut locking hydraulic jack specification sizeKET-CLRG-1006 double-acting large tonnage hydraulic jack Specifications: Body height: 283mm; Effective stroke: 150mm.
100 ton double acting large tonnage hydraulic jack specification size

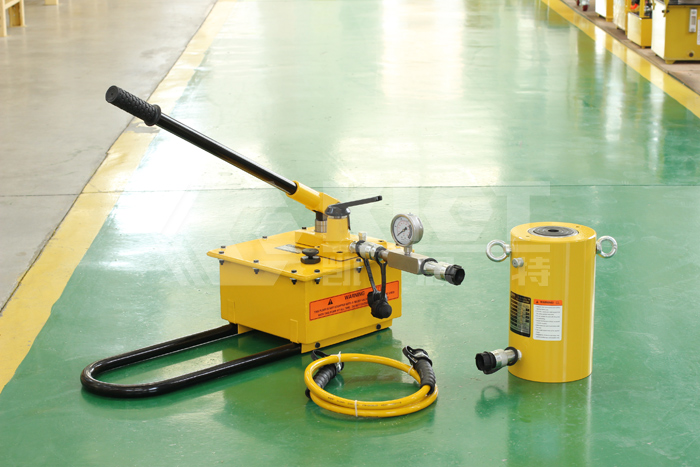

KET-CLSG-1006 Single-Acting Large Tonnage Hydraulic Jack Specifications: Body Height: 283mm; Effective stroke: 150mm.
100 ton single-acting large tonnage hydraulic jack specification size

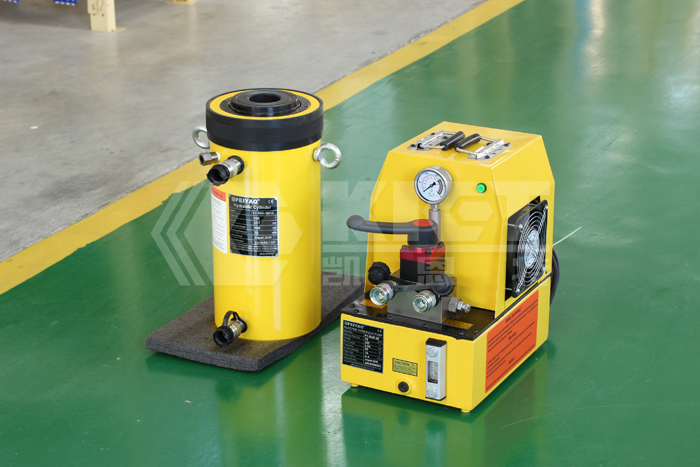

KET-RRH-1006 Double Acting Hollow Hydraulic Jack Specification Size: Body Height: 343mm; Effective stroke: 153mm.
100 ton double acting hollow hydraulic jack specification size
More tonnage hydraulic jack specifications:
