2000T hydraulic cylinder can provide a lifting capacity of 2,000 tons at a single point and is mostly used for the lifting and maintenance of heavy equipment, such as rotary kilns.
—— Configuration schemes for several different specifications of 2000-ton hydraulic cylinders ——

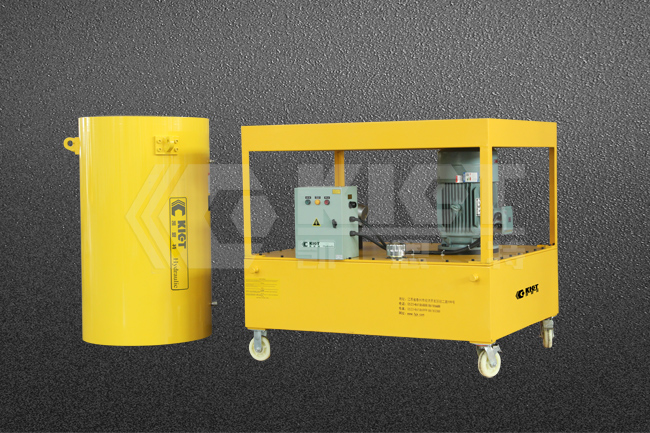

KET-CLRG-2000T-700 high tonnage hydraulic cylinder
- Parameters of KET-CLRG-2000T-700 hydraulic cylinder:
- Closed Height: 1395mm
- Working Stroke: 700mm
- Parameters of KET-SSB-1850 electric hydraulic pump:
- Rated Flow: 8L/min
- Oil Tank Capacity: 720L
- Motor Power: 18.5KW

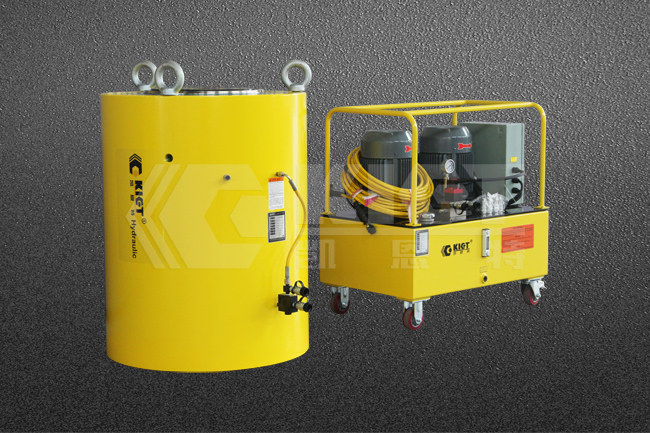

KET-CLRG-2000T-260 high tonnage hydraulic cylinder
- Parameters of KET-CLRG-2000T-260 hydraulic cylinder:
- Closed Height: 1100mm
- Working Stroke: 260mm
- Parameters of electric hydraulic pump:
- Rated Flow: 4L/min×2
- Oil Tank Capacity: 160L
- Motor Power: 5.5KW×2

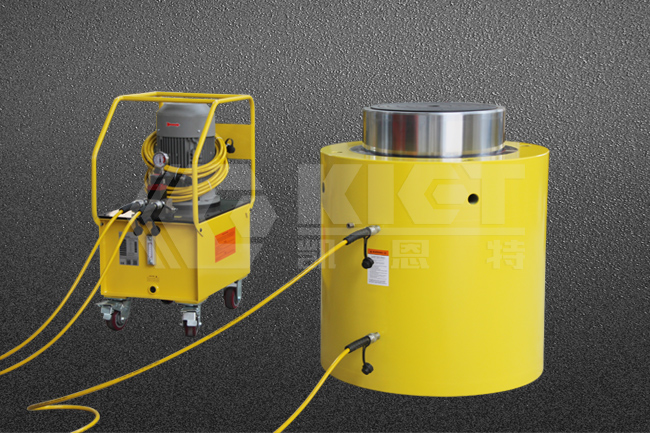

KET-CLRG-20006 high tonnage hydraulic cylinder
- Parameters of KET-CLRG-20006 hydraulic cylinder:
- Closed Height: 840mm
- Working Stroke: 150mm
- Parameters of KET-SSB-550 electric hydraulic pump:
- Rated Flow: 4L/min
- Oil Tank Capacity: 70L
- Motor Power: 5.5KW

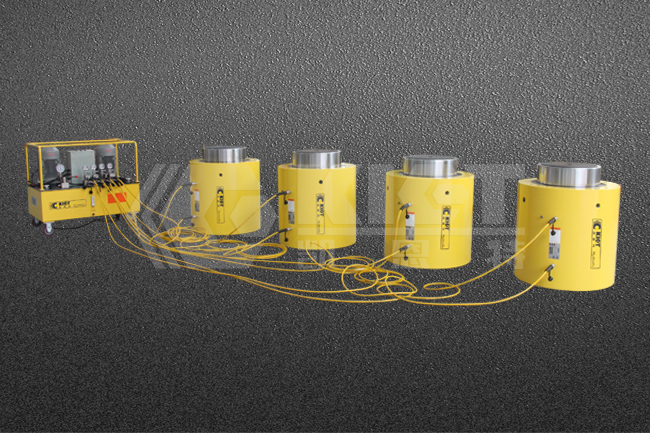

KET-CLRG-20006一拖四配置
