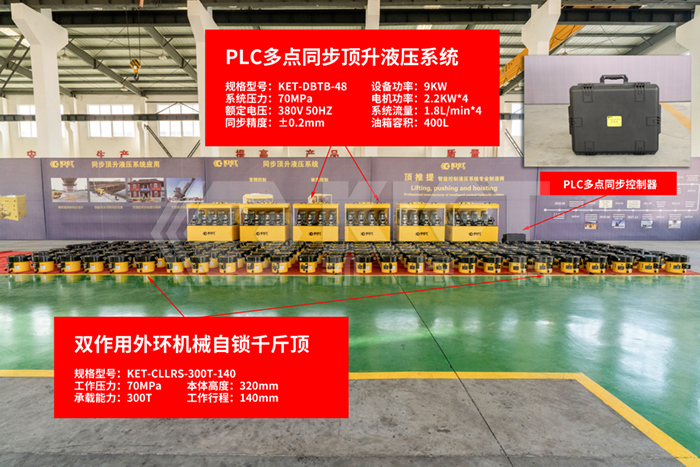

200-point synchronous lifting configuration list: PLC multi-point synchronous lifting hydraulic systems 6 sets, Synchronous controller 1 set, Hydraulic cylinder 240 units
Parameters of the PLC multi-point synchronous lifting hydraulic system:
Model: KET-DBTB-48
System Pressure: 70MPa
Rated Voltage: 380V 50HZ
Synchronization Precision: ±0.2mm
Equipment Power: 9KW
Motor Power: 2.2KW*4
System Flow: 1.8L/min*4
Oil Tank Capacity: 400L
Parameters of double acting self-locking jack with outer ring nut:
Model: KET-CLLRS-300T-140
Working Pressure: 70MPa
Carrying Capacity: 300T
Closed Height: 320mm
Working Stroke: 140mm
