The steel strand synchronous lifting system is controlled by a computer. It connects heavy objects with steel strands and lifts and lowers the heavy objects by pulling and retracting the steel strands. The lifting points can be expanded to increase the rated weight of the lifting.

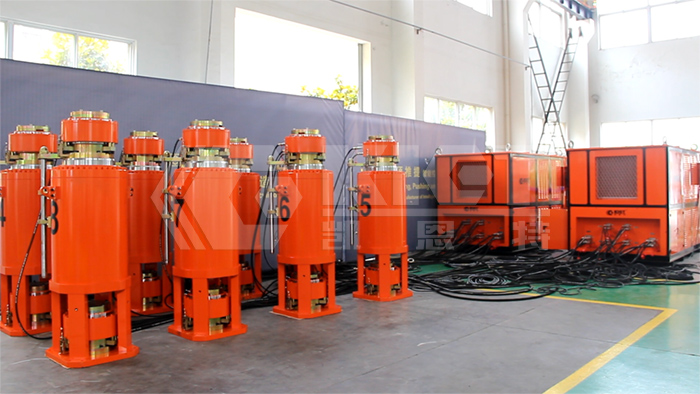

Configuration list of eight point steel strand synchronous lifting system: 8 units strand jacks and 1 set of synchronous hoisting hydraulic system.
Parameters of strand jacks:
Model: KET-TSD-4000B
Hoisting Capacity: 400T
Closed Height: 2160mm
Working Stroke: 500mm
Steel strand Quantity: 27
Working Pressure: 28Mpa
Steel Strand Diameter: 28mm
Parameters of synchronous hoisting hydraulic system:
Working Pressure: 28Mpa
System Power: 4X18.5KW
Hoisting Speed: 6 meters/hour
