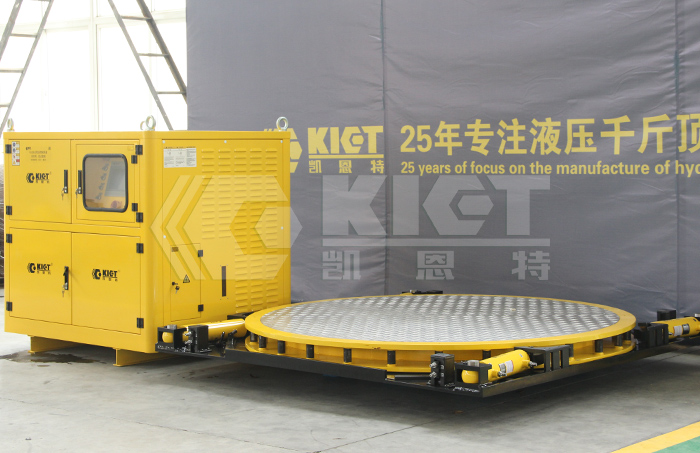

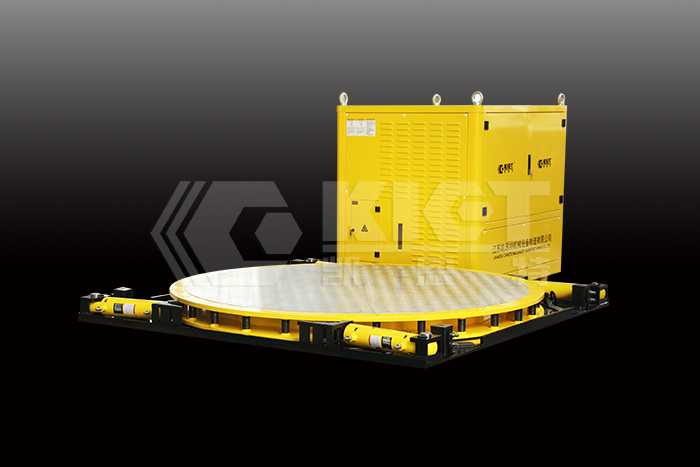

The hydraulic turntable, designed for applications where space is limited, needs to rotate around the center point to meet the 360° turning requirements. The hydraulic turntable controls the synchronous extending and retracting of the turntable cylinder through a four-point frequency conversion system, thereby driving the turntable to rotate at a constant speed. The small-distance lifting of the hydraulic turntable is achieved through the built-in hydraulic cylinder. Configuration list: Hydraulic turntable, double acting four-point frequency conversion control system, hydraulic hose.
Parameters of hydraulic turntable:
Load Capacity: 250T
Rotation angle per stroke: 12.5°
Vertical Lifting Height: 30mm
Parameters of double acting four-point frequency conversion control system:
Rated Pressure: 70Mpa
Rated Flow: 2L/min×4
Motor Power: 2.2Kw×4
Working Voltage: 380V 50Hz
Synchronous lifting accuracy: ±0.2mm
Synchronous pushing positioning accuracy: ±2mm
