Features: Modular design, small size, easy steering, safe and reliable.
Uses: For occasions with limited space, it is necessary to rotate around the center point to meet 360° steering.

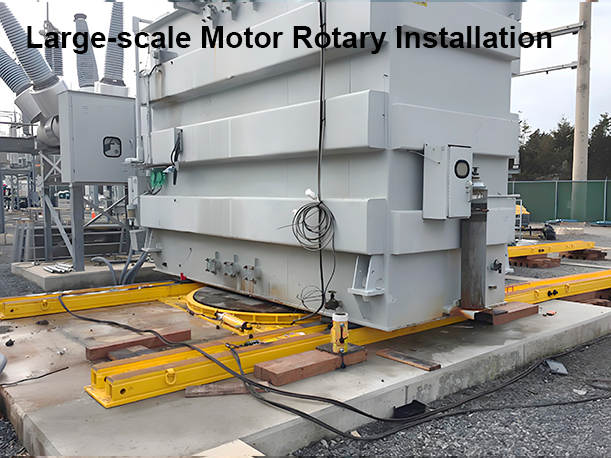

In the construction of conventional heavy load installation and transportation projects, when the heavy load needs to be rotated, it is usually achieved by lifting and then rotating with a large crane, but this method is restricted by space.

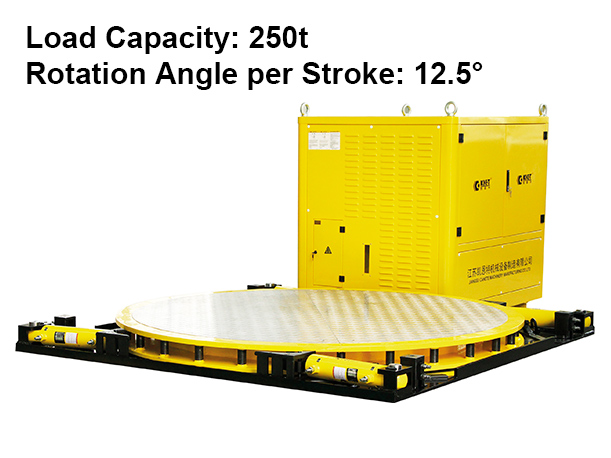

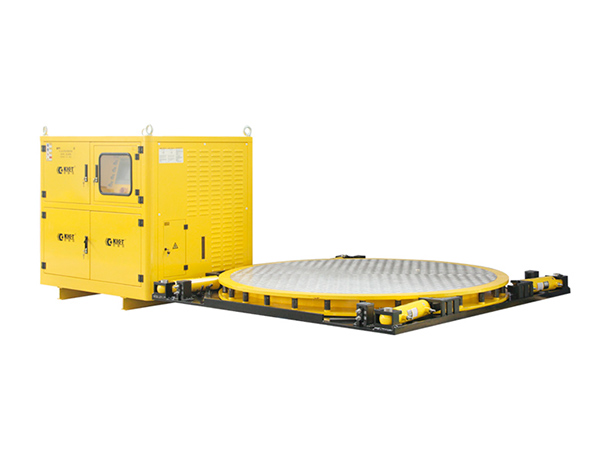

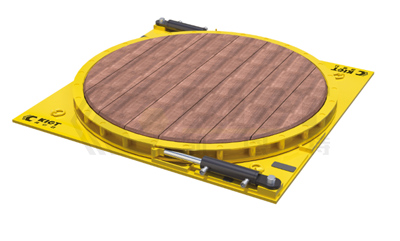

In view of the above characteristics, the hydraulic turntable developed by Canete breaks through conventional thinking. The hydraulic turntable itself has a push-pull hydraulic cylinder. Driven by the hydraulic cylinder, the turntable rotates around the center point to meet 360° rotation, which is especially suitable for use when space location is limited.
| Model | Max. rotating load(T) | Max. rotating angle（°） | Assembled combination | Max. working pressure（MPa） | Moving speed °/min |
| KET-TT-300 | 300 | 360 | Yes | 70 | 30 |
| KET-TT-500 | 500 | 360 | Yes | 70 | 30 |
