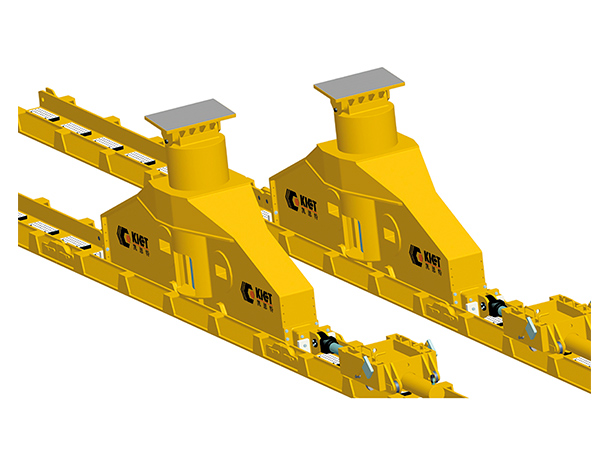

KET-VSSHeavy Duty Long Distance Pushing Hydraulic Equipment

Features: Multiple linkage synchronous control, electromechanical and hydraulic integrated design.

Uses: Used for the movement of heavy objects.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry
Heavy Duty Long Distance Pushing Hydraulic Equipment
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
  • Each load-bearing device has a maximum lifting capacity of 1,000 tons, and the system can be connected to a maximum of 100 devices for simultaneous synchronization control
  • With synchronous positioning accuracy up to 1mm, all parameters can be set in the master control room according to needs of the working conditions.
  • Modern communication bus networking mode, electromechanical fluid integration design; each load bearing equipment is a complete hydraulic, mechanical and electrical control unit.
  • Adopt heavy-duty sliding method to ensure that there is no possibility of instability or falling in the vertical direction, which is safe and reliable.
  • Real-time monitoring by displacement sensors and pressure sensors to ensure on-site data construction.
  • All pipelines are quickly plugged and unplugged; and on-site operation is simple and convenient.
Features:
  • Single device capacity: 100-1000T
  • Synchronous sliding speed: 0-1m/min
  • Synchronous positioning accuracy: ±1mm
  • Heavy load lifting stroke: 200mm
  • Single pushing distance: 200-1000mm
  • Online connection mode: bus communication
Specs& Dims
Model Sliding Beam Push-Pull Device
CapacityT Min. Heightmm Strokemm Weightkg CapacityT Strokemm
KET-VSS-100 100 645 150 585 100/50 600
KET-VSS-150 150 905 250 1000 150/75 600
KET-VSS-300 300 1355 400 3211 300/150 1250
KET-VSS-500 500 1485 600 4761 500/250 1250
KET-VSS-800 800 1542 600 8000 800/400 1250
KET-VSS-1000 1000 1462 600 11600 1000/500 1250
KIET Tour
Applications
Hydraulic Skidding System (Light-Duty Skidding System) for Transformer Installation and Positioning
Hydraulic Skidding System (Light-Duty Skidding System) for Transformer Installation and Positioning
Hydraulic Skidding System (Light-Duty Skidding System) for Transformer Installation and Positioning
The hydraulic skidding system mainly consists of skidding tracks, slide shoes, low-friction slide pads, push-pull hydraulic jacks, and a control pump station.
Industry Applications：Thermal
Hydraulic Turntable for Rotating Large Motors during Installation
Hydraulic Turntable for Rotating Large Motors during Installation
Hydraulic Turntable for Rotating Large Motors during Installation
Hydraulic Turntable for Rotating Large Motors during Installation
Industry Applications：Thermal

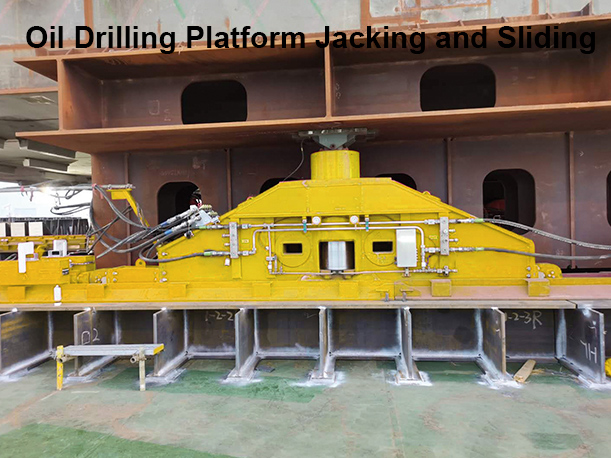

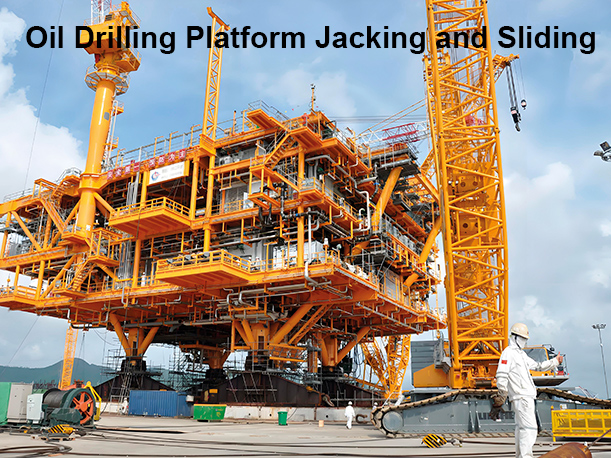

Heavy-load Long-distance Lifting & Skidding Hydraulic System for Offshore Oil Drilling Platform Relocation
Heavy-load Long-distance Lifting & Skidding Hydraulic System for Offshore Oil Drilling Platform Relocation
Heavy-load Long-distance Lifting & Skidding Hydraulic System for Offshore Oil Drilling Platform Relocation
Industry Applications：Marine Engineering
