Features: Modular assembly for long-distance pushing and pulling.
Uses: Realize push-pull action in specific occasions without lifting tools such as forklifts.

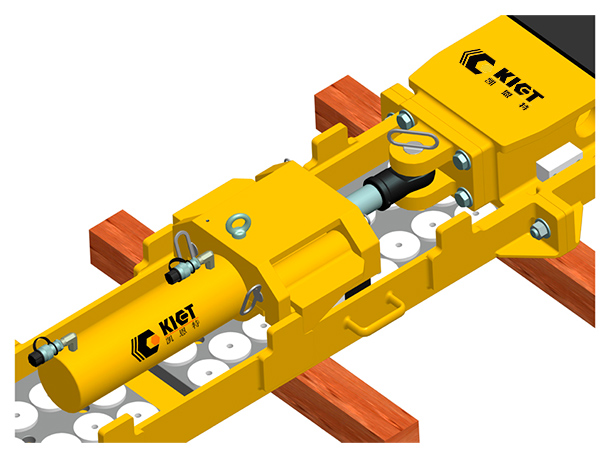

The light weight sliding hydraulic system is mainly composed of slides, sliding shoes, friction-reducing sliding blocks, push-pull hydraulic cylinders and control pump stations.

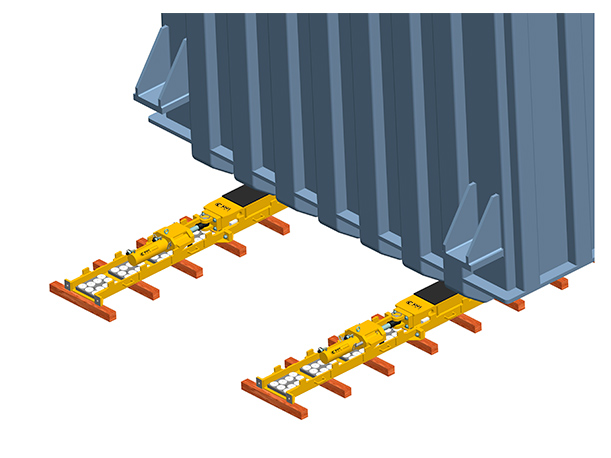

The moving object is placed on the sliding shoe. The sliding shoe and the friction-reducing sliding block on the slide form a sliding pair, which drives the object forward and backward by controlling the expansion and contraction of the hydraulic cylinder; The positive and negative force points are realized through the mechanical ratchet buckle form, so as to realize the push and pull action of the object. It is especially suitable for use in small spaces. It can be used easily without lifting tools such as forklifts.
| Model No. | Load Capacity (t) | Working Pressure (MPa) | Height (mm) | Width (mm) | Slideway Length (m) | Slideway Load | Slide Buttress Size (mm) | Slideway Weight (kg/m) |
| KET-XLP-150 | 150 | 70 | 33 | 358 | 2×1.53 | Yes | 1270×195 660×195 | 2×195 |
