The synchronous weighing hydraulic system is based on PLC control and hydraulic drive. It features a large weighing capacity and high precision and can be applied in various scenarios such as drilling platforms, steel box girders, large steel structures, large equipment, and pressure vessel weighing. The weighing system can be expanded at multiple points, such as 4 points, 8 points, 12 points, 16 points, etc. This article introduces the configuration scheme of an 8-point synchronous weighing hydraulic system.

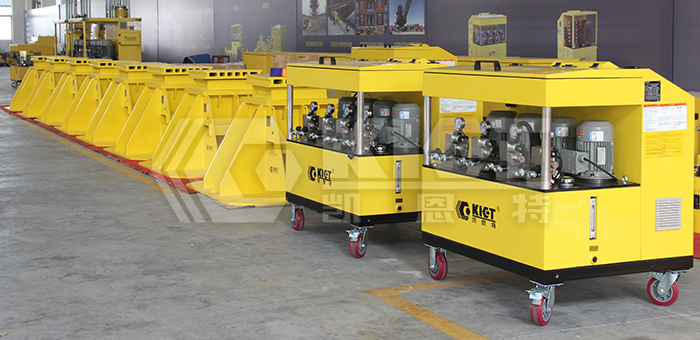

Configuration scheme of 8-point synchronous weighing hydraulic system

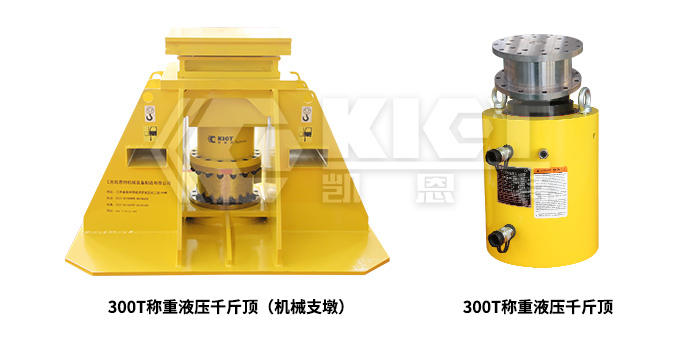

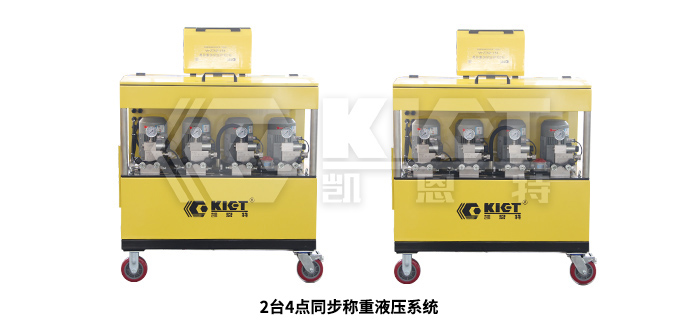

The 8-point synchronous weighing hydraulic system control system is composed of a control system, a drive system and an energy system. The control system is responsible for data reception, transmission and processing by a high-precision intelligent weighing hydraulic system. The drive system is composed of 8 weighing hydraulic cylinders, which are responsible for lifting heavy objects and collecting weighing data. The energy system is powered by multiple 70Mpa hydraulic stations, ensuring stable and reliable operation of the equipment.
For more configuration schemes of the multiple-point synchronous weighing hydraulic system, please consult the sales engineers of KIET!
