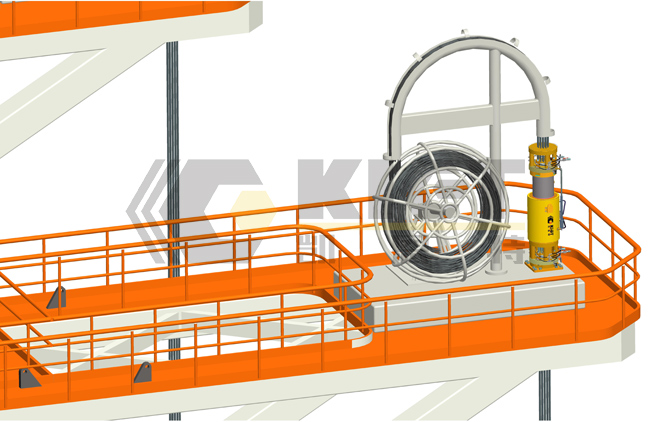

Features: Flexible steel strand is used to bear the load, the lifting height is not limited, the lifting anchor is self-locking, and the long-term reliable locking at any position.

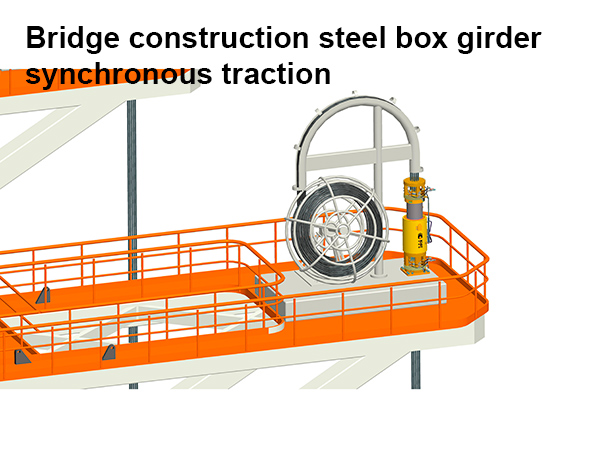

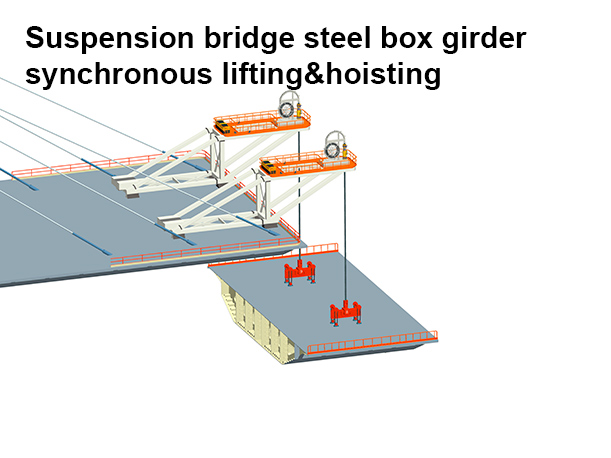

Uses: Through computer cluster control, the overall high-altitude synchronous lifting and lowering of large-tonnage, large-span and large-area super-large components can be realized.

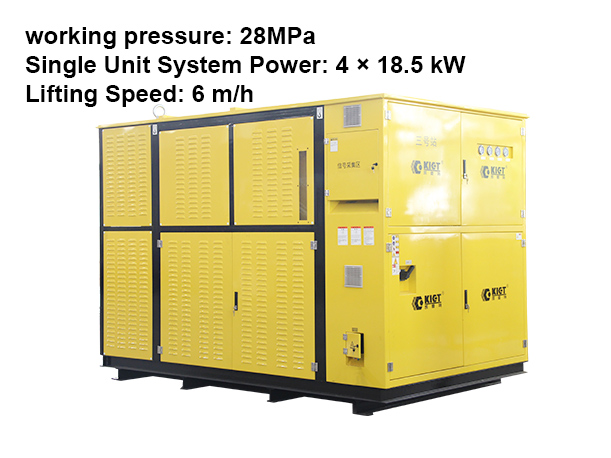

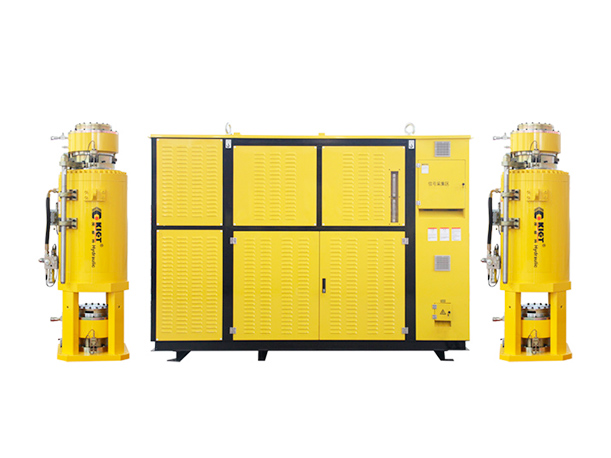

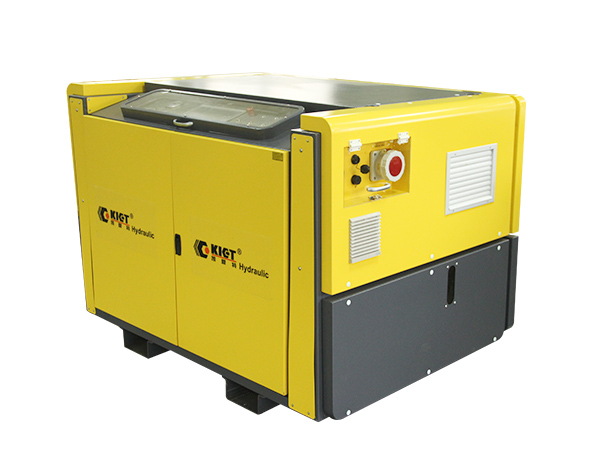

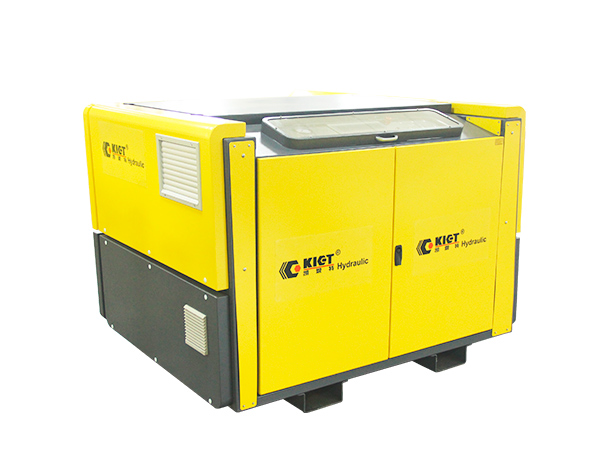

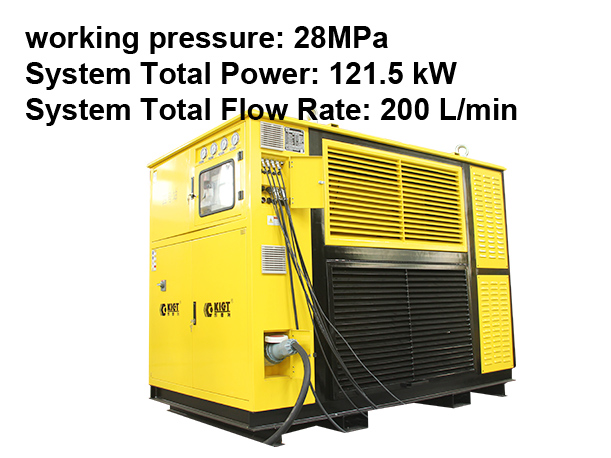

Increase the function of frequency control based on conventional hydraulic proportion power system, improve the utilization of energy. Reduces overheat and increases reliability of the system. It is the best choice for the synchronous hydraulic lifting systems and synchronous traction equipment.

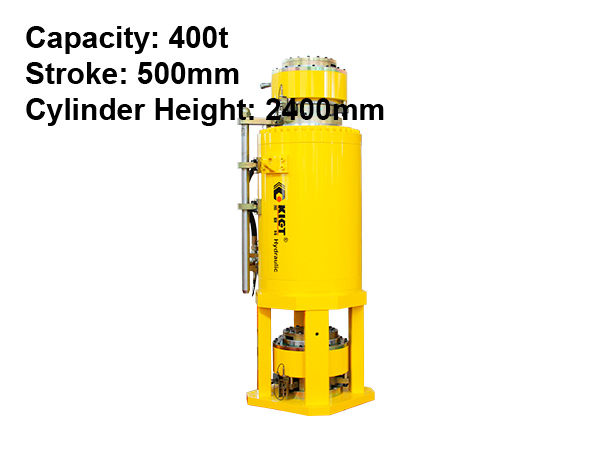

| Model No. | Cylinder Height （mm) | Capacity （T） | Stroke （mm） | Strand Steel Dia. （mm） | Strand Steel Nos | Weight （kg） |
| KET-TSD-15 | 1980 | 15 | 500 | 18 | 1 | 160 |
| KET-TSD-60 | 2000 | 60 | 500 | 18 | 4 | 610 |
| KET-TSD-100 | 2050 | 100 | 500 | 18 | 7 | 910 |
| KET-TSD-200 | 2100 | 185 | 500 | 18 | 12 | 1600 |
| KET-TSD-300 | 2180 | 294 | 500 | 18 | 19 | 2300 |
| KET-TSD-400 | 2280 | 400 | 500 | 18 | 27 | 3300 |
| KET-TSD-600 | 2300 | 588 | 500 | 18 | 38 | 4500 |
| KET-TSD-700 | 2350 | 697 | 500 | 18 | 45 | 5600 |
| KET-TSD-800 | 2400 | 800 | 500 | 18 | 54 | 6660 |
| KET-TSD-1000 | 2500 | 1000 | 500 | 18 | 66 | 8000 |
