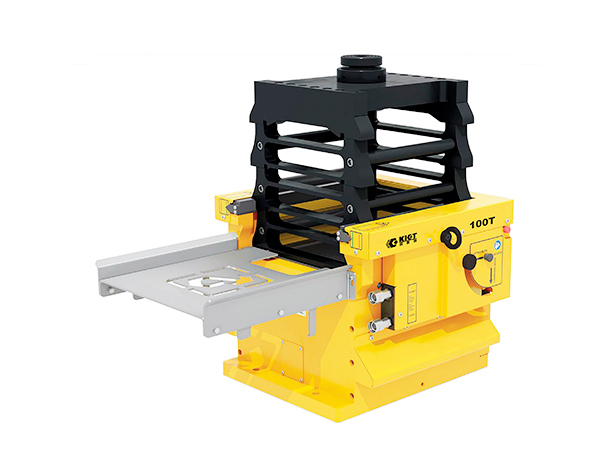

Features: Self-aligning steel jacking module, saving time and effort.

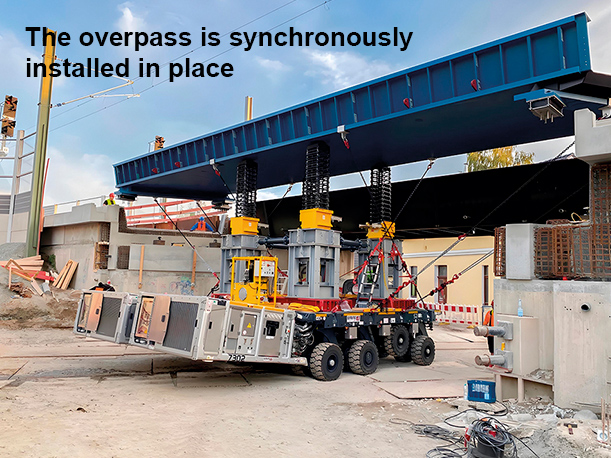

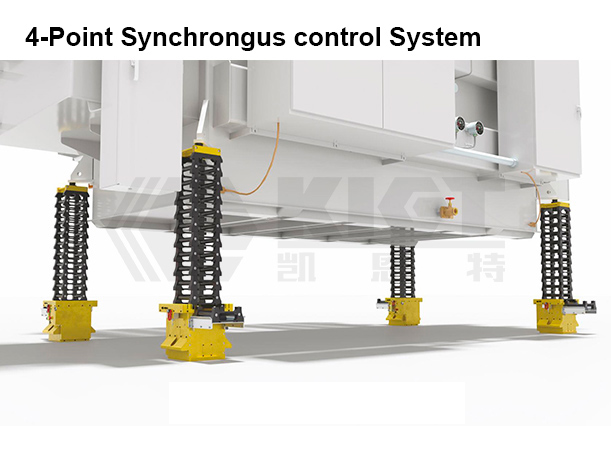

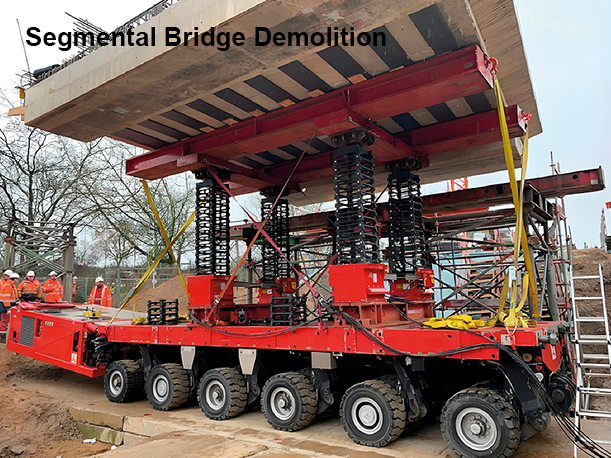

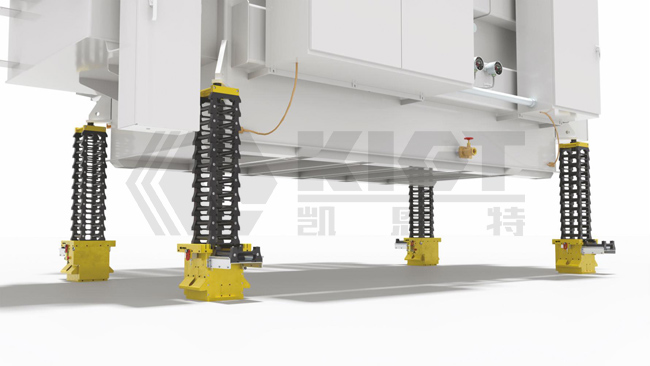

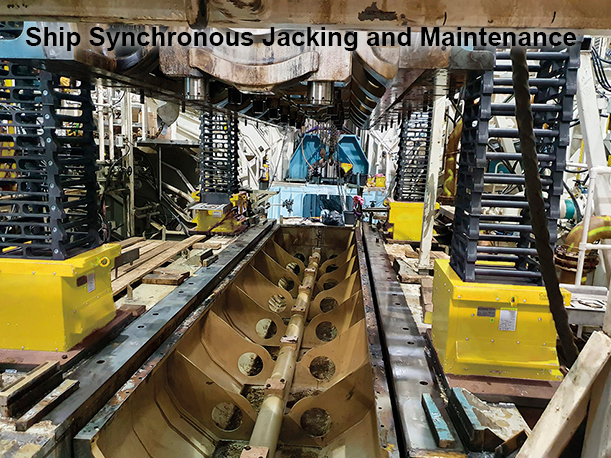

Uses: Synchronous jacking of large steel structures and large equipment.
Technical Parameters
| Model No. | Max Side Load (m) | Jacking Capacity per Unit (t) | Stroke (mm) | Adjustable Saddle Stroke (mm) | Max Oil Flow Rate (l/min) | Forward (cm³) | Backward (cm³) | Block Weight (kg) | Base Weight (kg) | Block Weight (kg) |
| KET-JAD-108 | 1.5% @ 2m | 50 | 156 | 50 | 0.90 | 1225 | 624 | 40 | 360 | 16 |
| KET-JAD-208A | 1.5% @ 2m | 100 | 156 | 50 | 1.12 | 2071 | 965 | 100 | 820 | 23.5 |

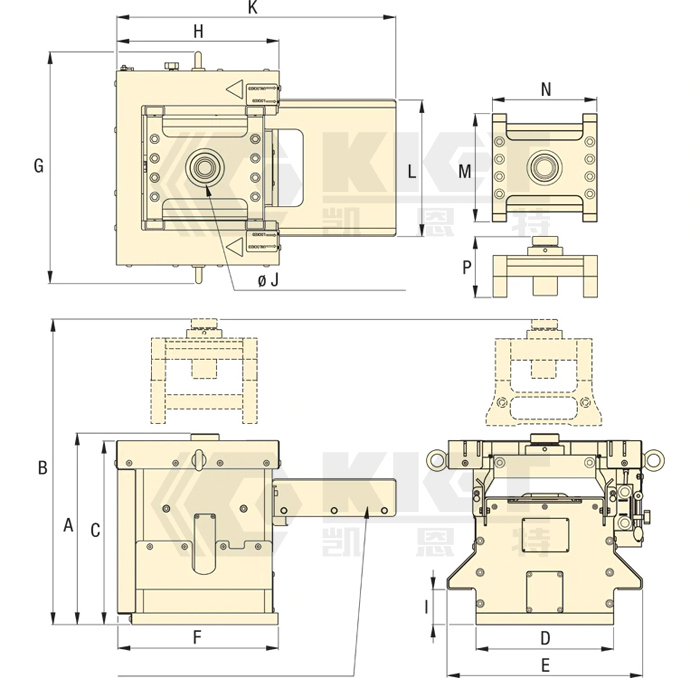

| Model No. | Mini Height with Block (mm) | Max Height (mm | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) | M (mm) | N (mm) | P min. (mm) | P max. (mm) |
| KET-JAD-108 | 494 | 2067 | 494 | 2067 | 476 | 356 | 505 | 443 | 556 | 428 | 91 | 75 | 726 | 351 | 300 | 310 | 175 | 225 |
