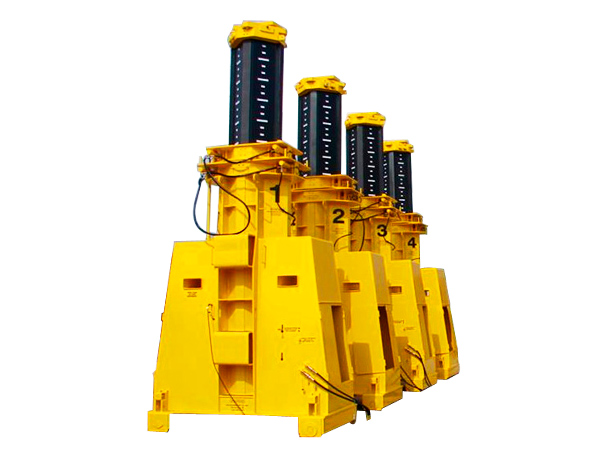

● When traditional crane cannot be used, hydraulic gantry crane is a safe and effective hydraulic equipment for lifting and positioning heavy loads. Place hydraulic gantry crane on slide rail to move and install heavy objects.

● KET-SL series hydraulic gantry crane

KET-SL series hydraulic gantry crane can provide stable and controllable lifting below 400 tons, lifting height up to 9 meters.

● KET-SBL series hydraulic gantry crane

KET-SBL series hydraulic gantry crane has lifting capacity of more than 400 tons and lifting height of nearly 12.2 meters.

● KET-MBL series hydraulic gantry crane

● The KET-MBL series hydraulic gantry crane can withstand the ultimate lifting conditions of more than 600 tons and up to 14.6 meters.

All hydraulic gantry cranes are equipped with unique performance and control hydraulic system to ensure the best operation stability and safety.
● Independent hydraulic and electronic control system

● Intelligent lifting wireless control system

● Self-driving walking system

● With foldable boom

● Complete auxiliary equipment: top beam, lifting ring, side shifter and slide rail

● Lifting and Installation of Large Forging Press

● Lifting and Installation of Large Generator
● Encrypted two-way communication to eliminate interference from other devices

● Use multi-channel wireless (2.4GHz) or wired (RS-485) to control remotely

● Operating high and low speed settings

● Improve automatic synchronization. Precision is 24mm

● Automatic walking synchronization. Precision is 15mm. Overload and stroke alarm

● Emergency stop switch for remote side shift control

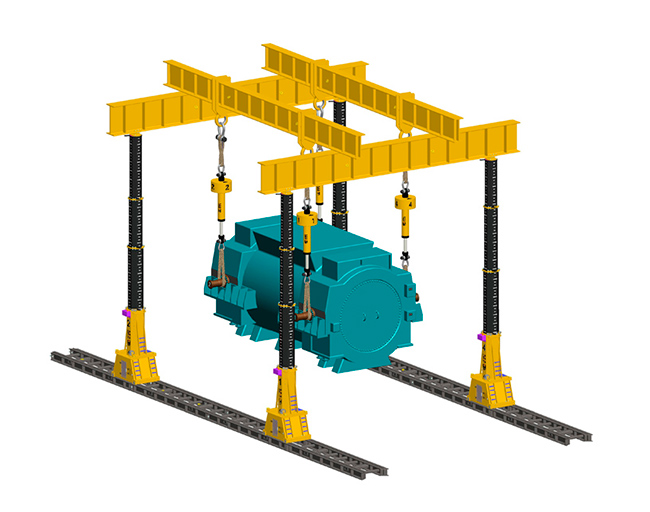

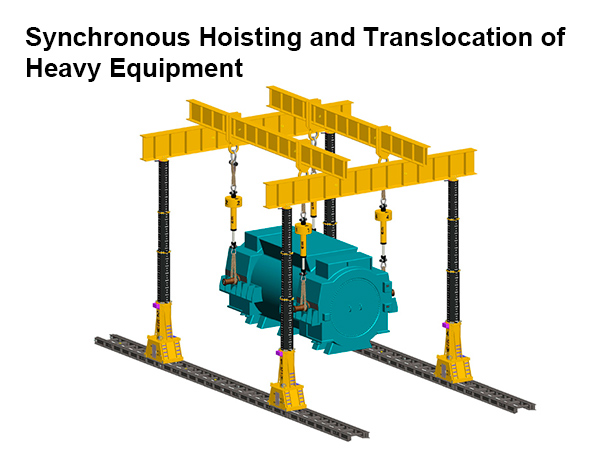

Large Motor Lifting Diagram

Specs& Dims

Model	Lifting Capacity (T/KN)	Retracted Height (mm)	1st Stage		2nd Stage		3rd Stage		Lifting Height(mm)	Width of Slide Rail(mm)	Weight(kg)
Model	Lifting Capacity (T/KN)	Retracted Height (mm)	Max. Height(mm)	Max. Load(ton)	Max. Height(mm)	Max. Load(ton)	Max. Height(mm)	Max. Load(ton)	Lifting Height(mm)	Width of Slide Rail(mm)	Weight(kg)
KET-SL-60	60(600)	1997	3397	15	4956	15	-	-	2036	770	1050
KET-SL-125	125(1250)	2700	4635	31	6700	31	-	-	2760	812	2130
KET-SL-400	400(4000)	3170	5228	100	7236	100	9144	46	3170	1218	4600
KET-SBL-500	500(5000)	3028	4988	130	6898	130	8608	75	3028	1218	6300
KET-SBL-900	900(9000)	5000	8300	224	11300	148	-	-	2243	1218	13.350
KET-SBL-1100	1069(10.484)	4370	7004	262	9668	169	12.002	94	2244	1218	11.950
KET-MBL-500	500(5000)	6098	—	125	12.867	125	-	-	2243	1682	19.750
KET-MBL-600	600(6000)	6553	—	150	14.552	150	-	-	2525	1982	20.950

KIET Tour

Applications

Hydraulic Gantry Systems for Equipment Jacking and Relocation

Hydraulic gantry systems are applied in excavator lifting and maintenance, motor installation, heavy equipment relocation, and other similar tasks.

Industry Applications：Equipment Manufacturing
