The stage-lift hydraulic cylinder breaks through its own stroke limit and achieves a large lifting height requirement through stage-lift.

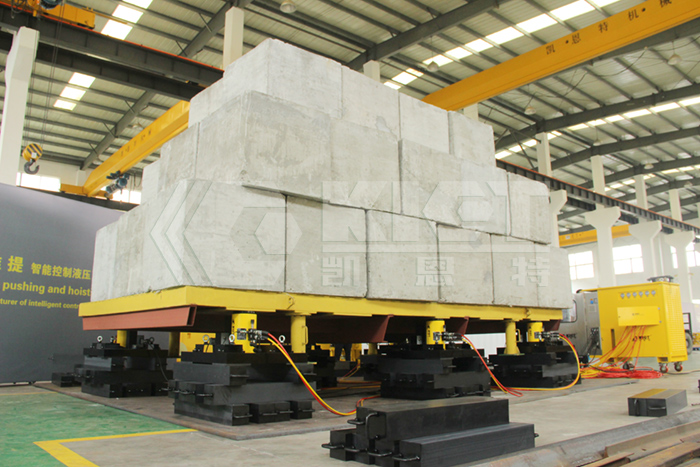

Six-point synchronous stage-lift configuration list: 1 set of PLC multi-point synchronous lifting hydraulic system, 6 units stage-lift hydraulic cylinders, blocks are supplied on demand.
Parameters of stage-lift hydraulic cylinder:
Mode: KET-RK-1508
Capacity: 150T
Stroke: 200mm
Closed Height: 458mm
Tray Diameter: 800mm
Saddle Diameter: 200mm
Working Pressure: 70Mpa
Parameters of 6-point PLC synchronous lifting system:
6-point synchronous control
Flow: 6*2.1L/min
Motor Power: 18.5KW
Synchronous control accuracy: 3%
