The four-point synchronous lifting load positioning system is developed to balance the vibration when heavy objects are suddenly started or stopped during hoisting. The cylinder is equipped with an internal sensor for automatic positioning and adjustment.

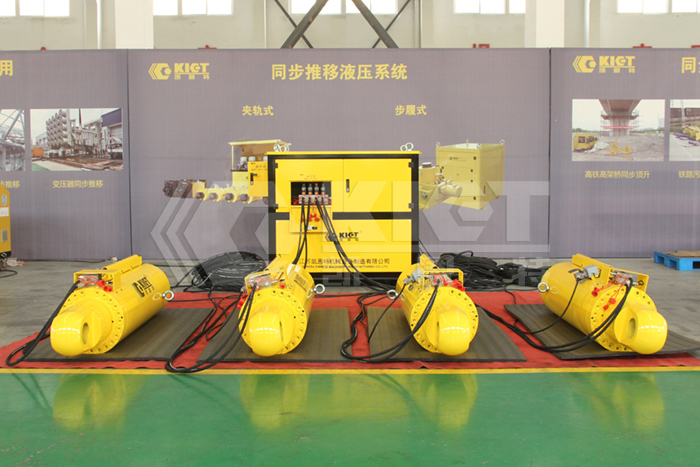

Configuration list of four-point synchronous lifting load positioning system: 1 set of PLC multi-point synchronous lifting load positioning system, 4 units hoisting balance hydraulic cylinders.
Parameters of PLC multi-point synchronous lifting load positioning system:
Model: KET-DBTB-4E
Motor Power: 4.0KW×4
Adjusting Speed: 50mm/min
System Flow: 6.25L/min×4
System Rated Pressure: 28MPa
Synchronization accuracy: ±0.2mm
Oil Tank Capacity: 720L
Parameters of hoisting balance hydraulic cylinders:
Model: KET-PHD-150T-1000
Capacity: 150T
Working Stroke: 1000mm
Total Length: 2366mm
Working Pressure: 28Mpa
