Multi-point Automatic Balancing Positioning Hydraulic System
Request a Quote
We will respond to your inquiry within 8 hours

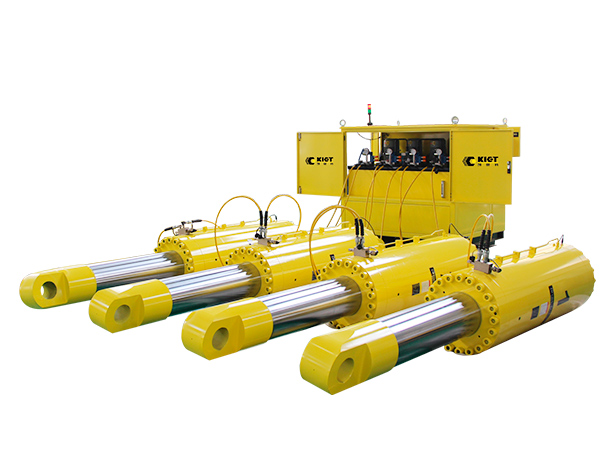

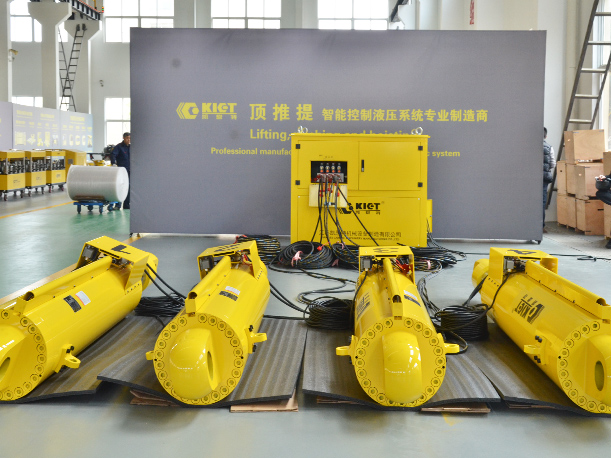

KET-PHDMulti-point Automatic Balancing Positioning Hydraulic System

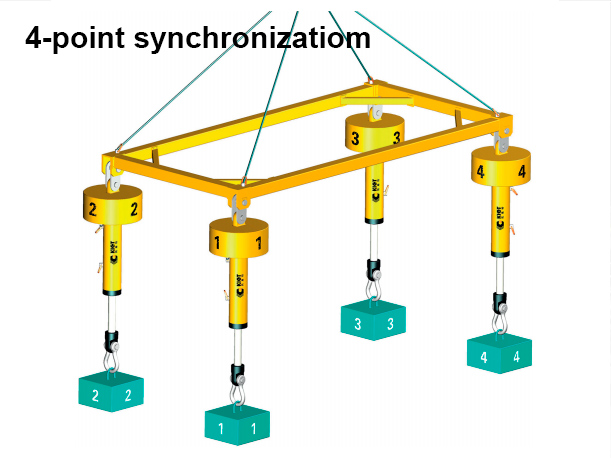

Features: Built-in displacement sensor in the cylinder, high-precision horizontal positioning adjustment.

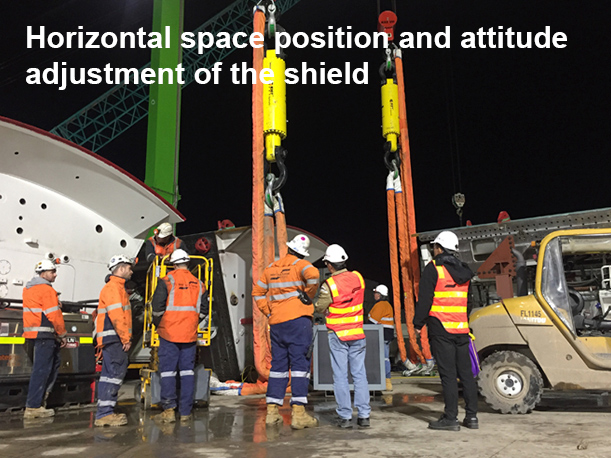

Uses: Used for automatic leveling when the shield machine is hoisted.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry
Multi-point Automatic Balancing Positioning Hydraulic System
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
  • Product Features
  • Function Introduction

  • ● The cylinder has a built-in displacement sensor to achieve high-precision horizontal positioning adjustment

    ● The system can be optionally equipped with a load cell integrated inside the cylinder to achieve high-precision weighing

    ● High-precision load weighing anad center of gravity display

    ● Manual/automatic leveling function,safe, simple, convenient and high-precision control (±1.0mm)

    ● Reduce the risk of damage to the sling due to vibration when the crane starts and stops suddenly

    ● Dramatically increase the speed of operation and the safety of the operator

  • ● Integrated development of control systems

    ● Manual/automatic free switching, convenient for on-site operation, automatic displacement, pressure double closed-loop control

    ● Built-in alarm function: position over-tolerance alarm, pressure over-limit alarm, oil level alarm, oil temperature alarm, etc

    ● The system is equipped with a human-machine interface, and can be equipped with wireless remote control and local operation as an option

    ● Real-time storage of construction data to achieve data traceability

    ● The position of the center of gravity of the load is automatically displayed on the screen

Specs& Dims
Model No. System carrying capacity
(t)		 Level the point Maximum
leveling stroke
(mm)		 Single-point cylinder pull
(t)		 System
traffic
(L/min)		 Maximum operating pressure
(MPa)
KET-PHD-100 400 4 1500 100 6.5×4 31.5
KET-PHD-150 600 4 1500 150 6.5×4 31.5
KET-PHD-200 800 4 1500 200 8.2×4 31.5
KET-PHD-300 1200 4 1500 300 8.2×4 31.5
KIET Tour
Applications
Synchronous hoisting and lifting hydraulic cylinders are used for assembly of the largest shield tunneling machine in Australia
Synchronous hoisting and lifting hydraulic cylinders are used for assembly of the largest shield tunneling machine in Australia
Synchronous hoisting and lifting hydraulic cylinders are used for assembly of the largest shield tunneling machine in Australia
In Melbourne, Australia, with a latitude and longitude of south latitude37 degrees 50 minutesand east longitude144 degrees 58 minutes, the Victoria Labor Party government will invest 5.5 billion Australian dollars on 2nd, April, 2017 to build a West Gate Tunnel undertaken by John Holland company.
Industry Applications：Tunneling Works
Balanced Lifting and Positioning Hydraulic System for Synchronized Lifting and Precise Positioning of Steel Box Girders
Balanced Lifting and Positioning Hydraulic System for Synchronized Lifting and Precise Positioning of Steel Box Girders
Balanced Lifting and Positioning Hydraulic System for Synchronized Lifting and Precise Positioning of Steel Box Girders
Industry Applications：Bridges
Multi-Point Automatic Balancing and Positioning Hydraulic System Used in Jingxiong Expressway Arch Brace Lifting Project
Multi-Point Automatic Balancing and Positioning Hydraulic System Used in Jingxiong Expressway Arch Brace Lifting Project
Multi-Point Automatic Balancing and Positioning Hydraulic System Used in Jingxiong Expressway Arch Brace Lifting Project
The multi-point automatic balancing and positioning hydraulic system was applied in the Jingxiong Expressway project in Beijing. As the most convenient highway connecting Beijing’s central area
Industry Applications：Bridges
