PLC Multi-point Synchronous Hydraulic Lifting System
Request a Quote
We will respond to your inquiry within 8 hours
KET-LDXT/HDXTPLC Multi-point Synchronous Hydraulic Lifting System

Features: Displacement synchronization accuracy ≤± 0.5mm

Uses: It is used in the maintenance and replacement of rubber bearings on highway bridges and overpass lifting, inland bridge lifting, equipment jacking, correction, etc.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry
PLC Multi-point Synchronous Hydraulic Lifting System
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail

PLC Portable Low Pressure Multi-point Synchronous Hydraulic Lifting System

This system uses hydraulic driving, pressure and displacement closed-loop automatic control mode to realize multi-point control, widely used in replacement of highway bridge rubber bearings, overpass lifting, synchronous lifting of inland river bridge, equipment lifting and rectification etc.

PLC Portable High Pressure Multi-point Synchronous Hydraulic Lifting System

Our company draws lessons from latest technology of international similar products, integrates into many years’ experience in hydraulic field, portable synchronous lifting system for bridges is developed successfully.

According to application experience of company’s early hydraulic products in highway and bridge, we get the conclusion that this product is very suitable for maintenance requirements of highway and bridge in our country, filled the blank of domestic similar products.

Specs& Dims

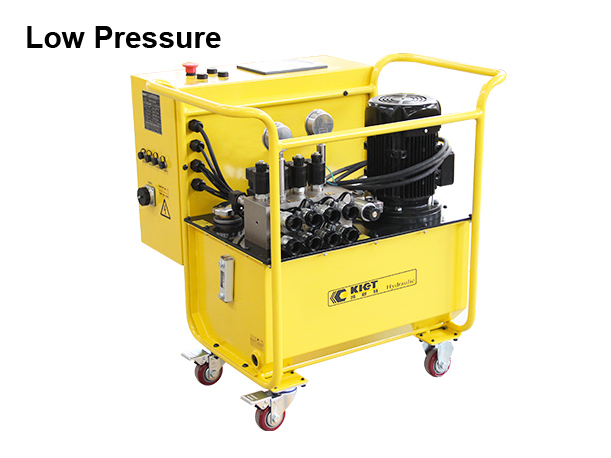

PLC Portable Low Pressure Multi-point Synchronous Hydraulic Lifting System
Model Synchronou Sprecision(mm) Voltage Max.working pressure(M Pa) Operating mode Control model Control points Points Extended
KET-LDXT-4  ≤±0.5 AC380V/50Hz(Three-phase fivelittle system)  35 Button operatingand touch screenoperating Pulse Width- Modulation Four points synchronization Support networkcommunication andpoints extended

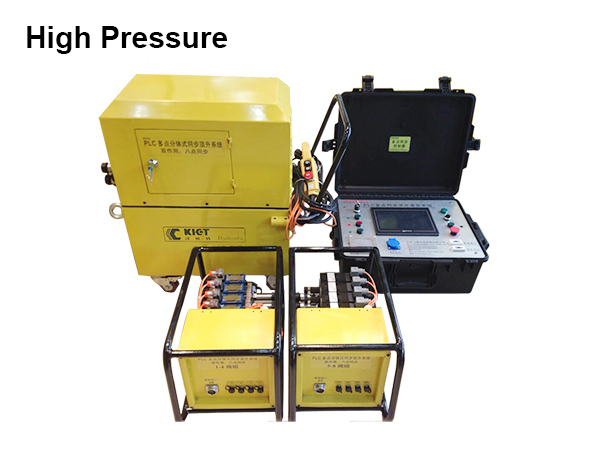

PLC Portable High Pressure Multi-point Synchronous Hydraulic Lifting System
Model SynchronousPrecision(mm) Voltage Max.workingpressure(M Pa) Operatingmode Controlmodel Controlpoints PointsExtended
KET-HDXT-8  ≤±0.5 AC380V/50Hz( Three-phase fivelittle system)  70 Button operatingand touch screenoperating Pulse Width- Modulation Eight points synchronization Support networkcommunication andpoints extended
KIET Tour
Applications
The 24-point synchronous lifting system is used for the lifting project of the 250,000-ton ore unloading terminal
The 24-point synchronous lifting system is used for the lifting project of the 250,000-ton ore unloading terminal
The 24-point synchronous lifting system is used for the lifting project of the 250,000-ton ore unloading terminal
After many on-site inspections and repeated communication with customers, our company has tailored 2 sets of intelligent control synchronous lifting systems for the "250,000-level ore unloading terminal substation lifting project"
Industry Applications：Building

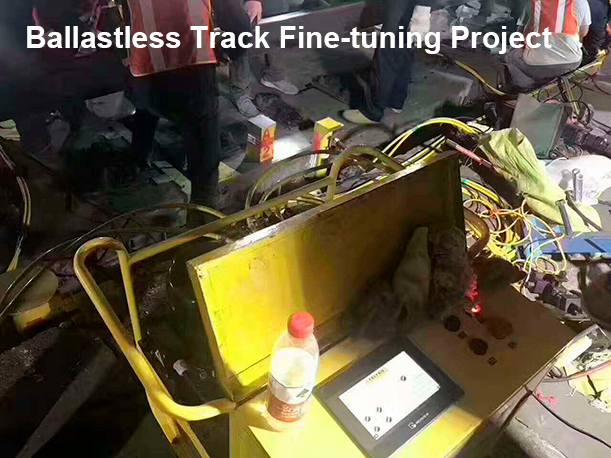

Multi-Point Synchronized Lifting System for High-Speed Railway Slab Track Fine Adjustment Projects
Multi-Point Synchronized Lifting System for High-Speed Railway Slab Track Fine Adjustment Projects
Multi-Point Synchronized Lifting System for High-Speed Railway Slab Track Fine Adjustment Projects
The high-speed railway slab track fine adjustment project utilizes a synchronized lifting system with hydraulic jacks to precisely adjust the height and alignment of slab tracks. By fine-tuning the position and flatness of each slab
Industry Applications：Railway
Synchronous lifting hydraulic system is used for replacing the rubber bearing on site of the basin bearing
Synchronous lifting hydraulic system is used for replacing the rubber bearing on site of the basin bearing
Synchronous lifting hydraulic system is used for replacing the rubber bearing on site of the basin bearing
At the customer's use site, the single-column pier is reinforced, and the temporary support is erected for simultaneous lifting and replacement. The single-column pier top 1250KN-level basin rubber bearing uses our company's synchronous lifting system and jack.
Industry Applications：Bridges
