Features: Equipped with PLC intelligent control synchronous lifting hydraulic system, to ensure that the positioning accuracy of each lifting point can reach ±0.5mm.
Uses: Solve the hoisting balance problem of large heavy objects.
Due to the heavy center of gravity of the shield, conventional lifting methods cannot meet the lifting work. The main focus is to adjust the circumference angle of the shield weighing more than 200 tons on a circumference with a diameter of 15.6 meters to reach the preset position.

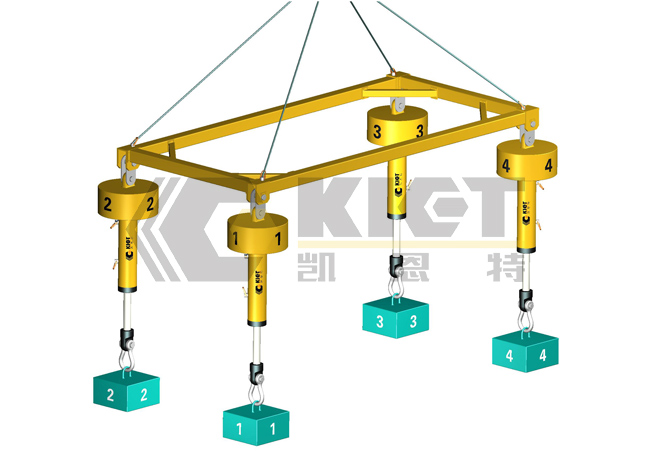

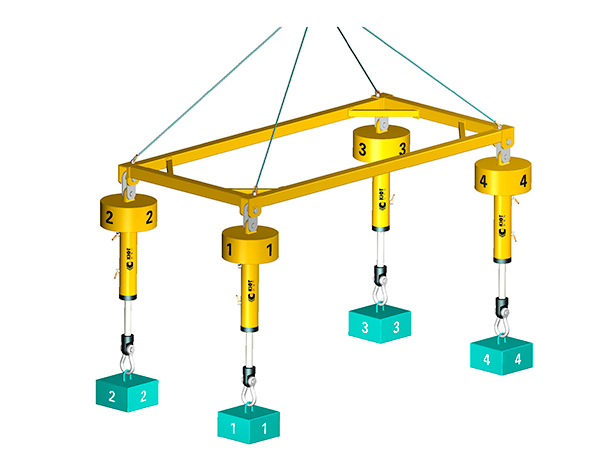

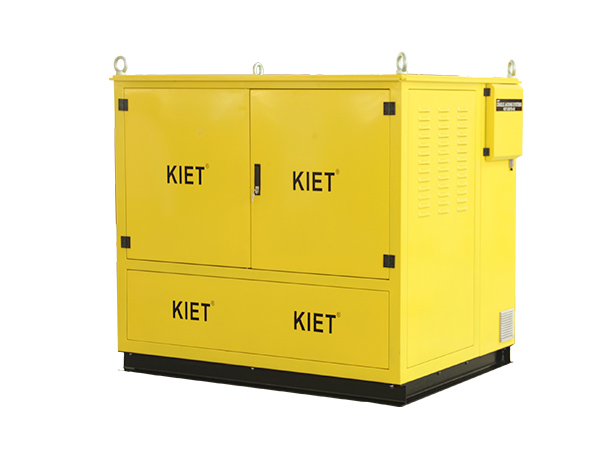

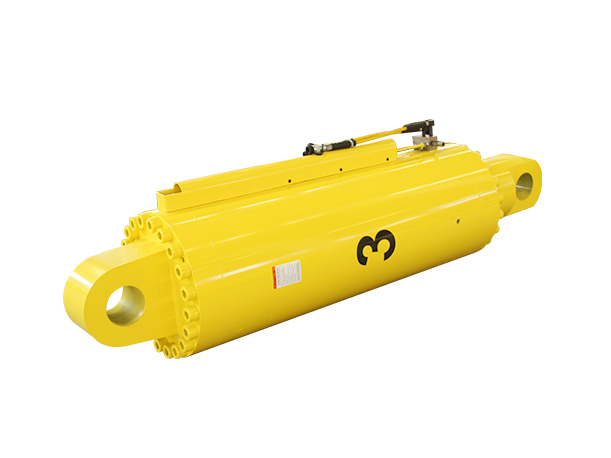

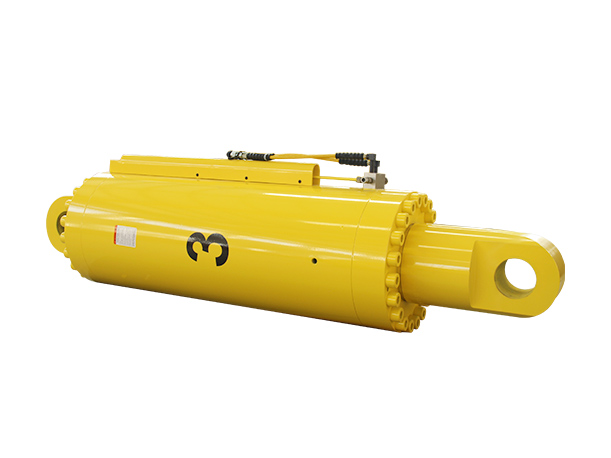

KIET has designed 4 special synchronous lifting hydraulic cylinders with a stroke of 1000mm and a lifting tonnage of 200 tons for it, and equipped with PLC intelligent control synchronous lifting hydraulic system to ensure that the positioning accuracy of each lifting point can reach ±0.5mm. On the basis of solving the problem of off-load center of gravity, it has carried out multi-dimensional attitude adjustments to the full stroke horizontal space position of the hydraulic cylinder to achieve accurate positioning.
| Model | Push (T) | Stroke (mm) | Closing length (mm) | Pressure (MPa) |
| KET-TL-200T-1000 | 200 | 1000 | 2443 | 28 |
