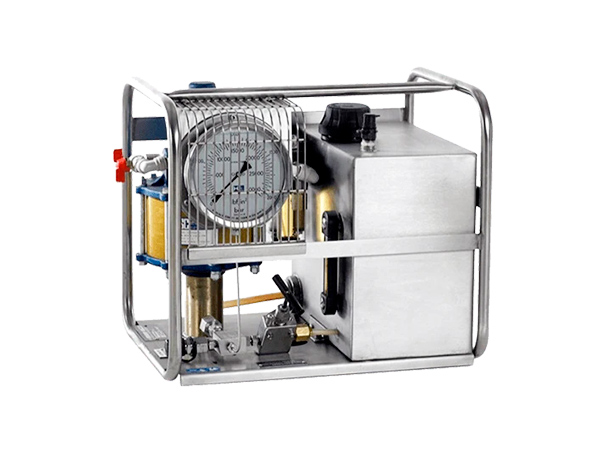

KET-LSBUltra-high Pressure Pneumatic Hydraulic Pump

Features: Made of high-quality stainless steel material, resistant to corrosion.

Uses: Adapt to harsh maritime environments.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry

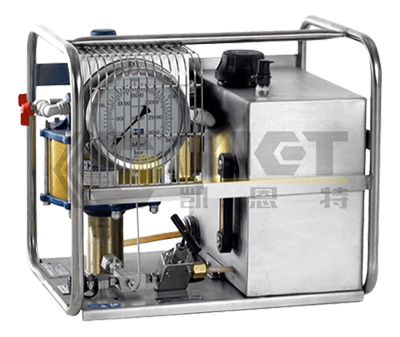

Ultra-high Pressure Pneumatic Hydraulic Pump
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail

In order to adapt to the harsh offshore environment, the high-flow ultra-high pressure pneumatic hydraulic pump was adopted and the stainless steel components were used to modify it. In addition, the tank capacity was doubled to meet the needs of seabed tensioning

Features:
  • Stainless steel construction:Made of high-quality stainless steel material, stainless steel construction is designed to mitigate corrosion caused by the harshest offshore environments.
  • Fast operation:High-flow ultra-high pressure pneumatic hydraulic pumps provide maximum flow to reduce work time and increase work efficiency.
  • Large capacity:The high-flow ultra-high pressure pneumatic hydraulic pump is equipped with a 16-liter fuel tank. This capacity pumping station is capable of running multiple tensioners simultaneously, saving time in installation and removal.
Ultra-high Pressure Pneumatic Hydraulic Pump
Specs& Dims
Model Working Pressure  (MPa) Working flow (L/min) Air source  (bar) Power  (Kw) Tank volume  (L)  Dimensions （mm） Weight (kg)
KET-LSB-200A 200 0.1-3 0.2-0.8 2.8 9 42×42×39 28
KET-LSB-200B 200 0.3-4.5 0.2-0.8 2.8 9 42×42×39 28
KET-LSB-280A 280 0.1-3 0.2-0.8 3.5 9 42×42×39 32
KET-LSB-280B 280 0.3-4.5 0.2-0.8 3.5 9 42×42×39 32
KET-LSB-400A 400 0.1-3 0.2-0.8 5.0 9 45×45×49 40
KET-LSB-400B 400 0.3-4.5 0.2-0.8 5.0 9 45×45×49 40
