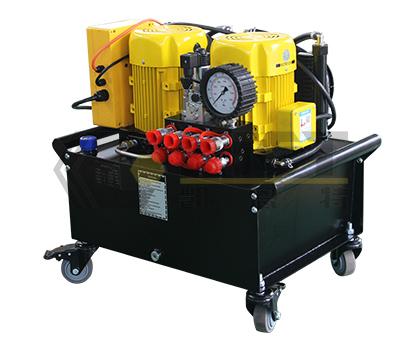

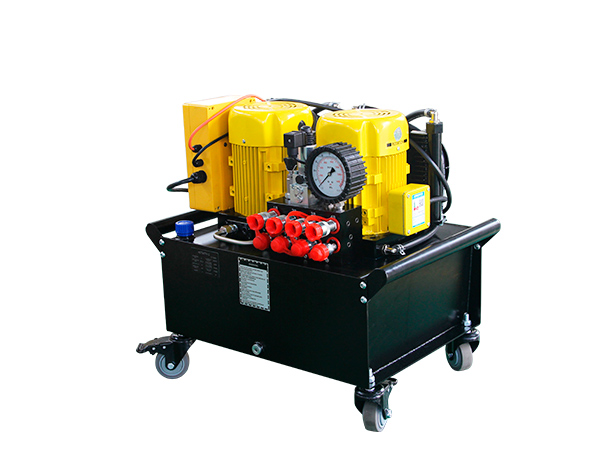

KET-SDWLarge Flow Electric Hydraulic Pump for Hydraulic Torque Wrench

Features: Dual motor design and greater driving power.

Uses: Suitable for high load work with pre-tightening of equipment bolts synchronously.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry
Large Flow Electric Hydraulic Pump for Hydraulic Torque Wrench
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
Features:
  • The pump station adopts a unique dual motor design with higher drive power Faster and more compact
  • Brushless high-power motor, maintenance-free, with longer service life
  • High-performance radiator. The fan starts automatically when the oil temperature reaches 35°C, ensuring long-term uninterrupted work.
  • It can perform four synchronous operations, suitable for high-load work with equipment bolts synchronously preloaded.
  • Roller frame armrest for easy mobility in the field.
Large Flow Electric Hydraulic Pump for Hydraulic Torque Wrench
Specs& Dims
Model Oil Tank Capacity (L) Motor Power (KW) Power Supply Flow (L/min) Workiing Pressure (MPa) Dimensions (mm) Standard Length of Remote Line (m) Weight (kg) Oil Distributir (PC)
KET-SDW-2 20 1.1×2 220V/50Hz single phase 16L(0-6.5MPa)  3.6L(6.5-32MPa) 1.7L(32-70MPa) 70 400×350×400 6 45 2
KET-SDY-2 20 1.1×2 2220V/50Hz single phase 16L(0-6.5MPa)  3.6L(6.5-32MPa) 1.7L(32-70MPa) 70 400×350×400 6 45 2
KET-SDW-4 20 1.1×2 220V/50Hz single phase 16L(0-6.5MPa)  3.6L(6.5-32MPa) 1.7L(32-70MPa) 70 400×350×400 6 45 4
KET-SDY-4 20 1.1×2 220V/50Hz single phase 16L(0-6.5MPa)  3.6L(6.5-32MPa) 1.7L(32-70MPa) 70 400×350×400 6 45 4
