Product Detail

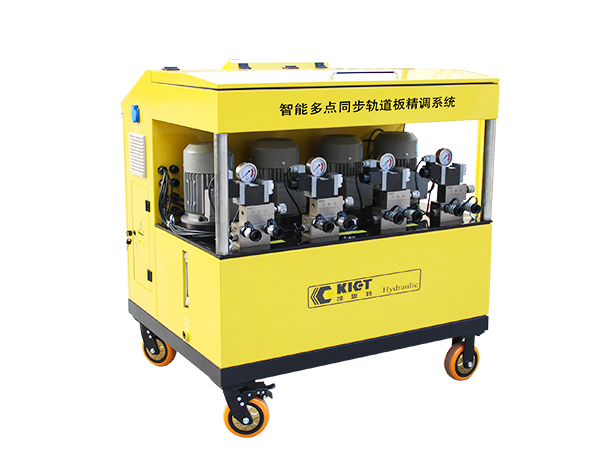

The Synchronous Track Plate Adjustment Hydraulic Pump Systemis a cutting-edge solution designed for precision adjustment of ballastless track plates in confined rail environments. Leveraging advanced hydraulic drive, pressure control, and closed-loop displacement automation, this system ensures synchronous and accurate elevation of track plates. It is engineered to precisely adjust the height and alignment of track plate bearing platforms, enabling exact positioning of bolt holes for seamless track assembly.

Features of Synchronous Track Plate Adjustment Hydraulic Pump System：

Precision Synchronization: Utilizes hydraulic drive and displacement closed-loop control to achieve synchronized lifting of multiple track plates with pinpoint accuracy.
Compact Design: Optimized for narrow rail spaces, ensuring efficient operation in constrained environments.
Variable Frequency Control: Employs a variable frequency drive (VFD) to regulate oil pump motor speed, allowing continuous and precise adjustment of hydraulic flow.

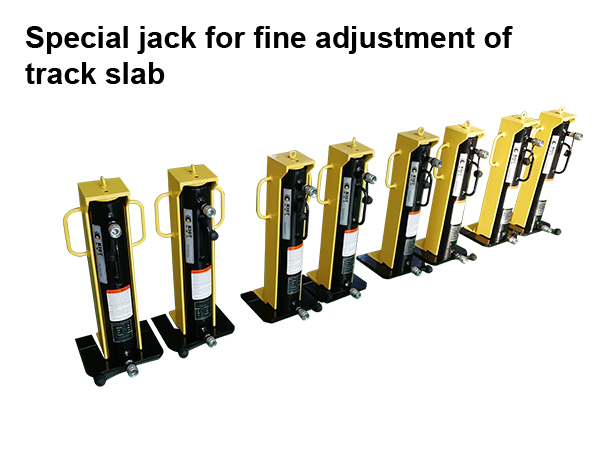

Automated Adjustment: Integrates advanced electronic control and detection systems to precisely manage jack lifting speed and stroke, ensuring flawless track plate alignment.
High Reliability: Robust construction and intelligent control systems ensure consistent performance under demanding conditions.

Specs& Dims

Model	Structure	Synchronization Accuracy (mm)	Power Supply Voltage (AC/V)	Working Pressure (MPa)	Flow Rate (L/min)
KET-D8TB-4D	Double-acting, Multi-point Synchronous	≤0.5	380V/50HZ	31.5	1L/min*4 units

KIET Tour

Applications

Multi-Point Synchronized Lifting System for High-Speed Railway Slab Track Fine Adjustment Projects

The high-speed railway slab track fine adjustment project utilizes a synchronized lifting system with hydraulic jacks to precisely adjust the height and alignment of slab tracks. By fine-tuning the position and flatness of each slab

Industry Applications：Railway

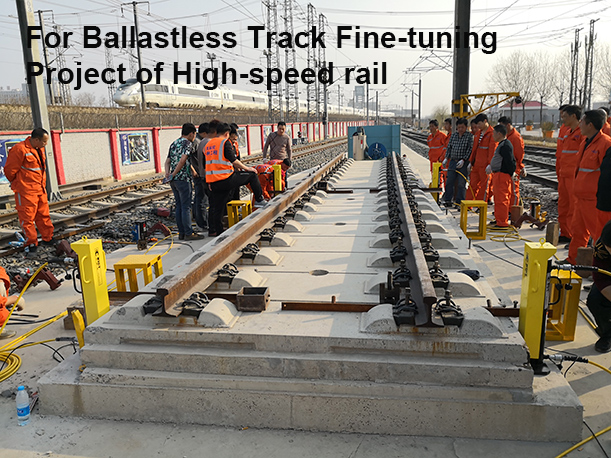

Four-Point Variable Frequency Control Synchronous Lifting Hydraulic System for High-Speed Rail Ballastless Track Precision Adjustment Projects

In High-Speed Rail Ballastless Track Precision Adjustment Projects, the precision adjustment of track slabs is achieved by adjusting their height and planar status using a synchronous lifting system and hydraulic jacks.

Industry Applications：Railway
