The three-dimensional lifting system adopts a split structure, with a low body height and an ultra-small volume, making it suitable for situations where operations are restricted. The online synchronous control is achieved through the three-dimensional equipment control system. This equipment is a specialized tool product mainly designed and developed for the precise translation and three-dimensional spatial position adjustment of large loads. Through the intelligent control of the hydraulic system, it can achieve heavy-load translation, synchronous lifting, and synchronous lowering, enabling precise position adjustment of the load in three dimensions and six directions.

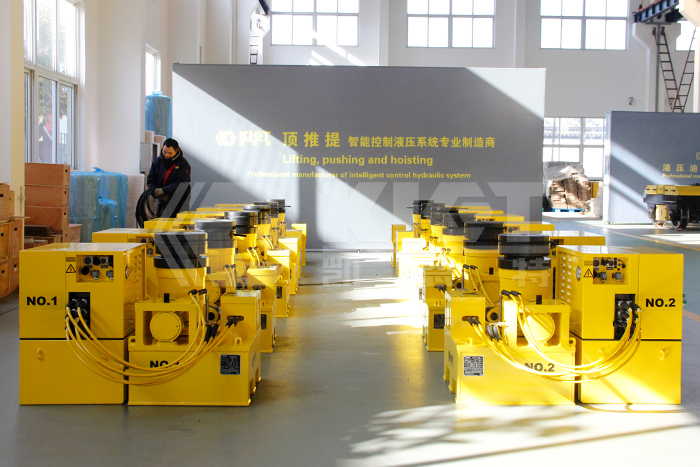

Parameters of KET-TZJ-180 Three-dimensional lifting system:
Load Capacity: 180T
Z-direction adjustment range (Vertical adjustment direction): 0-200mm
X-direction adjustment range (Horizontal adjustment direction): 0-40mm
Y-direction adjustment range (Horizontal adjustment direction): 0-40mm
Deflection angle of the Z-direction vertical cylinder: 5°
Height: 900mm
Width: 660mm
Length: 1200mm
Weight: ≤0.9T
Lifting Pump Flow: ≥1L/min
Power Supply: Three-phase 380V±10% AC /50Hz
Electronic Control Protection Grade: IP55

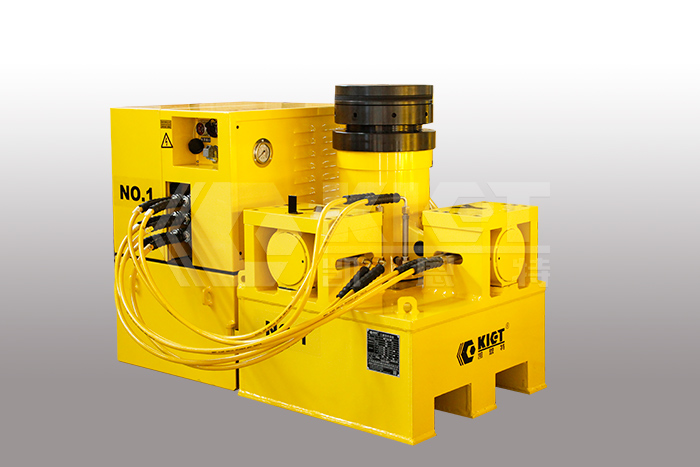

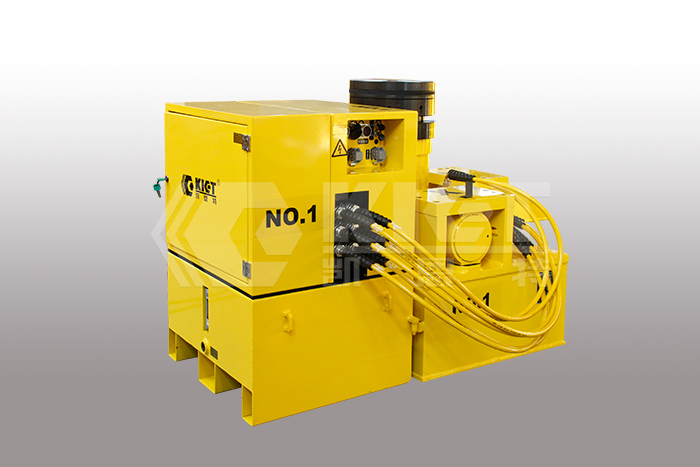

The main lifting mechanism, the level adjustment mechanism and the hydraulic station of the lifting system：
After the equipment is lifted and adjusted to the correct position, the lock nut can be rotated clockwise to contact the cylinder body and the equipment can maintain the load lifting height for a long time.
The horizontal device can achieve translation actions in the X/Y direction.

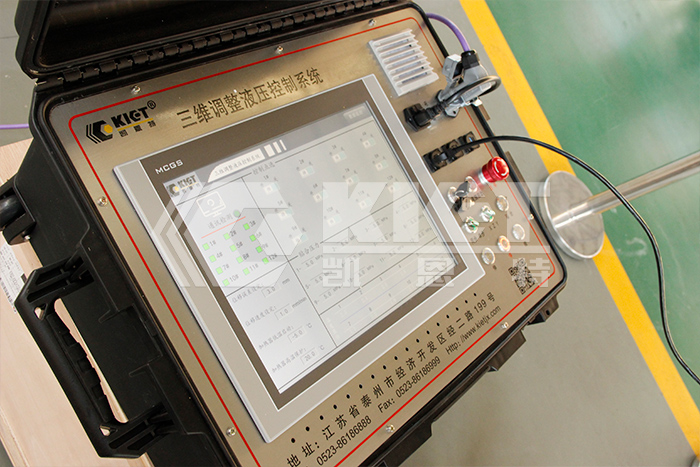

Main Control System:
It is integrated with a human-machine interface and can display the current action data and related alarm information in real time.

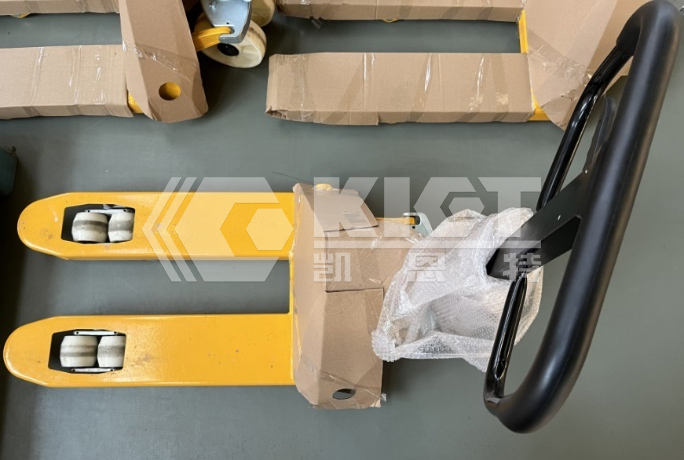

Equipment Transfer Trolley:
Due to the limited space on site, forklift operations are difficult to carry out. Therefore, this type of small manual transfer trolley is equipped for each set of equipment, which is convenient and fast for transfer.
