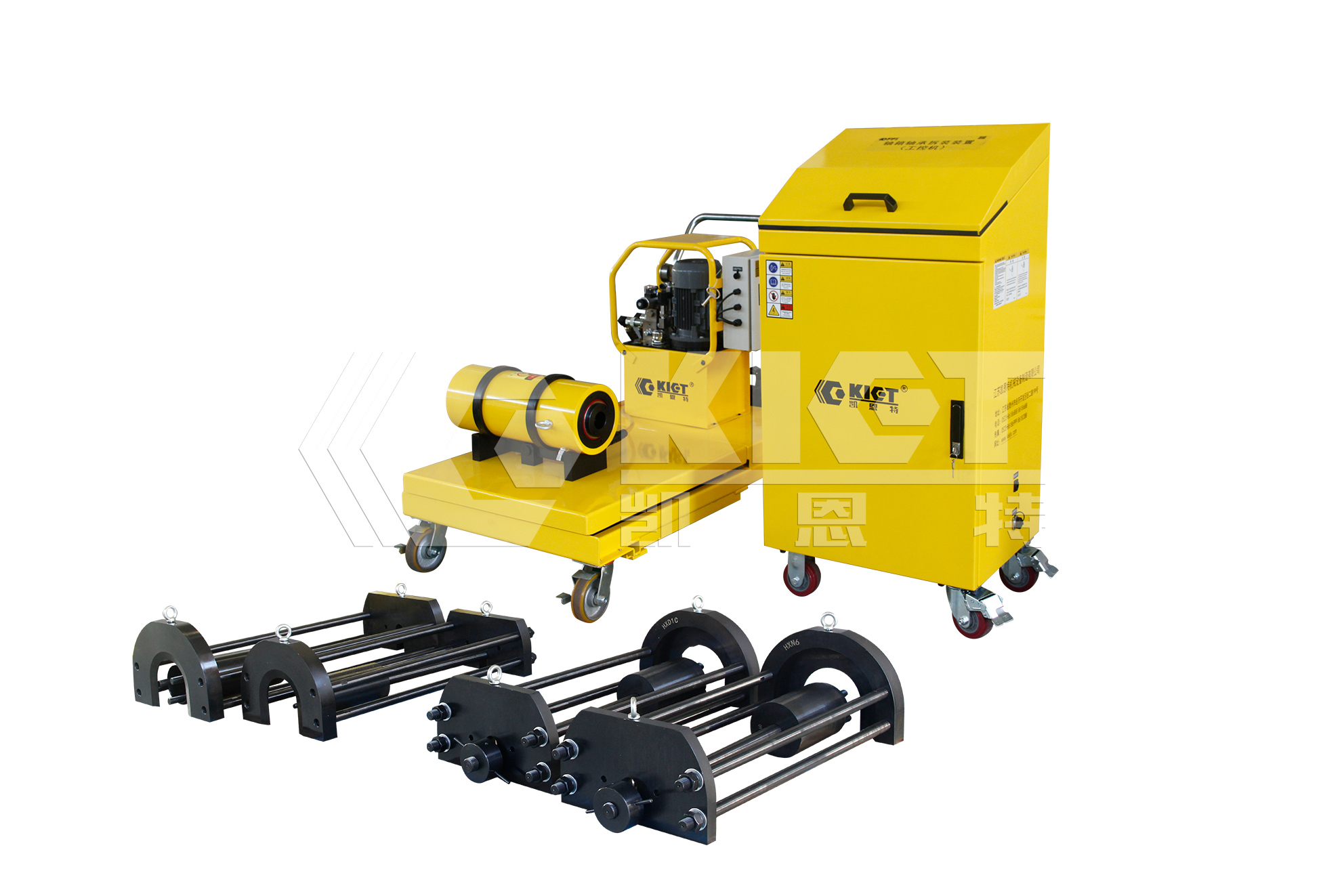

The axle box bearing disassembly and assembly device is a special tool for disassembling axle box bearings. This device consists of an axle box bearing disassembly and assembly device (industrial computer), a disassembly puller (with an adjustable lifting platform), and a disassembly tooling (consisting of a device body, a pressure seat, and a piston).
Parameters of Axle box bearing disassembly and assembly device
Working Pressure: 70Mpa
Cylinder Pushing Force: 1011KN
Working Stroke: 310mm
Motor Power: 1.1KW
Center Hole Diameter: 50mm
Power Supply: 3AC 380V 50Hz
Working Flow: 1L/min
Oil Tank Capacity: 16L
Displacement Sensor Range: 0-1000mm
Pressure Sensor Range: 0- 70MPa
