3D Hydraulic Adjustment Equipment- Block Lifter_Hydraulic Pushing Systems_Jiangsu Canete Machinery Manufacturing Co., Ltd.

Product Detail

Single lifting capacity: 100-600T;
Vertical adjustment range: 0-250 mm;
Horizontal adjustment range: 0-150 mm;
Common quantity used: 4 pcs;
Operation method: wire-controlled handle (standard), the console (optional);
Transportation: self-powered walking (hydraulic motor), crane lifting (with hooks), forklift trucking (with a shovel hole).

Features of 3D Hydraulic Adjustment Equipment- Block Lifter：

Specially designed for the hull segment closure three-dimensional adjustment of positioning, hull segmentation can be precisely positioned in three dimensions, six directions; 70Mpa hydraulic design makes the overall light weight, small size;
“Motro-electro-hydraulic” integrated design; through the device standard wire-controlled handle all the actions of sub-adjustment, remote control handle with continuous operation and jog operation characteristics can be completed, can also be linked to achieve the total control console 4 or more Taiwan linkage operation segment positioning;
In addition to the “hydraulic lock” and “lift valve group” at the moment of security, the equipment standard “mechanical lock” mechanical nut can provide hull segment, equipment and personnel of the reliable security;
Equipment standard hydraulic motor comes with power walking, equipment walking wheel hydraulic lift, front and rear drive are set by the handle on the button control, a single person can easily walk and place equipment, and set the lifting point and shovel teeth Holes for easy door crane and forklift transport;
The device can be tilted at the top of the device anti-bias force saddle 5 degrees, effective at the bottom of the uneven section to adapt to the phenomenon of standard steel tray; Equipment internal pipeline clear, tidy, the main pump station with rails design, can facilitate routine maintenance and inspection work; Modular design concept: master pump station, electrical control box, carrying jacks are fast connections between each other, easy to repair, replacement and upgrades.

Specs& Dims

Model	Capacity	Working Pressure	Vertical Adjustment Range	Horizontal Adjustment Range	Tilt Angle	Weight
Model	（T）	（MPa）	（mm）	（mm）		（T）
KET-TZJ-50	50	70	250	150	5	2
KET-TZJ-100	100	70	250	150	5	2.3
KET-TZJ-200	200	70	250	150	5	2.8
KET-TZJ-300	300	70	250	150	5	3.4
KET-TZJ-400	400	70	250	150	5	4.0
KET-TZJ-500	500	70	250	150	5	4.6
KET-TZJ-600	600	70	250	150	5	5.8

KIET Tour

Applications

Full-automatic three-dimensional hydraulic adjusting equipment used for ship section closing technique Full-automatic-three-dimensional-hydraulic-adjusting-equipment-used-for-ship-se-42 Full-automatic

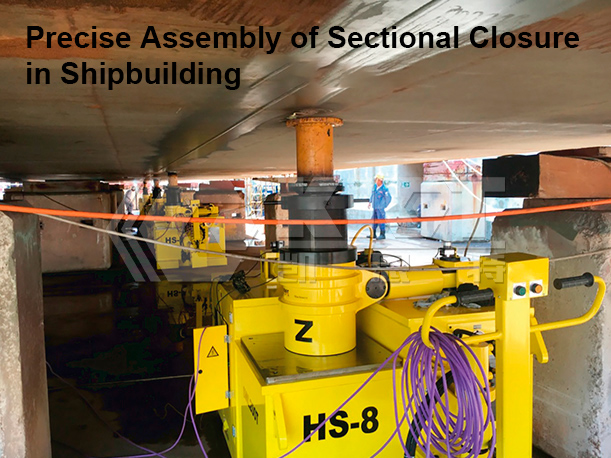

The ship’s sectional closing process is a common technology in the modern shipbuilding industry. The sectional assembly welding process can be used to build each section in parallel, thereby shortening the shipbuilding cycle and improving production efficiency.

Industry Applications：Shipbuilding

Fully Automatic 3D Adjustment Hydraulic Equipment Used for 4,500-Ton Chemical Tanker Lifting at Shipyard

Fully Automatic 3D Adjustment Hydraulic Equipment for Hull Lifting and Block Assembly

Industry Applications：Shipbuilding

Successful Delivery and Service of 8 Sets of Fully Automatic 3D Adjustment Hydraulic Equipment Ordered by Singapore SembCorp Marine

After ordering four sets of fully automated three-dimensional hydraulic equipment in March, 2016, Tanjong Kling Shipyard, a subsidiary of Singapore SembCorp Marine

Industry Applications：Shipbuilding
