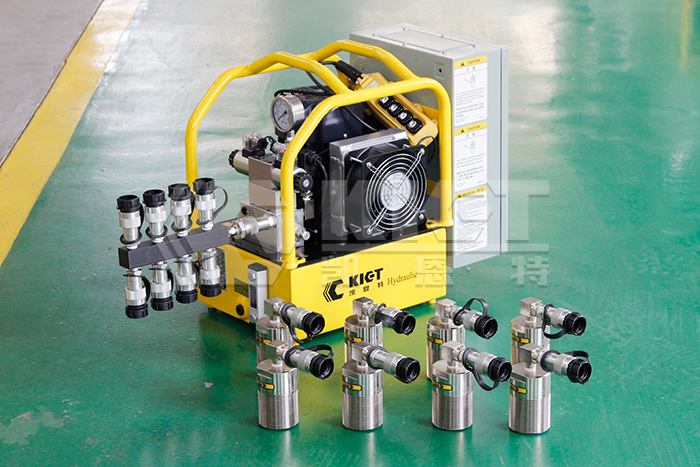

One drive eight configuration scheme of 12T single acting hydraulic cylinder

This configuration includes 8 units 12T single acting hydraulic cylinders, 1 unit electric pump with solenoid valve(integrated with a one-to-eight distribution valve) and 8pcs hydraulic hoses.

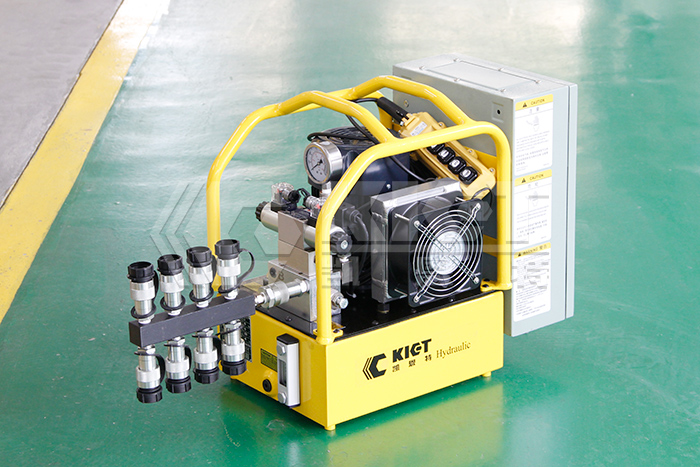

1 unit 0.55KW electric hydraulic pump with solenoid valve (integrated with a one-to-eight distribution valve)

Electric pump parameters:

Working Pressure: 70Mpa

Rated Flow: 0.4L/min

Oil Tank Capacity: 10L

Motor Power: 0.55kw

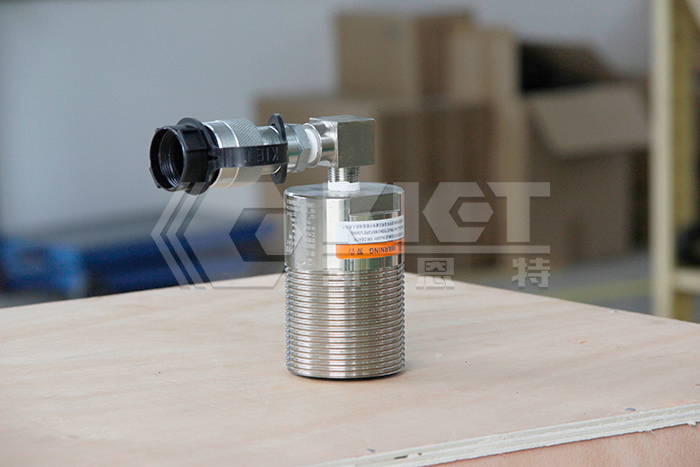

12T single acting hydraulic cylinder

Parameters of single acting hydraulic cylinder:

Closed Height: 98mm

Working Stroke: 17mm

Working Pressure: 60Mpa

Working Capacity: 124.9KN
