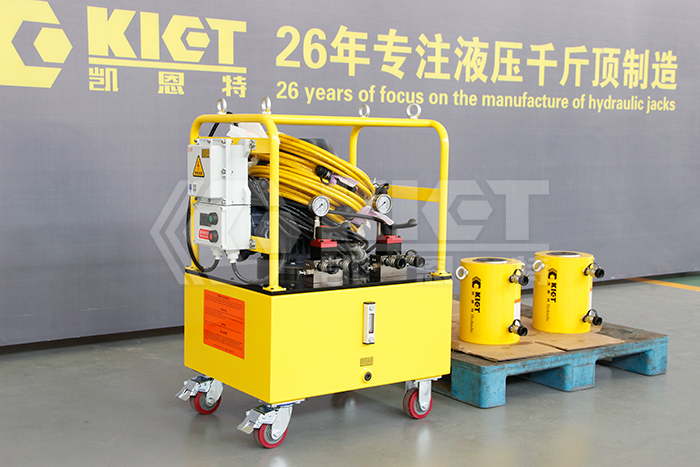

This configuration includes 1 unit explosion-proof motor dual-circuit electric hydraulic pump, 2 units double acting hydraulic cylinders and 4pcs hydraulic hoses.
Parameters of the dual-circuit electric hydraulic pump (hydraulic station):
Model: EMTIF200
Flow@low pressure: 10L/min
Flow@high pressure: 3.0L/min
Supply Voltage: 380V/50Hz
Motor Power: 5KW
Output Pressure: 70MPa
Oil Tank Capacity: 110L
Parameters of single acting hydraulic cylinder:
Model: KET-CLRG-2006
Max. Pushing Force: 1980KN
Max. Pulling Force: 980KN
Working Stroke: 150mm
Closed Height: 312mm
Working Pressure: 70Mpa
