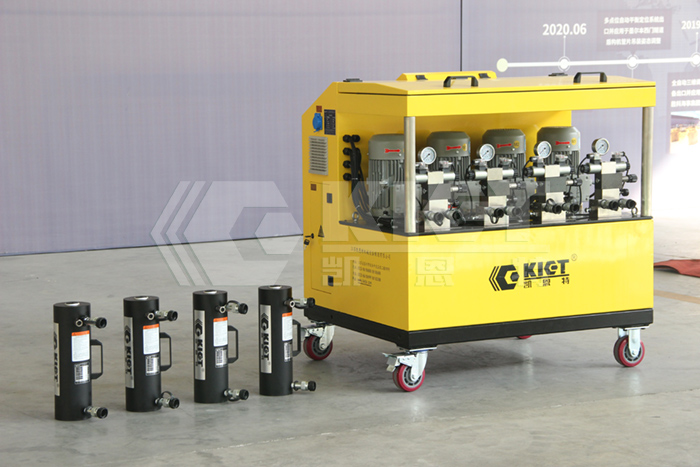

This configuration includes one set of PLC multi-point synchronous lifting system and four units 30T double acting aluminum hydraulic cylinders.
Parameters of PLC multi-point synchronous lifting system:
Model: KET-DBTB-4A
Equipment Power: 5KW
Precision: ±0.3mm
System Rated Pressure: 70Mpa
Motor Power: 1.1KW*4
Parameters of double acting aluminum hydraulic cylinders:
Capacity: 30T
Stroke: 250mm
Closed Height: 401mm
Working Pressure: 70Mpa
