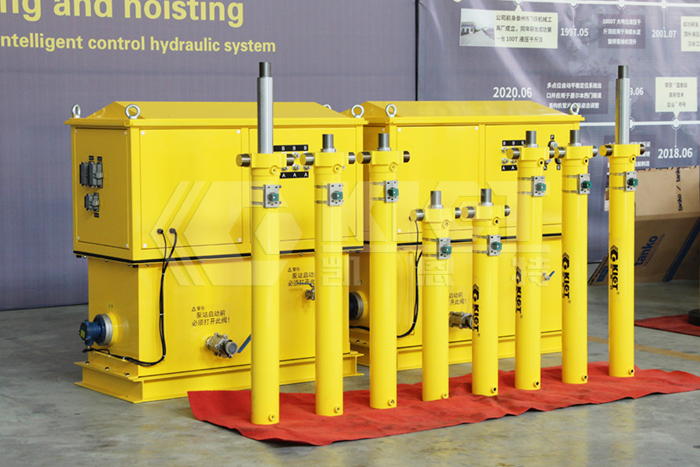

This configuration includes 2 sets of PLC thickener hydraulic systems and 8 units 16T double acting lifting hydraulic cylinders.
Parameters of PLC thickener hydraulic system:
Model: JD-DBTB-300-1100
Lifting System Pressure: 20Mpa
Lifting System Flow: 6.5L/min
Lifting System Power: 3KW 380V 50Hz
Walking System Pressure: 6.3Mpa
Walking System Flow: 82L/min
Walking System Power: 11KW 380V 50Hz
Oil Tank Capacity: 120L
Parameters of the No. 1 double acting lifting hydraulic cylinder:
Max. Capacity: 16T
Stroke: 910mm
Total Length: 1384mm
Working Pressure: 20Mpa
Installation Height: 327.5mm
Parameters of the No. 2 double acting lifting hydraulic cylinder:
Max. Capacity: 16T
Stroke: 660mm
Total Length: 906mm
Working Pressure: 20Mpa
Installation Height: 100mm
