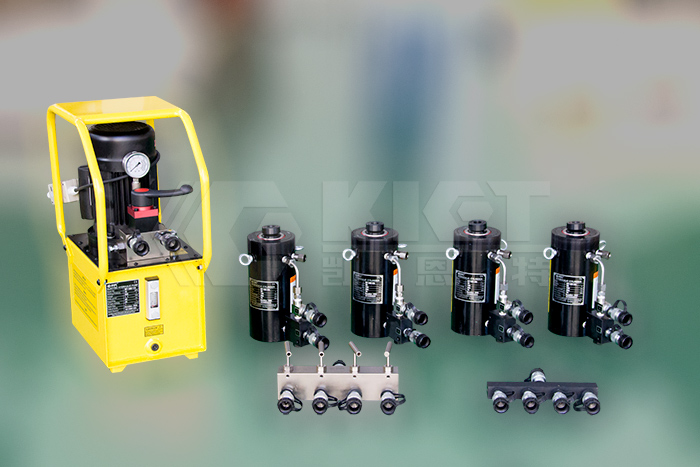

One drive four configuration scheme of KET-HCR high tonnage hydraulic cylinder

This configuration includes 4 units HCR high tonnage hydraulic cylinders, 1 unit electric hydraulic pump, 1pc throttling valve, 1pc distribution valve and 10pcs hydraulic hoses.

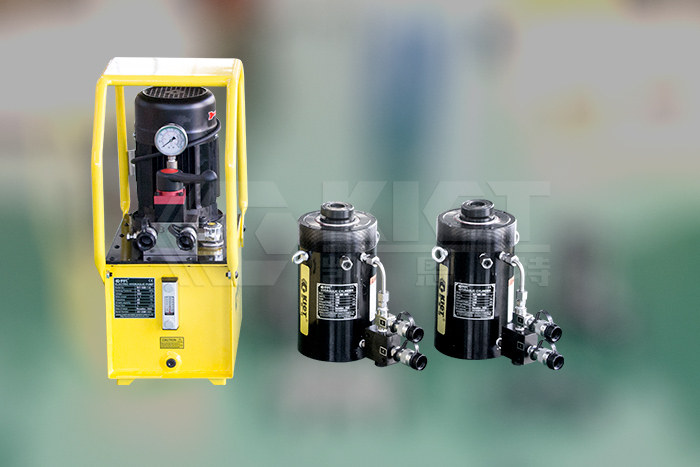

One drive two configuration scheme of KET-HCR high tonnage hydraulic cylinder

This configuration includes 2 units HCR high tonnage hydraulic cylinders, 1 unit electric hydraulic pump, 1pc throttling valve, 1pc distribution valve and 6pcs hydraulic hoses.

Parameters of 100T HCR high tonnage hydraulic cylinder:

Model: HCR-1006

Capacity: 100T

Stroke: 150mm

Closed Height: 330mm

Working Pressure: 70Mpa

Parameters of 50T HCR high tonnage hydraulic cylinder:

Model: HCR-506

Capacity: 50T

Stroke: 150mm

Closed Height: 306mm

Working Pressure: 70Mpa

Parameters of electric hydraulic pump:

Model: KET-SSB-110

Working Pressure: 70Mpa

Motor Power: 1.1KW

Oil Tank Capacity: 20L

Flow: 1L/min
