Professional supplier of synchronous hydraulic lifting system, synchronous pushing, synchronous hoisting, synchronous conveyor vehicle, hydraulic cylinder, hydraulic jacks.

  • Mechanical Smoothing Wheel Skateboard
Mechanical Smoothing Wheel Skateboard
Request a Quote
We will respond to your inquiry within 8 hours

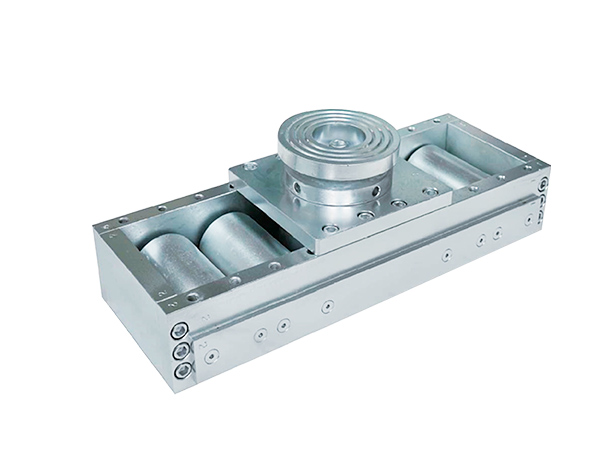

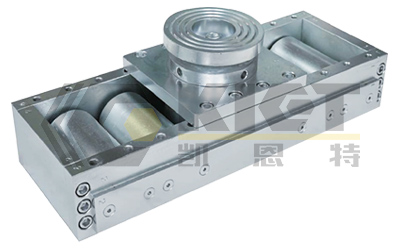

KET-MSKMechanical Smoothing Wheel Skateboard

Features: Low resistance roller, easy to move.

Uses: Heavy objects transport and transfer.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry
Mechanical Smoothing Wheel Skateboard
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail

Features:

  • MSK series skateboards are rugged and durable, with a strong construction and long life;
  • Low construction for enhanced stability;
  • Low rolling resistance for easy transportation.

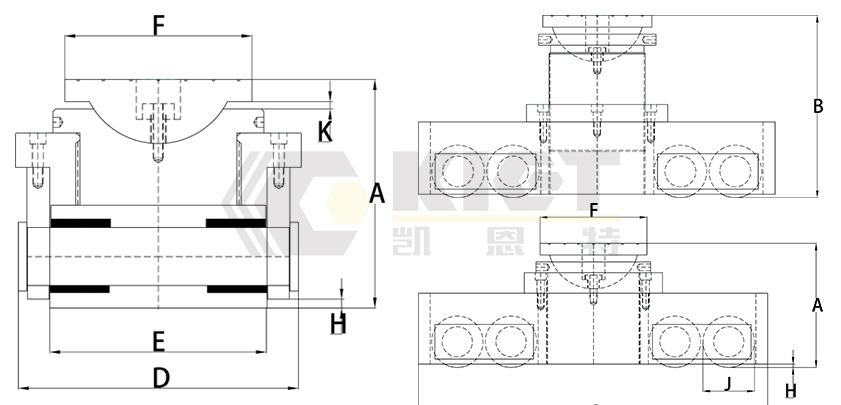

Specs& Dims
Spec Capcity(KN) Stroke (mm) Height A（mm） Extended height B（mm） Length C（mm） Width D（mm） Roller width E（mm） saddle diameter F（mm） TipH（mm） Roller dia J（mm） Height K（mm）
KET-MSK-204 20 100 202 302 410 160 95 100 7 60 10
KET-MSK-206 20 150 252 402 410 160 95 100 7 60 10
KET-MSK-404 40 100 207 307 465 175 110 115 7 70 10
KET-MSK-406 40 150 257 407 465 175 110 115 7 70 10
KET-MSK-604 60 100 219 319 524 195 125 130 7 80 10
KET-MSK-606 60 150 269 419 524 195 125 130 7 80 10
KET-MSK-804 80 100 227 327 570 220 145 150 7 85 10
KET-MSK-806 80 150 277 427 570 220 145 150 7 85 10
KET-MSK-1004 100 100 239 339 605 235 160 165 7 90 10
KET-MSK-1006 100 150 289 439 605 235 160 165 7 90 10
KET-MSK-1254 125 100 235 335 685 255 180 185 10 105 10
KET-MSK-1256 125 150 285 435 685 255 180 185 10 105 10
KET-MSK-1504 150 100 245 345 720 270 195 200 10 110 10
KET-MSK-1506 150 150 295 445 720 270 195 200 10 110 10
KET-MSK-2004 200 100 260 360 800 310 230 235 10 120 10
KET-MSK-2006 200 150 310 460 800 310 230 235 10 120 10
KET-MSK-2505 250 125 290 415 870 340 255 260 10 130 10
KET-MSK-2507 250 175 340 515 870 340 255 260 10 130 10
KET-MSK-3005 300 125 300 425 945 375 280 285 10 140 10
KET-MSK-3007 300 175 350 525 945 375 280 285 10 140 10
KET-MSK-4006 400 150 350 500 1040 430 325 330 10 150 15
KET-MSK-4008 400 200 400 600 1040 430 325 330 10 150 15
KET-MSK-5006 500 150 380 530 1120 480 355 360 10 160 15
KET-MSK-5008 500 200 430 630 1120 480 355 360 10 160 15
KIET Tour
Applications
Intelligent Heavy-Duty Transfer Trolley for Overall Transportation of Vessels
Intelligent Heavy-Duty Transfer Trolley for Overall Transportation of Vessels
Intelligent Heavy-Duty Transfer Trolley for Overall Transportation of Vessels
The intelligent heavy-duty transfer trolley consists of hydraulic trolleys and a control system. The hydraulic lifting system can be controlled and operated individually, or with multi-linkage and synchronous control, and is commonly used for the overall transportation of vessels.
Industry Applications：Shipbuilding
Three-dimensional Adjustment Hydraulic Trolley
Three-dimensional Adjustment Hydraulic Trolley
Three-dimensional Adjustment Hydraulic Trolley
This three-dimensional adjustment system uses beam transport trolley to realize the load-lifting of bridge structure.
Industry Applications：Bridges
