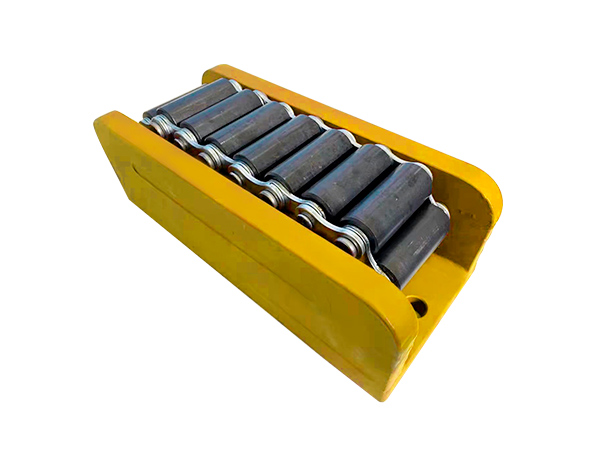

KET-OTHeavy-duty Transfer Roller Trolley

Features: The whole row of steel rollers is used to bear pressure, resist wear, and have better stability.

Uses: Heavy loading, transfer.

Heavy-duty Transfer Roller Trolley
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail

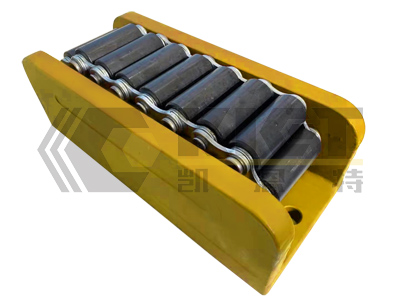

Features of Heavy-Duty Transfer Roller Trolley:

Heavy-Duty Transfer Roller Trolley can meet the requirement of special occasions and it is suitable for handling work on flat solid ground. Channel steel, I-beam, and rail can be used as the walking track, and the side guide device can be optionally installed, which is mainly used for walking in a straight line.Channel steel, I-beam, and rail can be used as the walking track, and the side guide device can be optionally installed, which is mainly used for straight walking. If the customer has demand, the heavy object shifter and its track for arc walking can be customized.

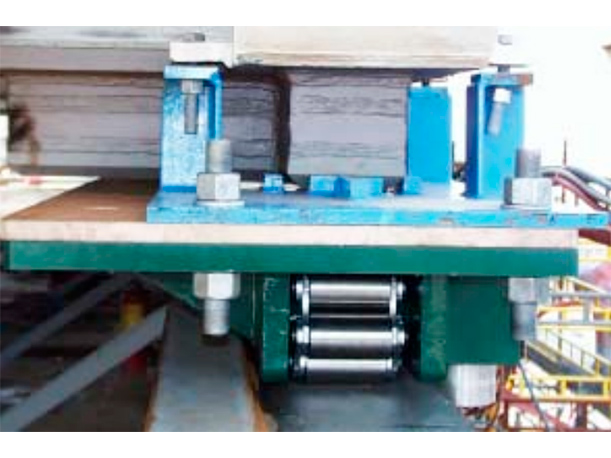

Scope of application: Mainly used in bridge construction, pressure vessel, steam drum transfer in power plant, enameled wire transfer, heavy machinery, caisson transfer, box girder translation, power construction, oil field equipment transfer, offshore platform cantilever beam sliding and other industries.

Specs& Dims

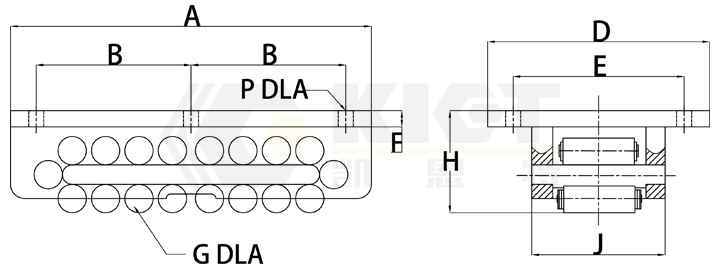

Model Capacity (T) A B C D E F G H I J P Number of Rollers Weight (kg)
KET-OT-5 5 203 83 19 203 171 10 24 79 84 135 14 4 10
KET-OT-10 10 228 83 31 203 171 12 24 81 84 139 14 6 11
KET-OT-20 20 270 94 41 254 216 16 30 98 67 130 17 6 22
KET-OT-37.5 37.5 381 140 51 305 267 19 41 140 88 184 21 6 55
KET-OT-50 50 470 140 95 356 267 19 41 140 88 184 21 8 67
KET-OT-75 75 533 235 32 356 292 25 171 171 92 200 27 7 109
KET-OT-100 100 633 235 - 356 292 25 171 171 92 200 27 9 120
KET-OT-150 150 813 114 - 356 292 25 171 171 92 200 27 11 181
KET-OT-200 200 914 419 - 356 292 25 171 171 92 200 33 14 210
KET-OT-300 300 864 362 - 762 445 38 254 254 127 273 40 8 401
KET-OT-500 500 864 362 - 953 635 38 254 254 127 508 40 16 674
KET-OT-750 750 864 362 - 953 826 38 254 254 127 699 40 24 927
