This three-dimensional adjustment system uses beam transport trolley to realize the load-lifting of bridge structure. It uses hydraulic cylinders to realize overall lifting and lowering of the structure, and realizes rotation of a small stroke, ensuring the position adjustment in the X/Y/Z direction. It is widely used in industries such as beams, ships, large steel structures and heavy-duty objects.

———— System Composition ————

The three - dimensional adjusting hydraulic trolley is composed of one main control system and four hydraulic pump stations.

———— System Advantages ————

• 01 Safe
• Main controller adopts Siemens S7-200 smart
• Solenoid valve is imported control element and high-quality brand solenoid valve
• They strongly ensure the stability and safety of the system

02 Simple

The simple button operation panel enables the execution of the system to be set and controlled on the main control cabinet, making the operation of the system easier and safer.

03 Reliable

4 PCS of hydraulic pump stations are used as energy output, and the equipment runs stably and reliably.

———— Construction Site ————

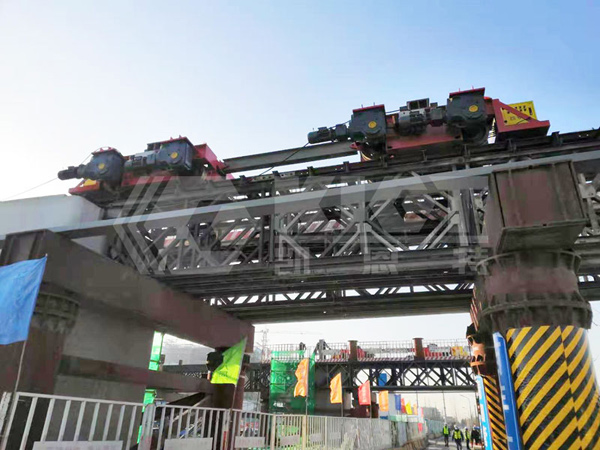

A set of 4 three-dimensional adjustment hydraulic trolleys to be placed on predetermined track

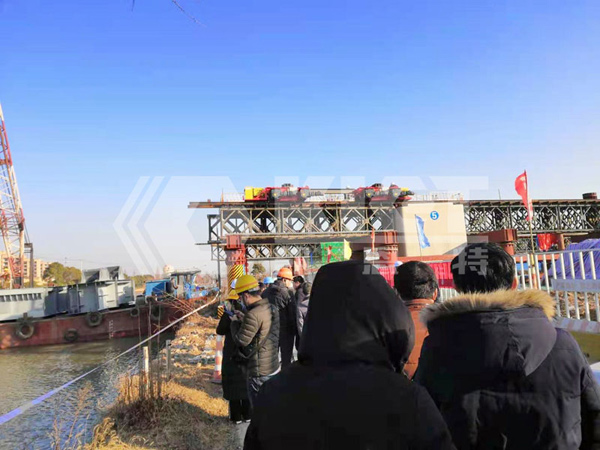

Steel box girder transported nearby

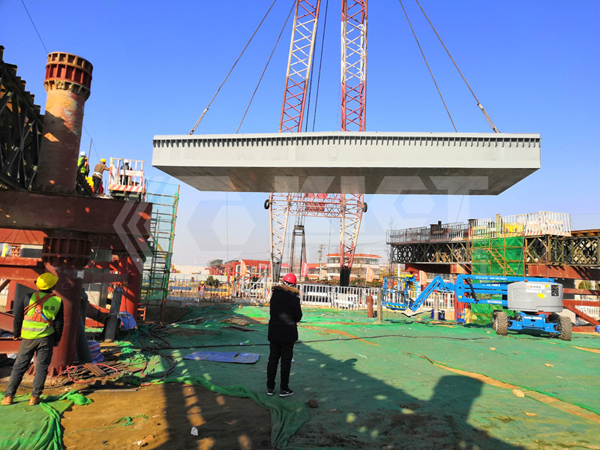

Heavy lifting equipment hoisting steel box girder

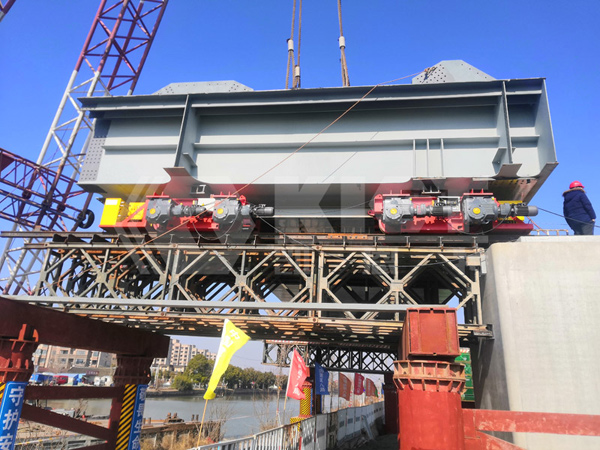

Steel box beams are placed on top of 4 three-dimensional adjustment hydraulic trolleys

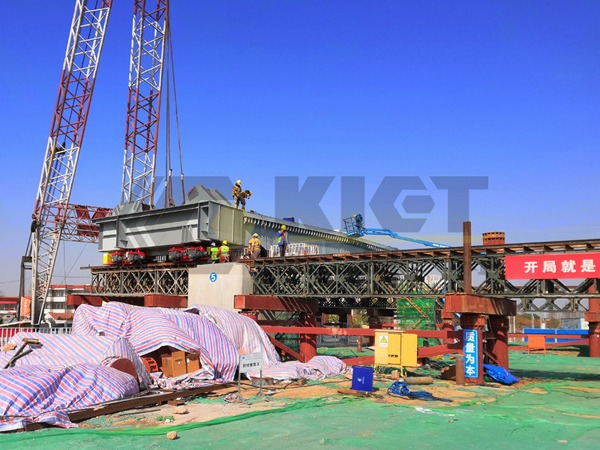

4 three-dimensional adjustment hydraulic trolleys running on the track

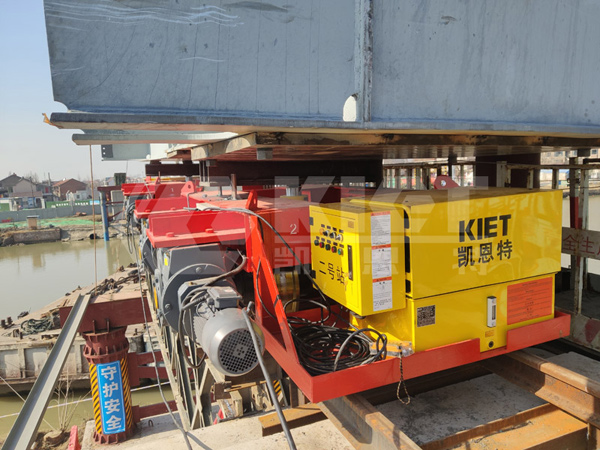

Three-dimensional adjustment hydraulic system for synchronous control and fine-tuning of 4 three-dimensional adjustment hydraulic trolleys
