Heavy Duty Roller Slide
Request a Quote
We will respond to your inquiry within 8 hours

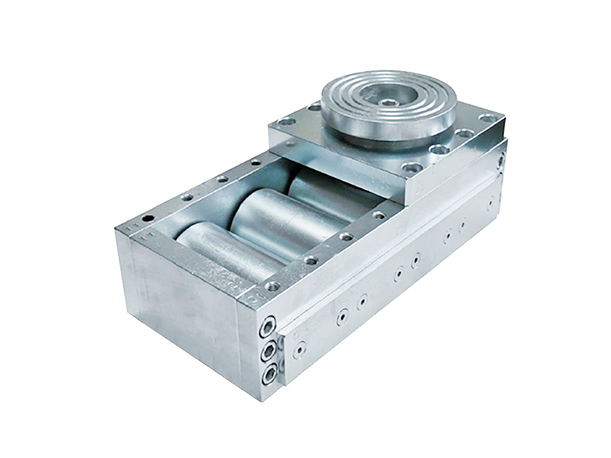

KET-SKHeavy Duty Roller Slide

Features: Low resistance roller, easy to move.

Uses: Heavy objects transport and transfer.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry
Heavy Duty Roller Slide
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail

Features:

  • SK series skateboards are rugged and durable, with a strong construction and long life;
  • Low construction for enhanced stability;
  • Low rolling resistance for easy transportation.

Specs& Dims
Spec Capacity (KN) Height A（mm） Length B（mm） Width C（mm） Roller height D（mm） Diameter E（mm） Saddle diameter F（mm） TipH（mm） Height K（mm）
KET-SK-20 20 115 305 160 95 60 105 7 10
KET-SK-40 40 130 345 180 115 70 125 7 10
KET-SK-60 60 145 389 195 125 80 135 7 10
KET-SK-80 80 160 415 210 135 85 150 7 10
KET-SK-100 100 170 435 220 145 90 160 7 10
KET-SK-125 125 190 495 240 165 105 175 10 10
KET-SK-150 150 210 515 250 175 110 185 10 10
KET-SK -200 200 240 561 277 195 120 205 10 10
KET-SK -250 250 275 605 295 210 130 220 10 10
KET-SK -300 300 290 655 320 225 140 235 10 10
KET-SK -400 400 335 705 360 255 150 265 10 15
KET-SK -500 500 375 755 400 285 160 285 10 15
KIET Tour
Applications
Intelligent Heavy-Duty Transfer Trolley for Overall Transportation of Vessels
Intelligent Heavy-Duty Transfer Trolley for Overall Transportation of Vessels
Intelligent Heavy-Duty Transfer Trolley for Overall Transportation of Vessels
The intelligent heavy-duty transfer trolley consists of hydraulic trolleys and a control system. The hydraulic lifting system can be controlled and operated individually, or with multi-linkage and synchronous control, and is commonly used for the overall transportation of vessels.
Industry Applications：Shipbuilding
Three-dimensional Adjustment Hydraulic Trolley
Three-dimensional Adjustment Hydraulic Trolley
Three-dimensional Adjustment Hydraulic Trolley
This three-dimensional adjustment system uses beam transport trolley to realize the load-lifting of bridge structure.
Industry Applications：Bridges
