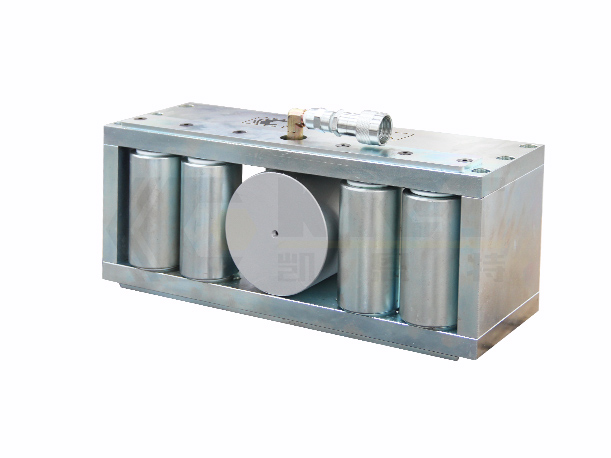

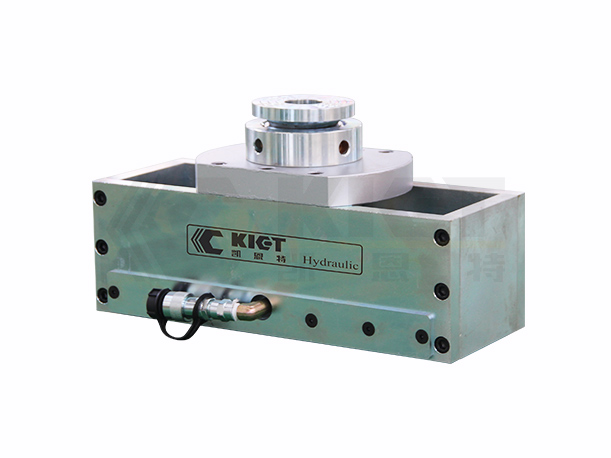

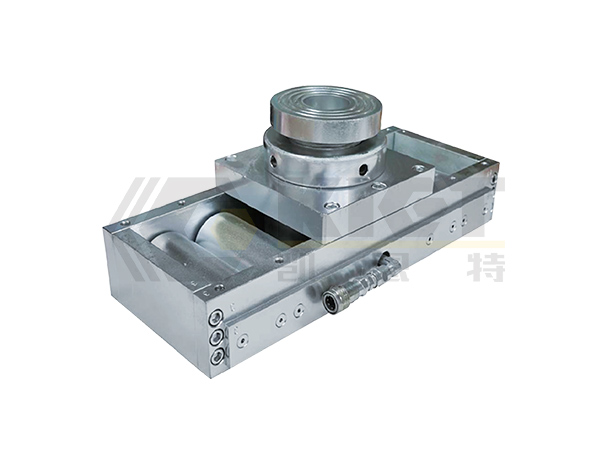

Combined Cylinder Roller Skateboard_Hydraulic Equipments_Jiangsu Canete Machinery Manufacturing Co., Ltd.

Product Detail

Features:

Combined cylinder roller has a feature of being durable, solidly constructed and having a long lifespan
Small overhead height, safe and stable
Low rolling resistance for easy transport
The stroke height of the skateboard can be adjusted manually

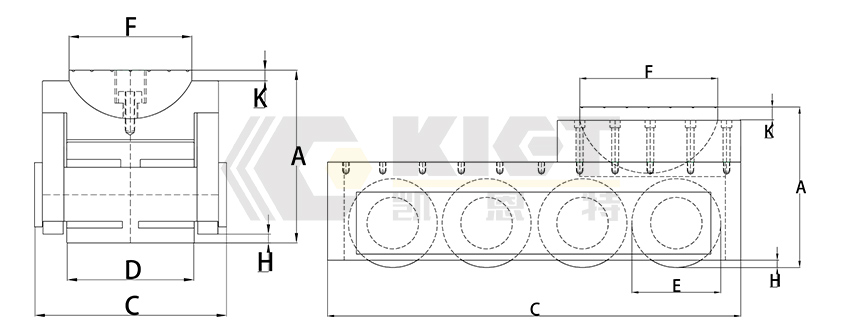

Specs& Dims

Model	Capacity (KN)	Stroke (mm)	Oil Capacity (mm³)	Piston Area (mm²)	Closed Height (mm)	Extended Height (mm)	Width D (mm)	Roller width E (mm)	Saddle Diameter F (mm)	Roller Gap H (mm)	Saddle Diamete J (mm)	Saddle Movement Clearance K (mm)
KET-HSK-202	20	50	318	63.6	207	432	185	120	105	7	60	10
KET-HSK-204	20	100	636	63.6	257	432	185	120	105	7	60	10
KET-HSK-402	40	50	393	78.5	217	485	195	130	120	7	70	10
KET-HSK-404	40	100	785	78.5	267	485	195	130	120	7	70	10
KET-HSK-602	60	50	475	95	242	544	215	145	130	7	80	10
KET-HSK-604	60	100	950	95	292	544	215	145	130	7	80	10
KET-HSK-802	80	50	664	132.7	257	595	245	170	155	7	85	10
KET-HSK-804	80	100	1327	132.7	307	595	245	170	155	7	85	10
KET-HSK-1002	100	50	884	176.7	282	645	275	200	175	7	90	10
KET-HSK-1004	100	100	1767	176.7	332	645	275	200	175	7	90	10
KET-HSK-1252	125	50	1069	213.8	300	725	295	220	195	7	105	10
KET-HSK-1254	125	100	2138	213.8	350	725	295	220	195	7	105	10
KET-HSK-1502	150	50	1135	227	325	755	305	230	200	10	110	10
KET-HSK-1504	150	100	2270	227	375	755	305	230	200	10	110	10
KET-HSK-2002	200	50	1493	298.5	310	830	342	260	230	10	120	10
KET-HSK-2004	200	100	2986	298.5	335	830	342	260	230	10	120	10
KET-HSK-2502	250	50	1815	363	340	900	370	285	250	10	130	10
KET-HSK-2504	250	100	3631	363	390	900	370	285	250	10	130	10
KET-HSK-3002	300	50	2169	433.7	360	980	410	315	275	10	140	10
KET-HSK-3004	300	100	4337	433.7	410	980	410	315	275	10	140	10
KET-HSK-4002	400	50	5726	572.6	405	1080	470	365	320	10	150	15
KET-HSK-4003	400	75	2863	572.6	430	1080	470	365	320	10	150	15
KET-HSK-4004	400	100	5726	572.6	455	1080	470	365	320	10	150	15
KET-HSK-5002	500	50	3653	730.6	450	1170	520	405	360	10	160	15
KET-HSK-5003	500	75	3800	730.6	475	1170	520	405	360	10	160	15
KET-HSK-5004	500	100	4300	730.6	500	1170	520	405	360	10	160	15
