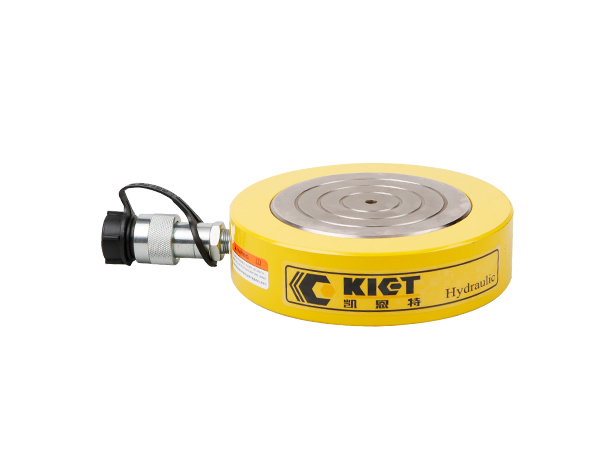

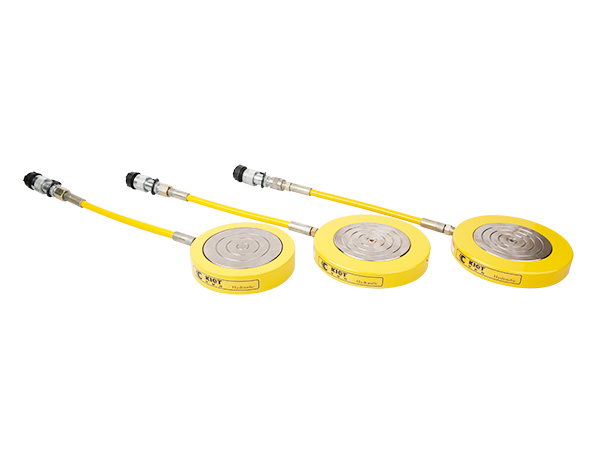

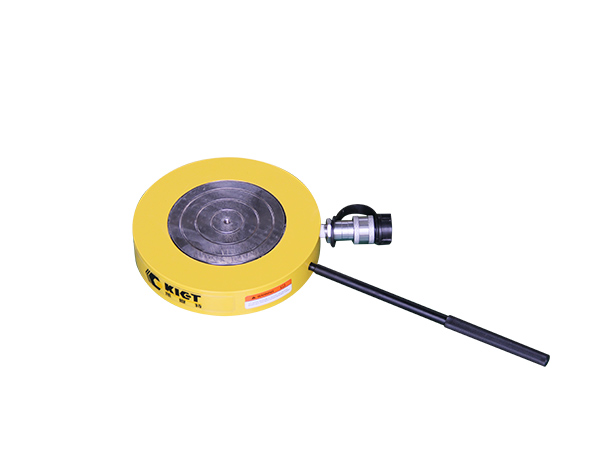

● Dust-proof design, reduces contamination and extend cylinder life

● Single-acting, load return

● Working pressure: 70MPa

● Small size, lightweight, large capacity, easy to operate

● Optional extension connector kit and base plate, suitable for various working conditions

● The utility model relates to a bipolar plunger, which has a high collasped height and is used for space limited occasions

● Tilting plunger

● ±3°Correction ability

● Low friction and high strength combined seal

● Equipped with 3/8 NPT coupler and thread protection sleeve;

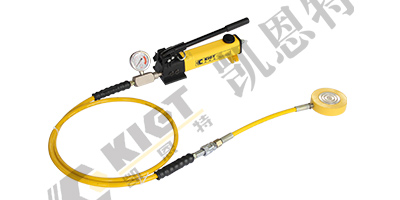

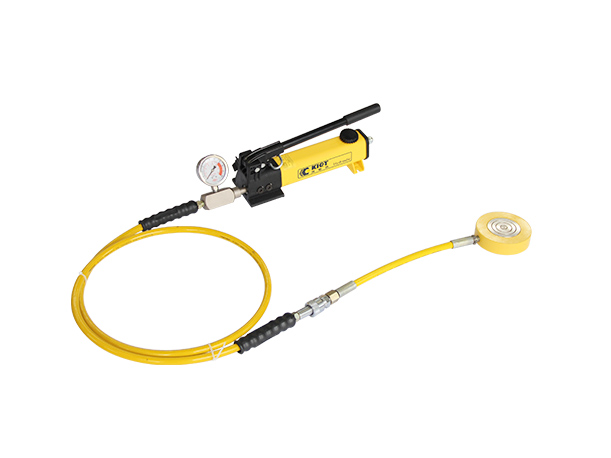

Ultra-Low Height Hydraulic Cylinder Paired with KET-P-392 Manual Pump

● Advantage: Requires minimal manual effort to achieve significant power output.

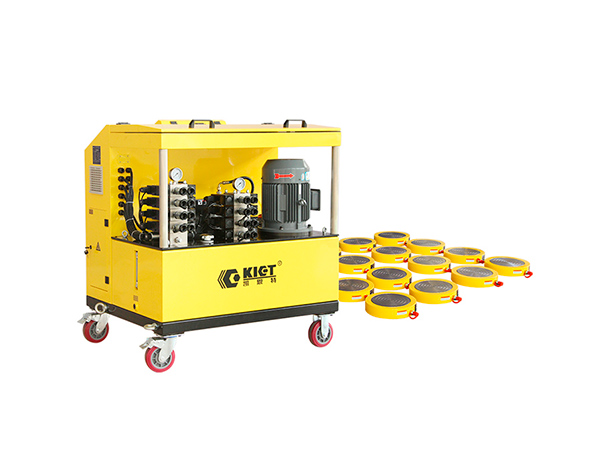

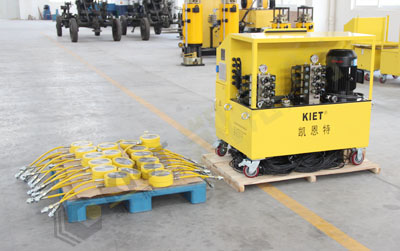

16-Unit Ultra-Low Height Hydraulic Cylinder Synchronous Lifting System

● For the synchronous lifting of multiple ultra-low height hydraulic cylinder, you can choose our pulse width controlled synchronous lifting system. This system allows for all lifting points to be raised simultaneously with a maximum error of ≤0.5mm. It is an excellent solution for synchronous lifting projects in bridge construction and for the maintenance of large-scale equipment.

● For a lower body height combined with a larger working stroke, please consider our low profile hydraulic cylinders

● For higher lifting capacities (300 tons, 500 tons, or more), please select our electric hydraulic jacks.

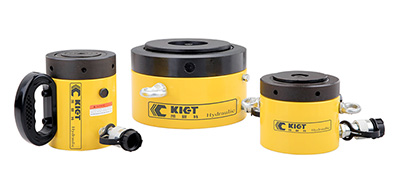

● For applications requiring long-term support with a self-locking feature, please choose our self-locking hydraulic cylinders.
