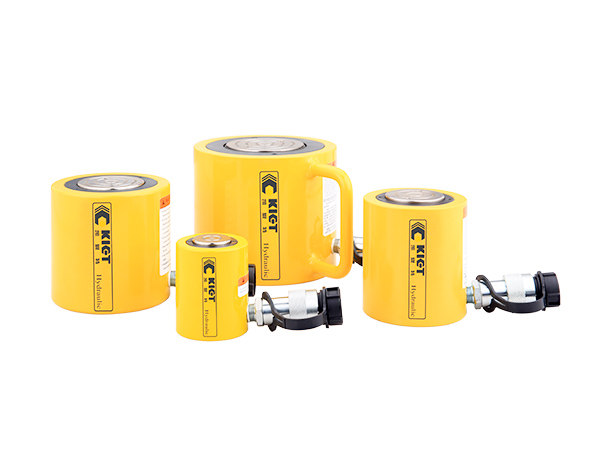

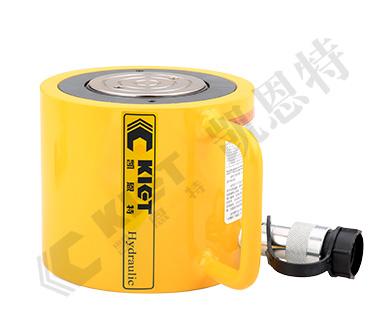

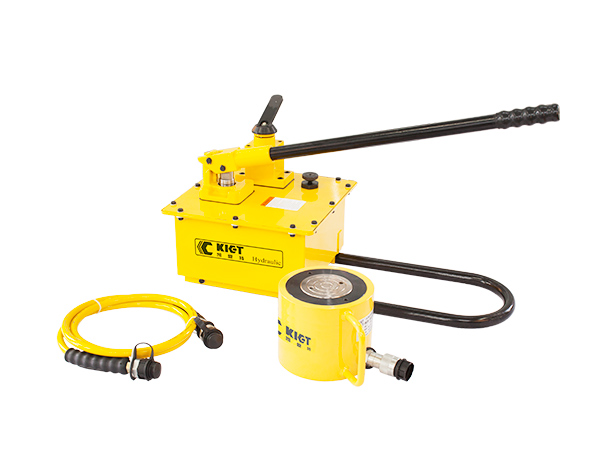

Single Acting Low Height Hydraulic Cylinder
Request a Quote
We will respond to your inquiry within 8 hours
KET-RCSSingle Acting Low Height Hydraulic Cylinder

Features: Lightweight and compact design, a single jack provides a maximum load capacity of 90 tons.

Uses: Widely used in steel mills, power plants, shipyards, cement plants for heavy load installation and maintenance, jacking, bridge jacking.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry
Single Acting Low Height Hydraulic Cylinder
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
  • Product Description
  • Product Features
  • Matching Sets
  • Recommended

  • Single acting low height hydraulic cylinder is widely used in power station, ship manufacturing and maintenance, building, railway, mining, steel plant, cement plants, petrochemical and other industries.

  • ● Single acting, spring return

    ● High strength alloy steel for durability

    ● Lightweight, low profile design for use in confined spaces

    ● Baked enamel finish for increased corrosion resistance

    ● Grooved plunger ends require no saddle

    ● Plunger wiper reduces contamination, extending cylinder life

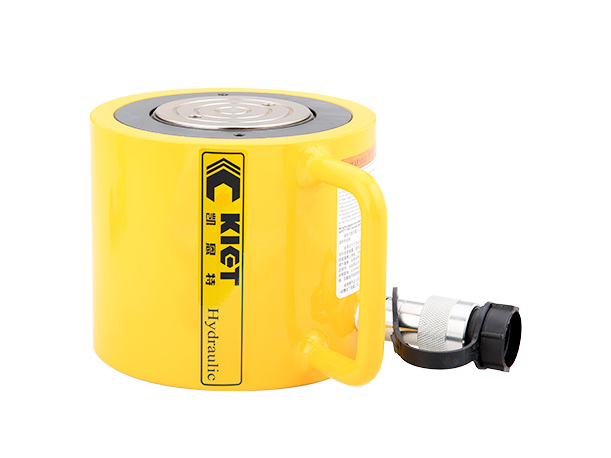

    ● Integral handle on KET-RCS-1002 for easy carrying

    ● 3/8 “- 18NPT coupler and dust cap included on all models

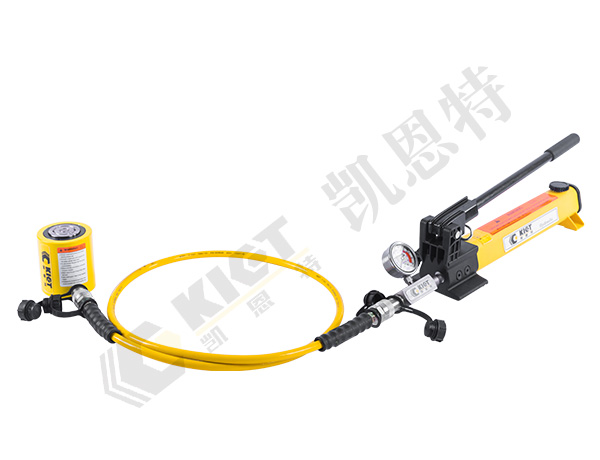

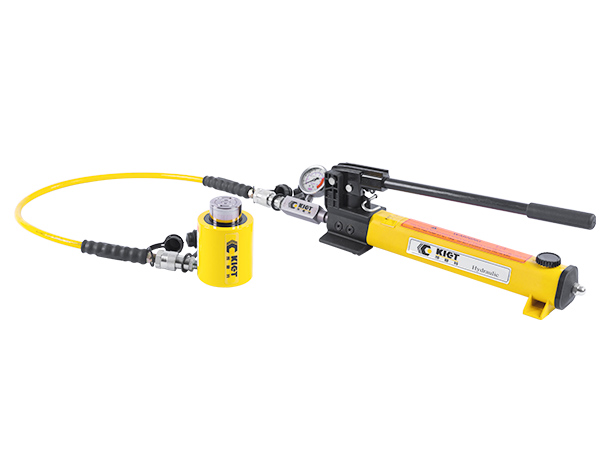

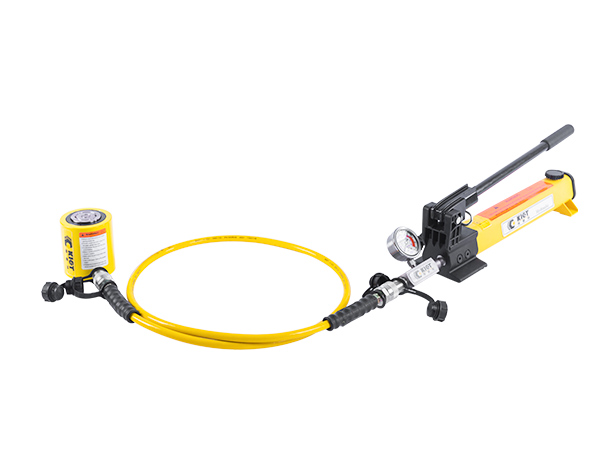

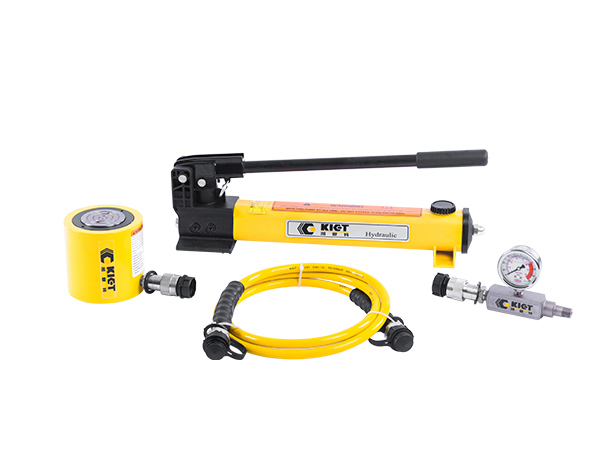

  • Low Profile Hydraulic Cylinder with KET-P-392 Manual Pump

    ● Pros: Generates significant power output with minimal manual input.

    ● Cons: Requires more physical effort and time to operate.

    30-ton Low Profile Hydraulic Cylinder (Four-Point Configuration)

    ● Configuration: Includes an electric pump, hydraulic distribution valve, and five hydraulic hoses.

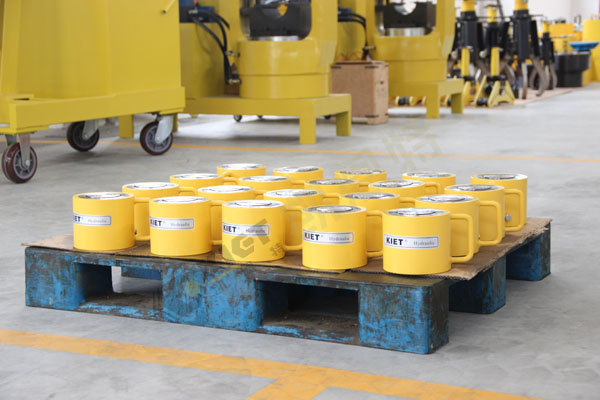

    20-Unit 50-ton Low Profile Hydraulic Cylinder Synchronous Lifting System

    ● For synchronous lifting of multiple jacks, you can choose a pulse width controlled synchronous lifting system. This system ensures all lifting points are raised simultaneously with a maximum error of ≤0.5mm. It is ideal for bridge construction projects and the synchronous lifting of large equipment for maintenance.

  • ● For higher lifting capacities (300 tons, 500 tons, or more), please choose our electric hydraulic jacks.

    ● For applications requiring long-term support with a self-locking feature, please select our self-locking hydraulic cylinders.

    ● For extremely low clearance spaces, please use our ultra-thin hydraulic cylinders.

Specs& Dims
Model Working Pressure Capacity Collapsed Height Stroke Effective Area Oil Capacity Ext.Height Outside Diameter Plunger Diameter Weight
（MPa） (T) (mm) (mm) (cm2) (cm3) (mm) (mm) (mm) (kg)
 KET-RCS-101 70 10 88 38 14.5 55 126 69 38.1 4.1
 KET-RCS-201 70 20 98 45 28.7 129 143 92 50.8 5.0
KET-RCS-302 70 30 117 62 42.1 261 179 101 66.5 6.8
 KET-RCS-502 70 50 122 60 62.1 373 182 124 69.8 10.9
 KET-RCS-1002 70 100 141 57 126.7 722 198 165 92.2 22.7
KET-RCS-1502 70 150 130 44 196 862 174 204 115 33.9
KET-RCS-2500 70 250 155 50 346 1730 205 275 185 63
KET-RCS-3000 70 300 200 60 433 2601 260 297 210 95
KIET Tour
Applications
Synchronous lifting hydraulic system is used for replacing the rubber bearing on site of the basin bearing
Synchronous lifting hydraulic system is used for replacing the rubber bearing on site of the basin bearing
Synchronous lifting hydraulic system is used for replacing the rubber bearing on site of the basin bearing
At the customer's use site, the single-column pier is reinforced, and the temporary support is erected for simultaneous lifting and replacement. The single-column pier top 1250KN-level basin rubber bearing uses our company's synchronous lifting system and jack.
Industry Applications：Bridges
The intelligent control synchronous lifting hydraulic system is used for the replacement of the box girder structure bearing of the Haikou interchange
The intelligent control synchronous lifting hydraulic system is used for the replacement of the box girder structure bearing of the Haikou interchange
The intelligent control synchronous lifting hydraulic system is used for the replacement of the box girder structure bearing of the Haikou interchange
The Haikou overpass is located on the Haikou turntable of Jinshan Avenue. It is a box girder structure and has a variant cloverleaf shape from the outside. There are 6 up and down ramps, nearly 3.7 kilometers. The design speed of the ramp is 40 km/h.
Industry Applications：Bridges
The intelligent control synchronous lifting hydraulic system is used for the replacement of the support of the slab beam structure of Shanghai-Nanjing high-speed
The intelligent control synchronous lifting hydraulic system is used for the replacement of the support of the slab beam structure of Shanghai-Nanjing high-speed
The intelligent control synchronous lifting hydraulic system is used for the replacement of the support of the slab beam structure of Shanghai-Nanjing high-speed
Two 100-ton ultra-thin hydraulic jacks are placed on the single-piece beam, and mechanical support is used as a temporary support tool after the lifting is in place. According to the collection and analysis of technical parameters such as bridge data and construction plan, it was finally decided to use two sets of twenty-four-point intelligent control synchronous lifting hydraulic systems for synchronous control.
Industry Applications：Bridges
Intelligent control synchronous lifting hydraulic system is used for synchronous lifting and emergency repair of Zhejiang plate girder structure overpass
Intelligent control synchronous lifting hydraulic system is used for synchronous lifting and emergency repair of Zhejiang plate girder structure overpass
Intelligent control synchronous lifting hydraulic system is used for synchronous lifting and emergency repair of Zhejiang plate girder structure overpass
At the beginning of this month, through repeated communication between Canete and the shipyard, the ship weighing 2224T was finally closed in place.
Industry Applications：Bridges
Application Areas of Single-Acting Low-Profile Hydraulic Cylinders[Bridge Lifting and Maintenance | Heavy Equipment Lifting]
Application Areas of Single-Acting Low-Profile Hydraulic Cylinders[Bridge Lifting and Maintenance | Heavy Equipment Lifting]
Application Areas of Single-Acting Low-Profile Hydraulic Cylinders[Bridge Lifting and Maintenance | Heavy Equipment Lifting]
Application Areas of Single-Acting Low-Profile Hydraulic Cylinders Bridge Lifting and Maintenance | Heavy Equipment Lifting
Industry Applications：Cement Plant
