Professional supplier of synchronous hydraulic lifting system, synchronous pushing, synchronous hoisting, synchronous conveyor vehicle, hydraulic cylinder, hydraulic jacks.

  • High Tonnage Ultra-Thin Hydraulic Cylinder
High Tonnage Ultra-Thin Hydraulic Cylinder
Request a Quote
We will respond to your inquiry within 8 hours

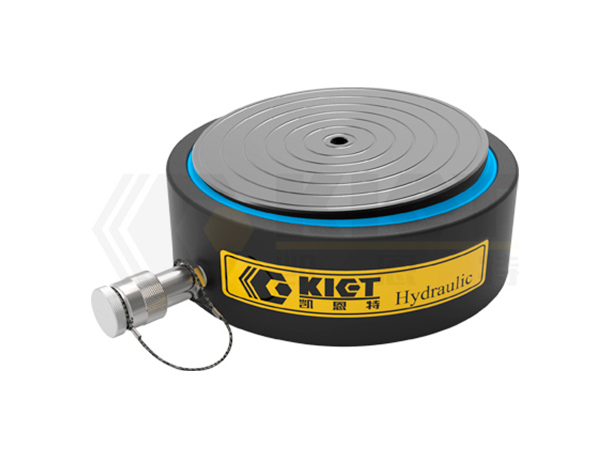

KET-RSCHigh Tonnage Ultra-Thin Hydraulic Cylinder

Features: Up to 4% side load of maximum capacity.

Uses: Large jacking force is required in a small space.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry
High Tonnage Ultra-Thin Hydraulic Cylinder
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail

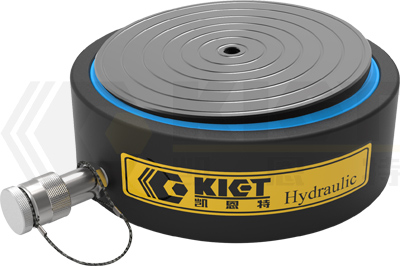

Features of High Tonnage Ultra-Thin Hydraulic Cylinder：
  • Withstand 4% side load of maximum load
  • Very low body height
  • Integrated tilt function up to 4 degrees for even load distribution
  • Nitrocarburized surface treatment for harsh conditions
  • The "red line" of the visual maximum stroke limit

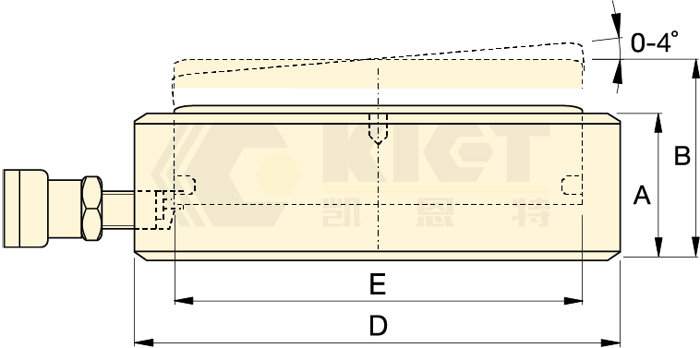

Specs& Dims
Model Capacity(T) Tilting Stroke (mm) Closed HeightA (mm) Extended HeightB(mm) Retract Type Effective Area  (cm²) Oil Capacity (cm³) Stroke (mm) Tilting Angle (°) Weight (kg)
KET-RSC-10 10 7 35 42 Single acting,load return 14 9 6 2 1.2
KET-RSC-20 20 7 41 47 Single acting,load return 29 20 6 2 2
KET-RSC-30 30 7 42 48 Single acting,load return 44 32 6 2 3
KET-RSC-50 50 13 57 67 Single acting,load return 79 104 10 4 6
KET-RSC-75 75 14 61 71 Single acting,load return 113 158 10 4 8
KET-RSC-100 100 15 63 74 Single acting,load return 154 22 10 4 11
KET-RSC-150 150 14 65 75 Single acting,load return 227 324 10 3 15
KET-RSC-200 200 15 69 79 Single acting,load return 300 446 10 3 21
KET-RSC-250 250 15 73 83 Single acting,load return 363 569 10 3 27
KET-RSC-300 300 14 73 83 Single acting,load return 452 637 10 2 34
KET-RSC-400 400 15 77 87 Single acting,load return 572 837 10 2 46
KET-RSC-500 500 15 82 93 Single acting,load return 730 1111 10 2 63
KET-RSC-600 600 15 87 96 Single acting,load return 855 1334 10 2 78
KET-RSC-750 750 16 93 104 Single acting,load return 1075 1757 10 2 105
KET-RSC-1000 1000 17 103 114 Single acting,load return 1452 2531 10 2 157
KIET Tour
Applications
The intelligent control synchronous lifting hydraulic system is used for the replacement of the box girder structure bearing of the Haikou interchange
The intelligent control synchronous lifting hydraulic system is used for the replacement of the box girder structure bearing of the Haikou interchange
The intelligent control synchronous lifting hydraulic system is used for the replacement of the box girder structure bearing of the Haikou interchange
The Haikou overpass is located on the Haikou turntable of Jinshan Avenue. It is a box girder structure and has a variant cloverleaf shape from the outside. There are 6 up and down ramps, nearly 3.7 kilometers. The design speed of the ramp is 40 km/h.
Industry Applications：Bridges
The intelligent control synchronous lifting hydraulic system is used for the replacement of the support of the slab beam structure of Shanghai-Nanjing high-speed
The intelligent control synchronous lifting hydraulic system is used for the replacement of the support of the slab beam structure of Shanghai-Nanjing high-speed
The intelligent control synchronous lifting hydraulic system is used for the replacement of the support of the slab beam structure of Shanghai-Nanjing high-speed
Two 100-ton ultra-thin hydraulic jacks are placed on the single-piece beam, and mechanical support is used as a temporary support tool after the lifting is in place. According to the collection and analysis of technical parameters such as bridge data and construction plan, it was finally decided to use two sets of twenty-four-point intelligent control synchronous lifting hydraulic systems for synchronous control.
Industry Applications：Bridges
Typical Applications of Single-Acting Pancake Jacks and Ultra-Thin Hydraulic Cylinders
Typical Applications of Single-Acting Pancake Jacks and Ultra-Thin Hydraulic Cylinders
Typical Applications of Single-Acting Pancake Jacks and Ultra-Thin Hydraulic Cylinders
Bridge Lifting and Maintenance Solutions Using Single-Acting Low-Profile Jacks,Heavy Equipment Lifting Applications
Industry Applications：Bridges
