Professional supplier of synchronous hydraulic lifting system, synchronous pushing, synchronous hoisting, synchronous conveyor vehicle, hydraulic cylinder, hydraulic jacks.

  • Ultra Low Height Mechanical Cylinder
Ultra Low Height Mechanical Cylinder
Request a Quote
We will respond to your inquiry within 8 hours

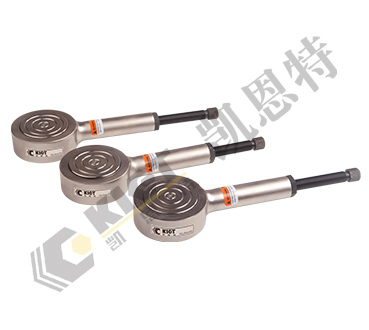

KET-SMCUltra Low Height Mechanical Cylinder

Features: One-piece screw hydraulic structure, no need for additional hydraulic pump and connecting oil pipe.

Uses: Ultra-thin mechanical jack flat design, suitable for other hydraulic jacks can not be applied in narrow space.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry

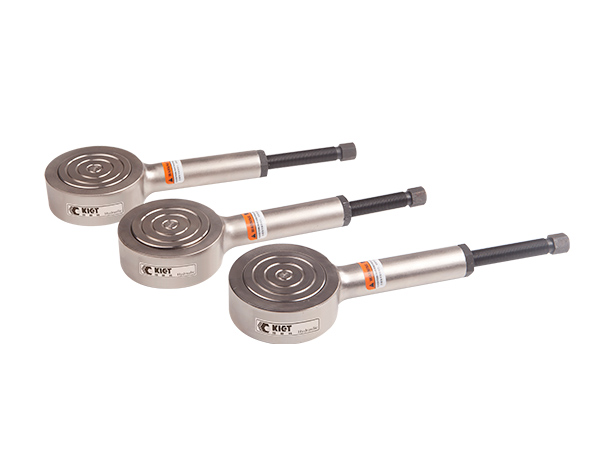

Ultra Low Height Mechanical Cylinder
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
  • Product Description
  • Product Features
  • Recommended

  • Ultra Low Height Mechanical Cylinder is primarily used in situations with extremely limited space, such as: replacing supports for highway bridges, adjusting main engines in shipyards, and lifting steam turbines for maintenance in power plants.

  • ● Ultra low height mechanical cylinder’s compact, flat design, used in confined spaces where most cylinders will not fit;

    ● Light, short, easy to carry, barrier-free working;

    ● High-strength alloy steel, extending service life and strength;

    ● Integrated screw hydraulic structure, no need additional hydraulic pump and hose;

    ● Lifting capacity: 5T-50T, Working stroke: 5mm-25mm.

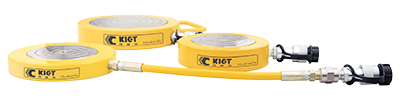

  • ● For an extremely low body height, please choose our ultra-low flat jacks.

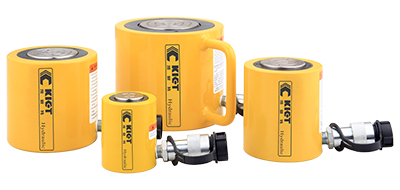

    ● For a lower body height and a larger working stroke, please consider our low profile hydraulic cylinders

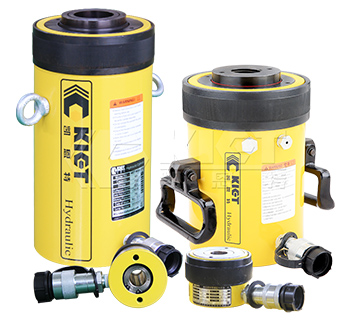

    ● If you need the piston rod to pass through a steel cable or threaded rod, please select our hollow plunger jacks.

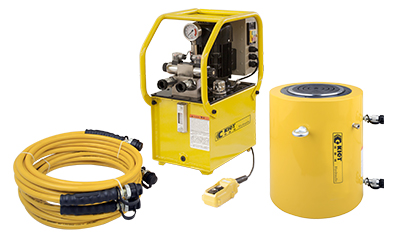

    ● For higher lifting capacities (300 tons, 500 tons, or more), please choose our electric hydraulic jacks.

Specs& Dims
Model Capacity（T） Collapsed Height （㎜） Stroke （㎜） Max. Height （㎜） Outside Diameter （㎜） Max. Length （㎜） Min. Length （㎜）
KET-SMC-525 5 52 25 77 52 275 195
KET-SMC-1025 10 54 25 79 62 348 237
KET-SMC-2005 20 35 5 40 84 289 218
KET-SMC-3005 30 36 5 41 95 314 236
KET-SMC-5005 50 40 5 45 120 401 293
KIET Tour
Applications
Jiangsu Canete hydraulic synchronous lifting system is applied to a bridge lifting project in Beijing
Jiangsu Canete hydraulic synchronous lifting system is applied to a bridge lifting project in Beijing
Jiangsu Canete hydraulic synchronous lifting system is applied to a bridge lifting project in Beijing
The reporter from the front sent a report: Congratulations to Jiangsu Canetefor the synchronous lifting system and hydraulic jack that once again completed the lifting task of the bridge.
Industry Applications：Bridges
The intelligent control synchronous lifting hydraulic system is used for the replacement of the support of the slab beam structure of Shanghai-Nanjing high-speed
The intelligent control synchronous lifting hydraulic system is used for the replacement of the support of the slab beam structure of Shanghai-Nanjing high-speed
The intelligent control synchronous lifting hydraulic system is used for the replacement of the support of the slab beam structure of Shanghai-Nanjing high-speed
Two 100-ton ultra-thin hydraulic jacks are placed on the single-piece beam, and mechanical support is used as a temporary support tool after the lifting is in place. According to the collection and analysis of technical parameters such as bridge data and construction plan, it was finally decided to use two sets of twenty-four-point intelligent control synchronous lifting hydraulic systems for synchronous control.
Industry Applications：Bridges
Application Areas of Ultra-Low Profile Hydraulic Cylinders
Application Areas of Ultra-Low Profile Hydraulic Cylinders
Application Areas of Ultra-Low Profile Hydraulic Cylinders
Application of Ultra-Low Profile Hydraulic Cylinders in Bridge Maintenance and Lifting
Industry Applications：Bridges
