One drive five configuration scheme of double acting high tonnage hydraulic cylinder

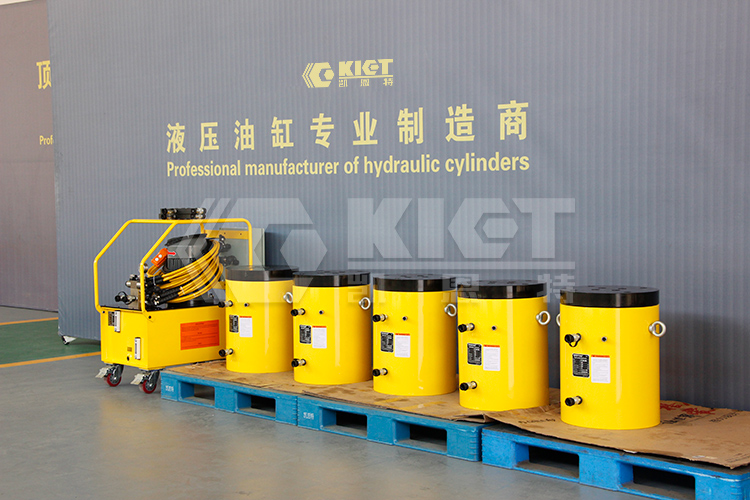

One drive five configuration scheme of double acting high tonnage hydraulic cylinder This configuration includes 5 units 600T double acting high tonnage hydraulic cylinders, 1 unit electric hydraulic pump with solenoid valve, 2pcs five ports distribution valves and 12pcs hydraulic hoses.

Parameters of double acting high tonnage hydraulic cylinder:

Capacity: 600T

Stroke: 150mm

Closed Height: 586mm

Working Pressure: 70Mpa

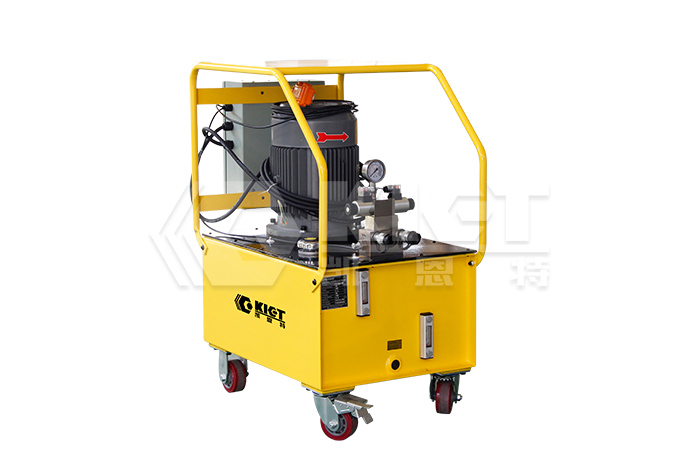

5.5KW electric hydraulic pump with solenoid valve

Parameters of electric hydraulic pump:

Working Pressure: 70Mpa

Rated Flow: 4L/min

Oil Tank Capacity: 70L

Motor Power: 5.5KW
