As a commonly used lifting tool, the hydraulic cylinder has the advantages of large lifting force, easy control and a wide variety of models. In daily use, apart from using a single unit, sometimes two or more hydraulic cylinders are needed to be used together. Since the hydraulic cylinder is powered by hydraulic pump, how to better connect the cylinder with the pump is the key point we will focus on in this revision.

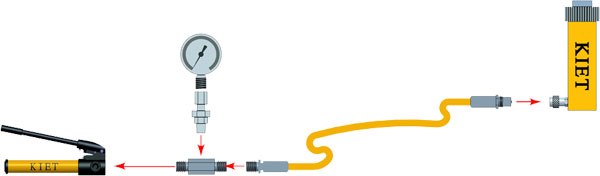

1：One drive one single acting hydraulic cylinder equipped with hydraulic hand pump

For the use of a single unit hydraulic cylinder, we can choose hydraulic hand pump that meets its cylinder volume. Corresponding configuration list: 1 unit hydraulic hand pump, 1 unit single acting hydraulic cylinder, 2 pairs of quick couplings (male and female couplings), 1pc hydraulic hose and 1pc pressure gauge.

Physical image：10T/20Tn low height cylinder equipped with hydraulic hand pump [one drive one]

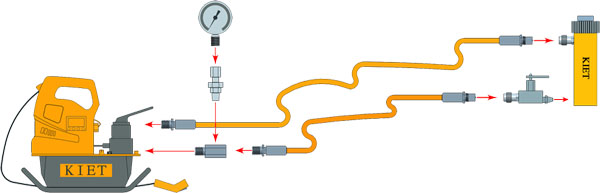

2：One drive one double acting hydraulic cylinder equipped with electric hydraulic pump

For the use of a single double acting hydraulic cylinder, we can choose electric hydraulic pump that meets its cylinder volume. Corresponding configuration list: 1 unit electric hydraulic pump, 1 unit double acting hydraulic cylinder, 4 pairs of quick couplings (male and female couplings), 2pcs hydraulic hoses and 1pc pressure gauge.

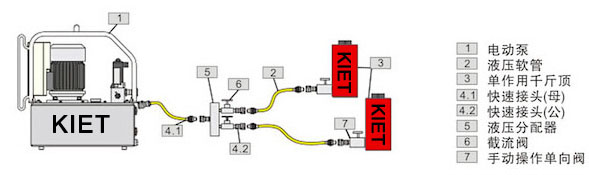

3：One drive two single acting hydraulic cylinder equipped with electric hydraulic pump

To ensure that two single acting hydraulic cylinders can work simultaneously, first, we must ensure that they are the same model. Next, we select electric hydraulic pump that meets the volume requirements of two cylinders. Corresponding configuration list: 1 unit electric hydraulic pump, 2 units single acting hydraulic cylinders, 6 pairs of quick couplings (male and female couplings), 3pcs hydraulic hoses, 1pc distribution valve, 2pcs shut-off valves (optional) and 2pcs check valves (optional).

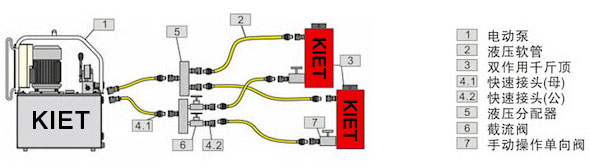

4：One drive two double acting hydraulic cylinder equipped with electric hydraulic pump

To ensure that two double acting hydraulic cylinders can work simultaneously, first, we must ensure that they are the same model. Next, we select electric hydraulic pump that meets the volume requirements of two cylinders. Corresponding configuration list: 1 unit electric hydraulic pump, 2 units double acting hydraulic cylinders, 12 pairs of quick couplings (male and female couplings), 6pcs hydraulic hoses, 2pcs hydraulic distribution valves, 2pcs shut-off valves (optional), 2pcs check valves (optional).

Relevant configurations：Configuration method for 100T electric hydraulic jack [one drive two]

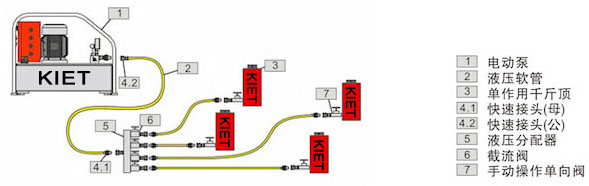

5：One drive four single acting hydraulic cylinder equipped with electric hydraulic pump

To ensure that four single acting hydraulic cylinders can work simultaneously, first, we must ensure that they are the same model. Next, we select electric hydraulic pump that meets the volume requirements of all four cylinders. Corresponding configuration list: 1 unit electric hydraulic pump, 4 units single acting hydraulic cylinders, 10 pairs of quick couplings (male and female couplings), 5pcs hydraulic hoses, 1pc hydraulic distribution valve, 4pcs shut-off valves (optional), 4pcs check valve (optional).

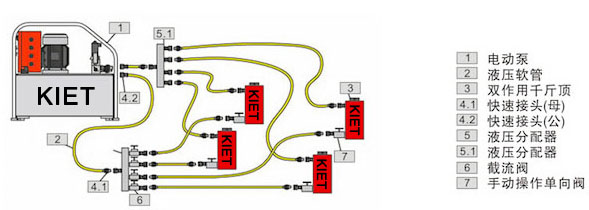

6：One drive four double acting hydraulic cylinder equipped with electric hydraulic pump

To ensure that four double acting hydraulic cylinders can work simultaneously, first, we must ensure that they are the same model. Next, we select electric hydraulic pump that meets the volume requirements of all four cylinders. Corresponding configuration list: 1 unit electric hydraulic pump, 4 units double acting hydraulic cylinders, 18 pairs of quick couplings (male and female couplings), 9pcs hydraulic hoses, 2pcs hydraulic distribution valve, 4pcs shut-off valves (optional), 4pcs check valve (optional).

Other multi-point synchronization, similar to the above, can be adapted by selecting different distribution valves. If you have any questions, please consult our sales engineer and you will receive a satisfactory answer.
