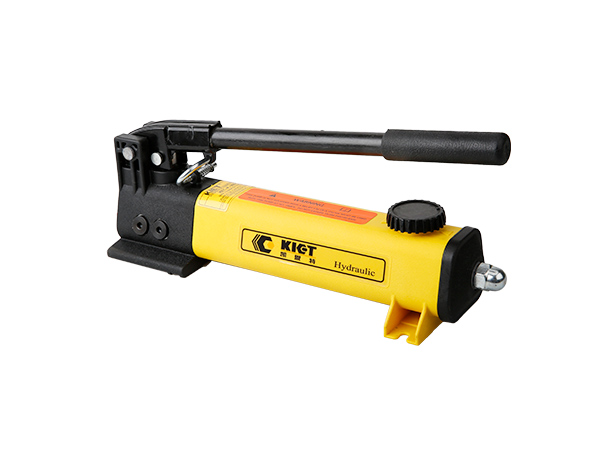

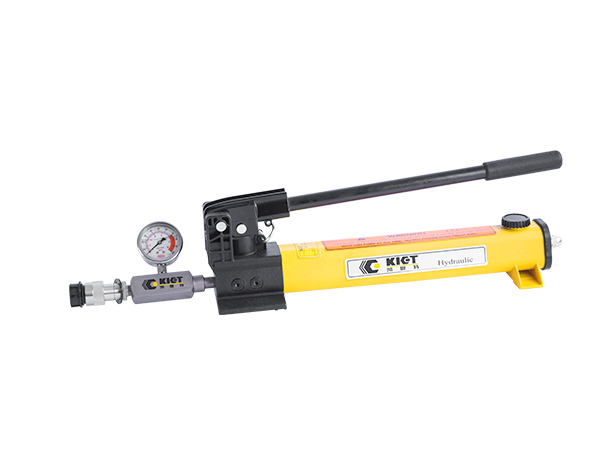

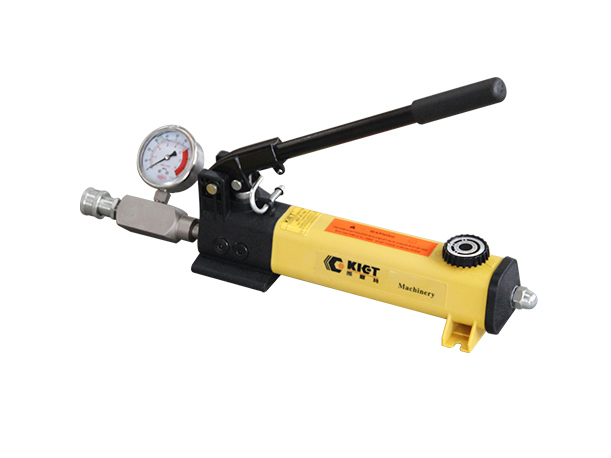

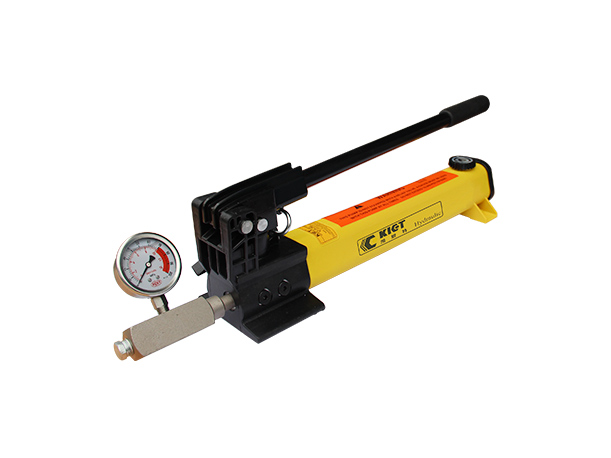

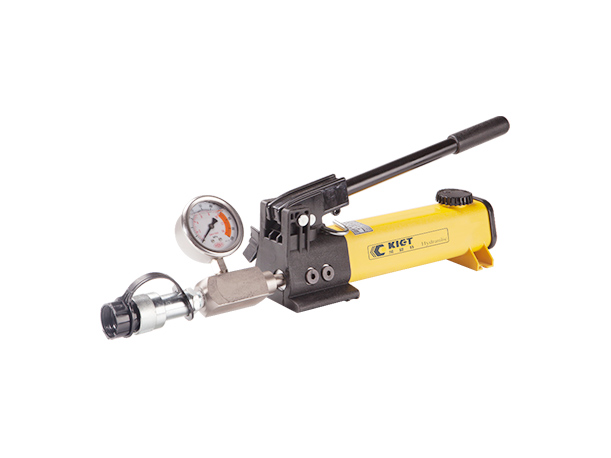

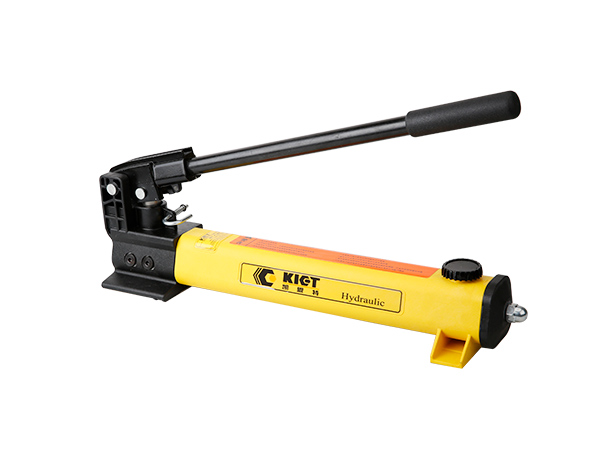

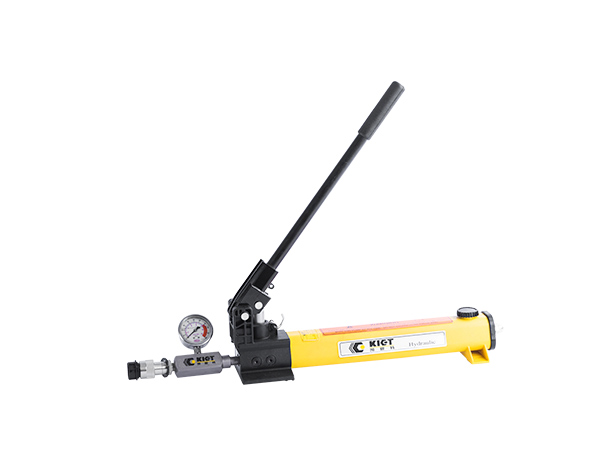

KET-P392/142Lightweight Hydraulic Hand Pump

Features: High voltage, manual, ultra-small, easy to carry, simple to operate, wide application range.

Uses: Used with hydraulic jacks and other hydraulic tools.

Send us an email

Tel 0086-523-86183388

Back to List

Inquiry

Lightweight Hydraulic Hand Pump

Details
Specs
Cases
Video
Related

Back

Product Detail

Light weight hand pump is a kind of small high pressure hydraulic pump that can transfer mechanical power to hydraulic power, matched with the hydraulic cylinder for lifting the heavy equipment, and also can be matched with the other hydraulic tools for bending, cutting, assembling, dismantling etc.

Product Features:

High pressure, manual type, light weight, portable, easy to operate.
Two speed operation, automatic switching, high performance, large oil tank.
Built-in safety valve to avoid damage caused by high pressure.
Optional directional valve to make it more convenient to operate the single acting cylinders.

Specs& Dims

Model	Working Pressure (MPa)		Oil Displacement per Stroke (ml)		Outlet Size	Oil Tank Capacity (ml)	Dimensions (mm)	Weight(kg)
Model	1st stage	2nd stage	1st stage	2nd stage	Outlet Size	Oil Tank Capacity (ml)	Dimensions (mm)	Weight(kg)
KET-P-142	1.3	70	32	1.6	NPT3/8”	350	310X137X127	2.2
KET-P-392	1.3	70	32	1.6	NPT3/8”	901	533X157X127	4.0

KIET Tour

Applications

[Hydraulic pump station]Used with various hydraulic tools

The hydraulic pump station provides hydraulic energy for various hydraulic tools, and converts mechanical energy into hydraulic energy through hydraulic drive.

Industry Applications：Equipment Manufacturing
