KET-P392FPLightweight Hydraulic Foot Pump

Features: Control of backhaul when loaded and fast backhaul when loaded.

Uses: Used with hydraulic jacks and other hydraulic tools.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry

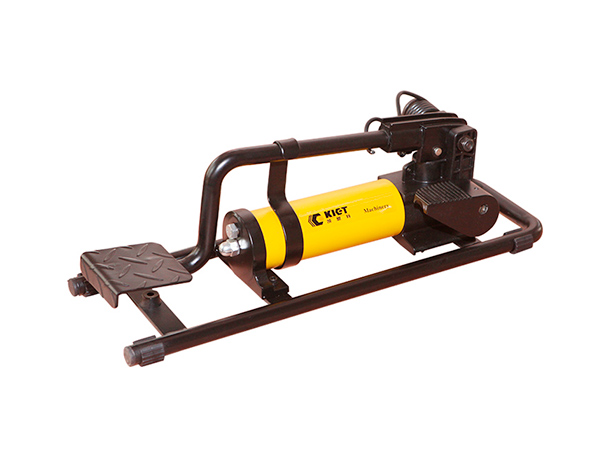

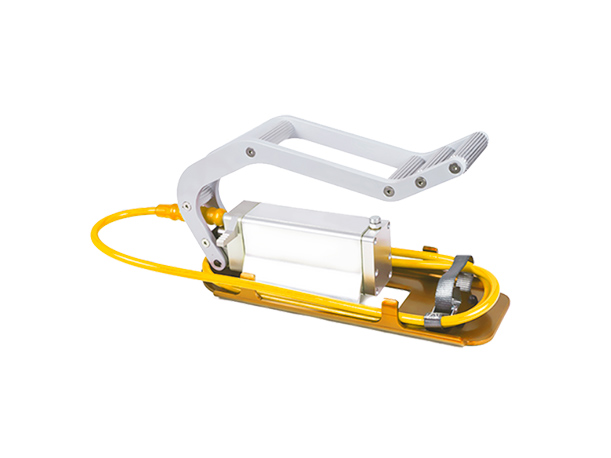

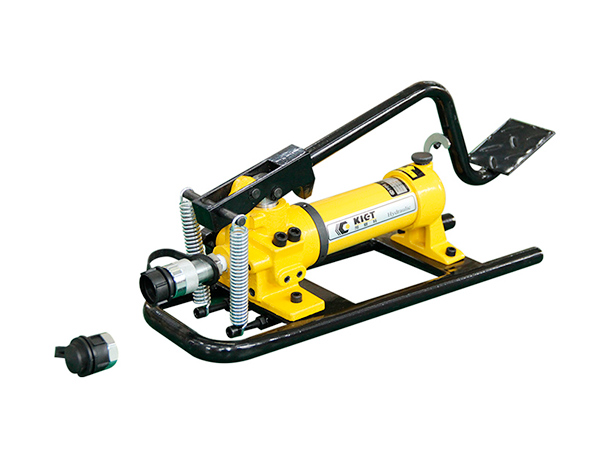

Lightweight Hydraulic Foot Pump
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
Features:
  • Rugged, durable and compact
  • Steel frame with steel drawer for maximum stability
  • Foot lock and lightweight construction for easy portability
  • Two-speed operation reduces pedal stroke
  • Large foot pad release valve for controlled load drop
  • Integrated pressure relief valve for overload protection
Specs& Dims
Technical Parameters
Model Working Pressure
(bar) 		Oil Displacement per Stroke
(ml/once) 		Remark Dimensions
(mm) 		Weight
(kg)
1st stage 2nd stage 1st stage 2nd stage
KET-P-392FP 15 700 11.26 2.47 Steel 600×193×433 7
KET-P-400FP 26 700 12 2 Steel 720×180×200 8
Technical Parameters
Model Working Pressure(MPa) Flow（L） Oil Tank Capacity(L) Weight(kg)
1st stage 2nd stage
KET-HP-700 70 12.26 cc per use 2.26 cc per use 1 8
KIET Tour
Applications
[Hydraulic pump station]Used with various hydraulic tools
[Hydraulic pump station]Used with various hydraulic tools
[Hydraulic pump station]Used with various hydraulic tools
The hydraulic pump station provides hydraulic energy for various hydraulic tools, and converts mechanical energy into hydraulic energy through hydraulic drive.
Industry Applications：Equipment Manufacturing
