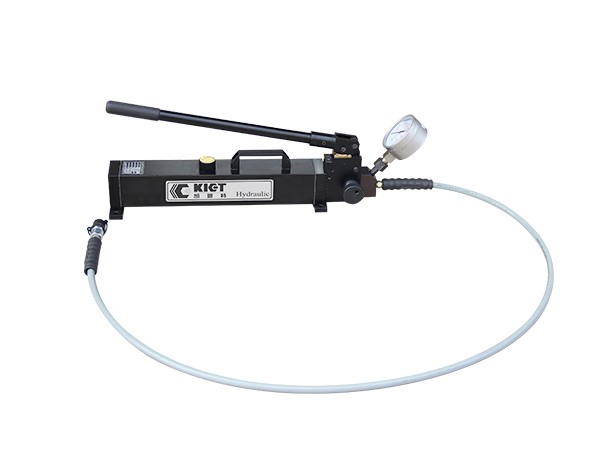

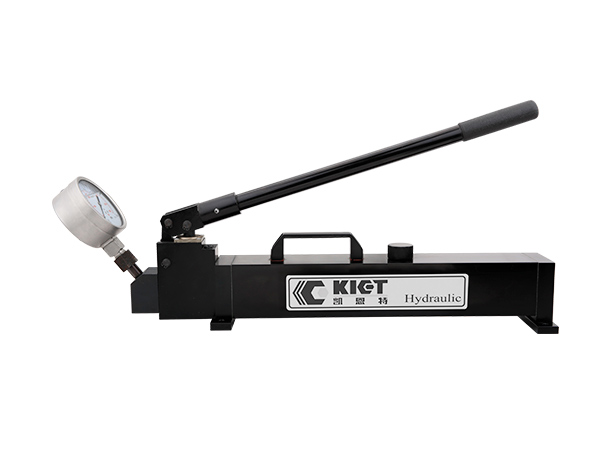

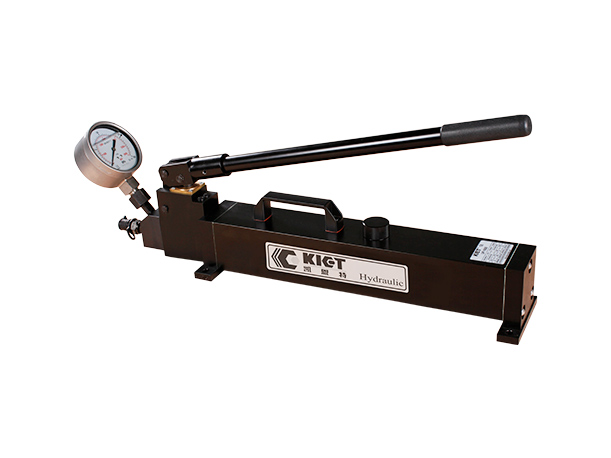

Features: Aerospace aluminum-titanium alloy oil tank, light weight, high strength, and easy to carry on-site application.
Uses: It is equipped with ultra-high pressure hydraulic jacks, hydraulic bolt stretchers, hydraulic nuts, and ultra-high pressure nut splitters.
| Model | Working Pressure (MPa) |
Plunger Displacement (ml) |
Outlet Size |
Pressure Gauge Outlet | Oil Capacity (L) |
Dimensions (mm) |
Weigh (kg) |
||
| 1st stage | 2nd stage | 1st stage | 2nd stage | ||||||
| KET-P-1000 | 2 | 100 | 32 | 1.6 | G1/4" | G1/2" | 2.2 | 620×120×160 | 9 |
| KET-P-1600 | 2 | 160 | 32 | 1.6 | G1/4" | G1/2" | 2.2 | 620×120×160 | 9 |
| KET-P-2000 | 2 | 200 | 32 | 0.9 | G1/4" | G1/2" | 2.2 | 620×120×160 | 11 |

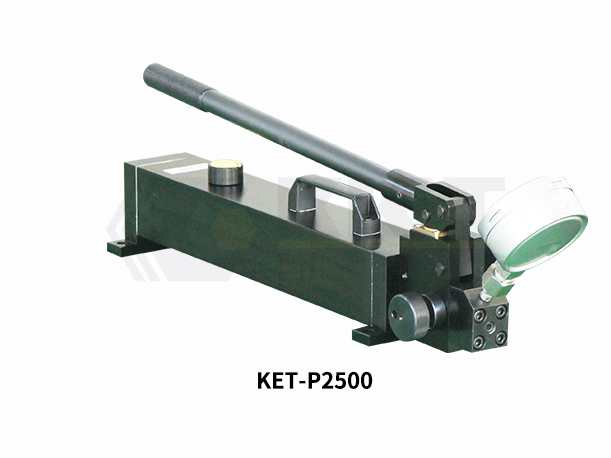

| KET-P-2500 | 2 | 250 | 32 | 0.9 | G1/4" | G1/2" | 2.2 | 620×120×160 | 11 |
| KET-P-3000 | 2 | 300 | 32 | 0.9 | G1/4" | G1/2" | 2.2 | 620×120×160 | 11 |
![[Hydraulic pump station]Used with various hydraulic tools](/KIET_upLoad/JJFA/75/s.jpg)
