Mobile Hydraulic Lifting Jack
Request a Quote
We will respond to your inquiry within 8 hours
KET-JCJMobile Hydraulic Lifting Jack

Features: Large base cushion supports the oil cylinder and all-round wheels, making the lifting more stable and convenient.

Uses: Large base cushion supports the oil cylinder and all-round wheels, making the lifting more stable and convenient.

Mobile Hydraulic Lifting Jack
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail

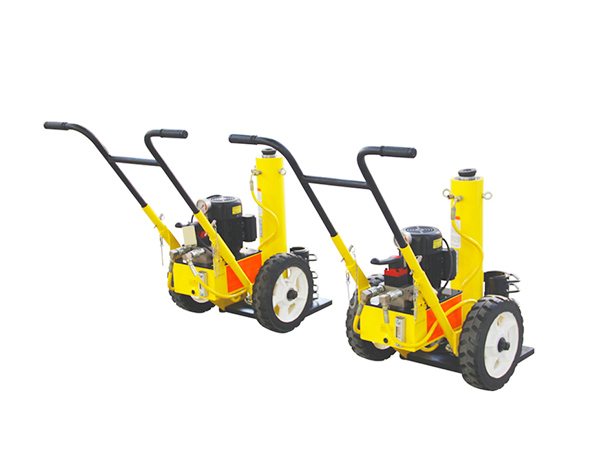

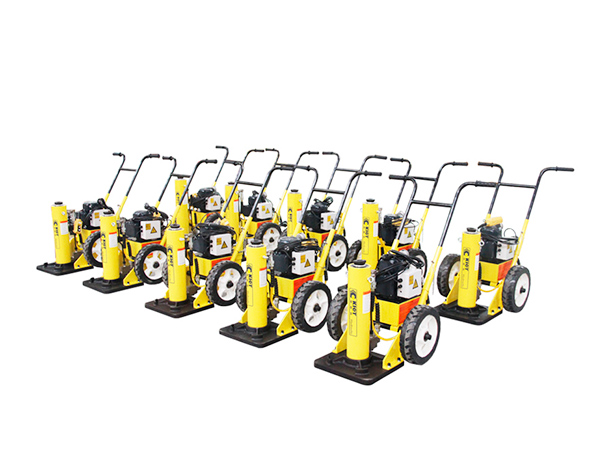

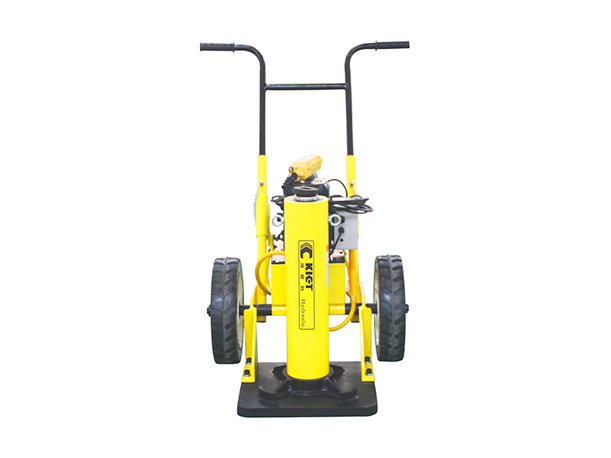

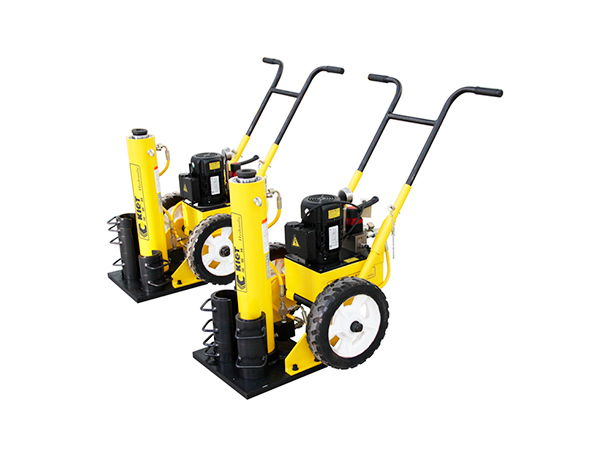

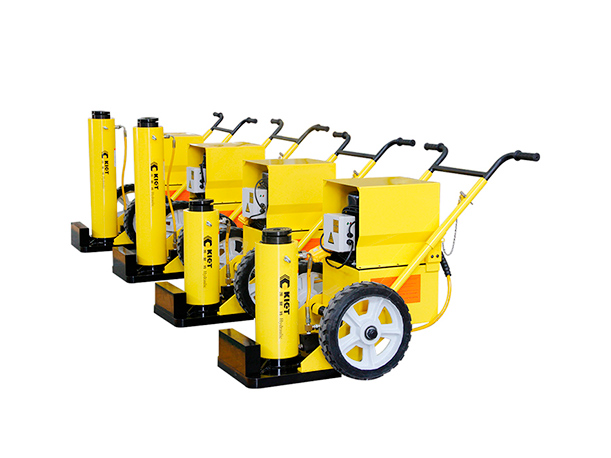

Mobile Hydraulic Lifting Jack are suitable for lifting and lowering operations on various types of railway vehicles, including electric/diesel locomotives, passenger coaches (both standard and air-conditioned), and other large rolling stock. This facilitates maintenance work on car bodies, bogies, and other critical components.

Features:
  • Rugged wear-resistant heavy-duty structure extends its service life;
  • All-round wheels for easy transport and placement;
  • Electric drive mode, working capacity range 50-200T, suitable for various high-intensity operations;
  • Adjustable handle can be adjusted in three directions for easy transport and tilt angle adjustment;
  • Auxiliary ram to increase the collapsed height, significantly increase the lifting height, without need of support pad.
Specs& Dims
Model Capacity (T) Working Pressure (MPa) Stroke (mm) Pump Type Valve Type
KET-JCJ-50-356 50 70 356 Electric Hydraulic Pump Manual Valve/Solenoid Valve
KET-JCJ-50-690 50 70 690 Electric Hydraulic Pump Manual Valve/Solenoid Valve
KET-JCJ-100-406 100 70 406 Electric Hydraulic Pump Manual Valve/Solenoid Valve
KET-JCJ-100-445 100 70 445 Pneumatic Hydraulic Pump Manual Valve
KET-JCJ-100-686 100 70 686 Electric Hydraulic Pump Manual Valve/Solenoid Valve
KET-JCJ-150-350 150 70 350 Electric Hydraulic Pump Manual Valve/Solenoid Valve
