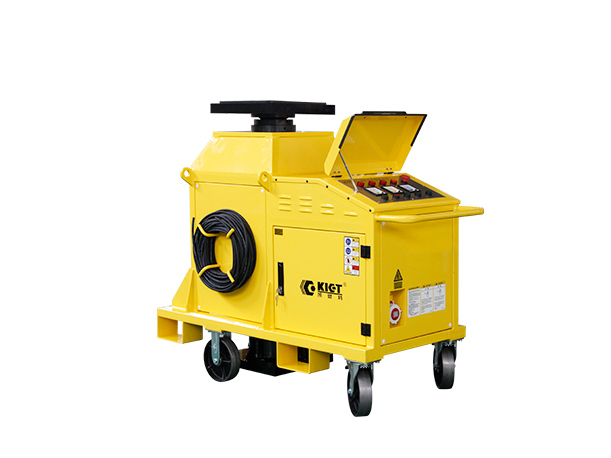

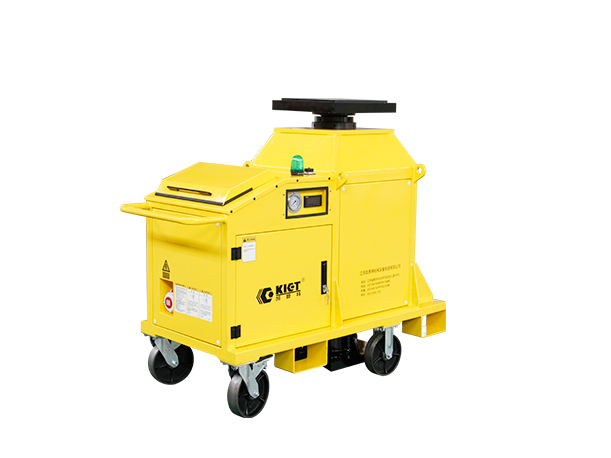

Features: Semi-automatic, integrated, height adjustable.

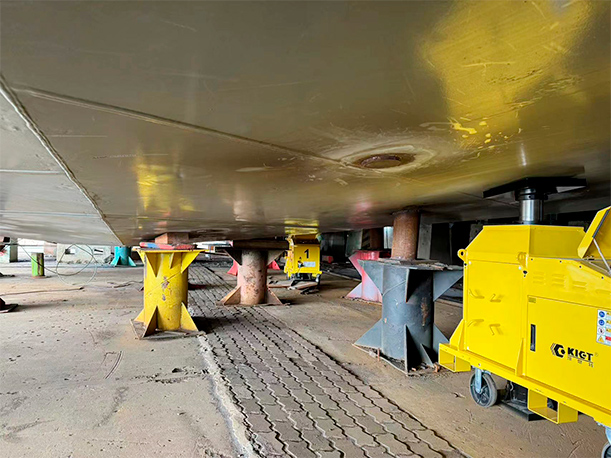

Uses: Designed for small hull segments 400-800 tons height adjustment, which allows the segments to be accurately positioned in the vertical direction.
|
Model No. |
Capacity (t) |
Working Pressure (MPa) |
Vertical Adjustment (mm) |
Mini Height (mm) |
Max Height (mm) |
Tiltable Angle (º) |
| KET-HCA-100 |
400(100×4) |
70 |
0~300 |
1250 |
1550 |
5 |
| KET-HCA-200 |
800(200×4) |
70 |
0~300 |
1250 |
1550 |
5 |
