KET-YTJHydraulic Steel Wire Rope Swaging Machine

Features: Adopts a non-cut plastic processing technology, which has stable operation, low noise and high working efficiency.

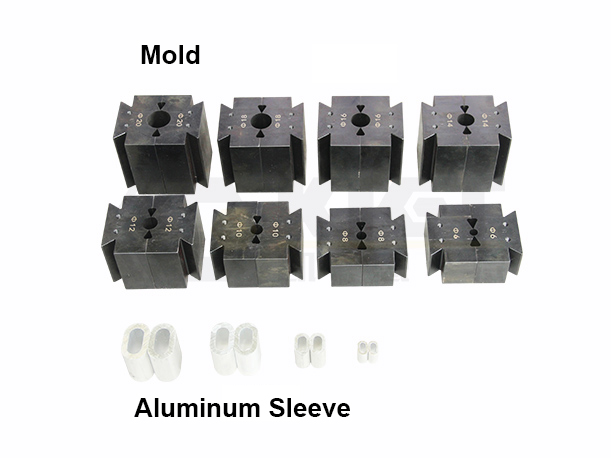

Uses: used for pressing of various rigging aluminum sleeves.

Send us an email

Tel 0086-523-86183388

Back to List

Inquiry

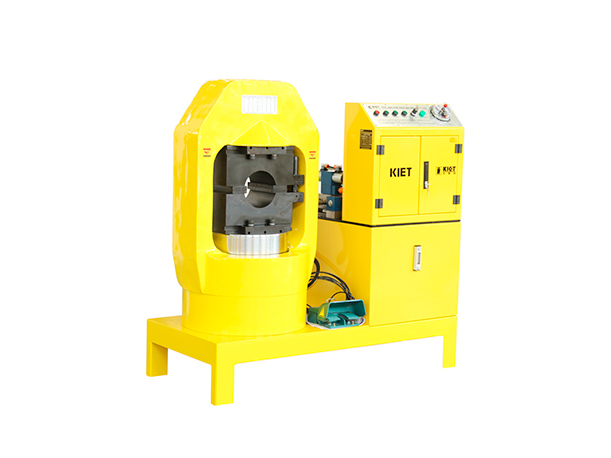

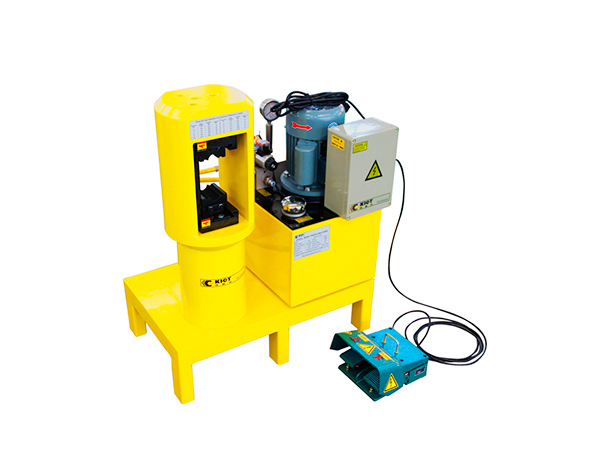

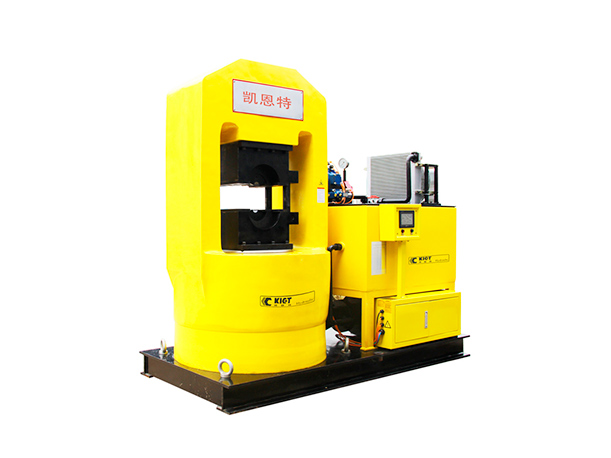

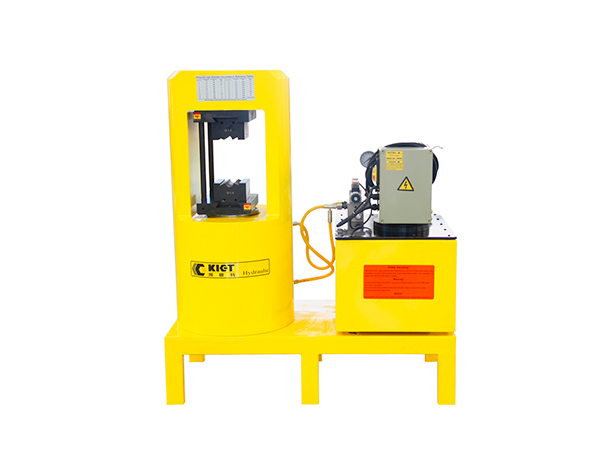

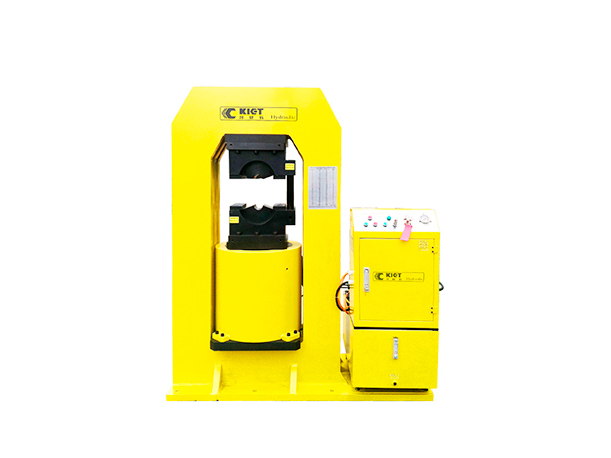

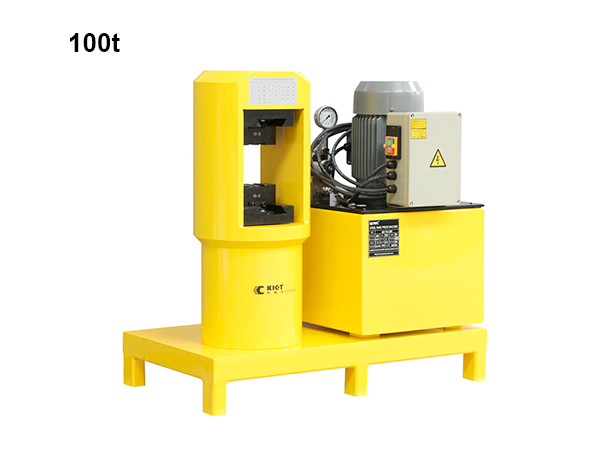

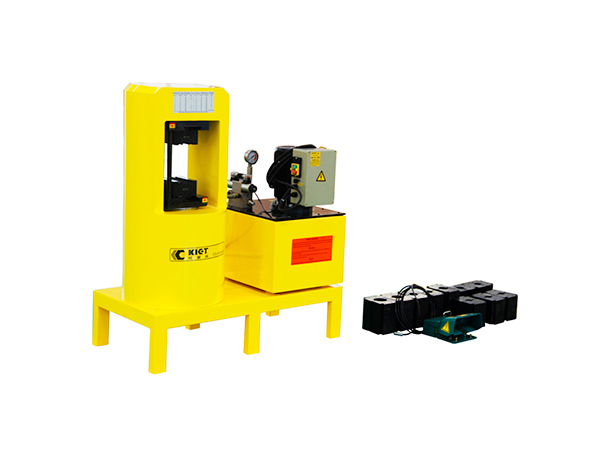

Hydraulic Steel Wire Rope Swaging Machine

Details
Specs
Cases
Video
Related

Back

Product Detail

Hydraulic Steel Wire Rope Swagging Machine, developed independently by KIET, is a new machine with aesthetic aircraft design and advanced technology manufacturing. The main component of the body is made of high-quality alloy steel which makes it durable. The machine is operated with hydraulic power, it features compact structure, stable operation, low noise, high efficiency.

Applications：

It is processed in non-cutting shape technology, without destroying the strength of the wire, making the premise of soft metal in the mold cavity full flow, tighten the steel wire rope, through the friction between the steel wires to achieve the purpose of forming. At present, we have 100T, 200T, 300T, 500T, 800T, 1000T, 1500T, 2000T, 3000T, 5000T, etc.

Specs& Dims

Model	Capacity（T）	Wire Rope Diameter（mm）	Working Pressure（MPa）	Motor Power（KW）	Voltage（V）	Current Frequency（HZ）	Weight（Kg）
KET-YTJ-100	100	6-14	70	0.75	380	50	200

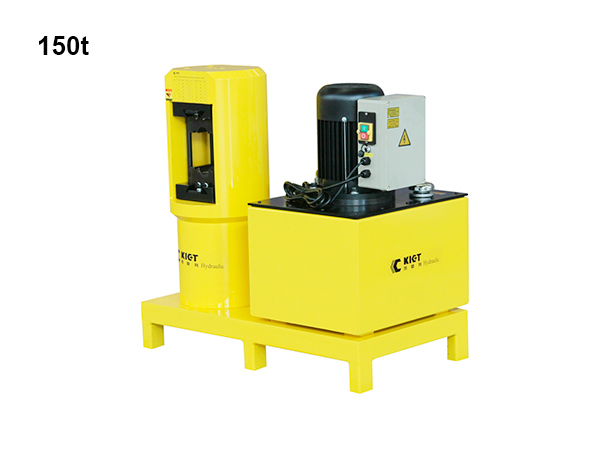

KET-YTJ-150	150	6-20	70	2.2	380	50	375
KET-YTJ-350	350	6-32	70	2.2	380	50	420
KET-YTJ-500	500	6-38	28	7.5	380	50	2040
KET-YTJ-800	800	10-48	30	15	380	50	4010
KET-YTJ-1000	1000	10-56	63	7.5	380	50	4508
KET-YTJ-1500	1500	10-65	70	5.5	380	50	10000
KET-YTJ-2000	2000	10-78	28	30	380	50	21453

KIET Tour

Applications

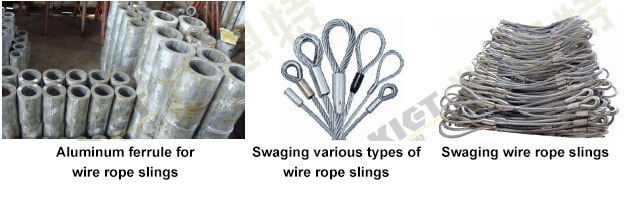

[Wire Rope Pressing Machine]Used for pressing the aluminum sleeve of steel wire rope

Industry Applications：Equipment Manufacturing
