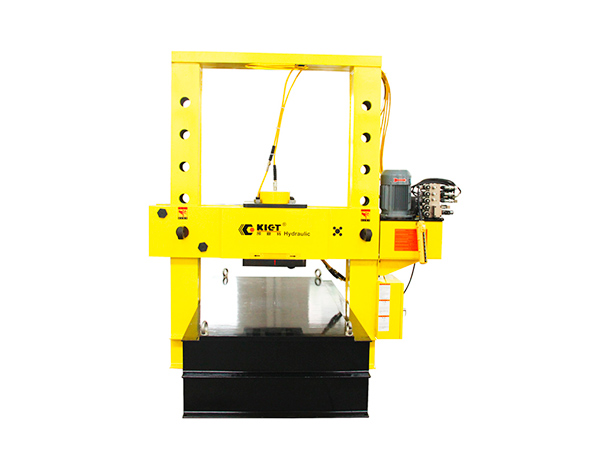

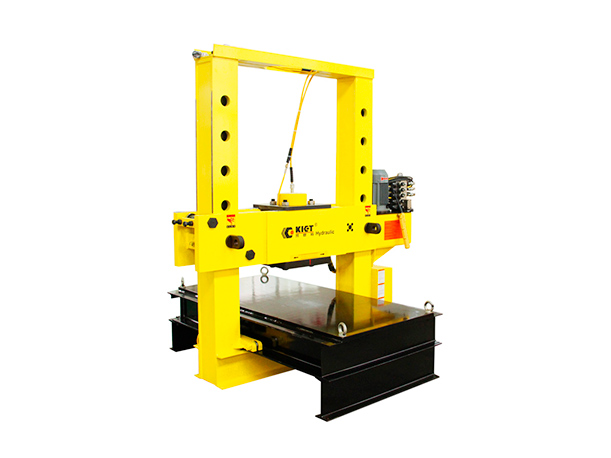

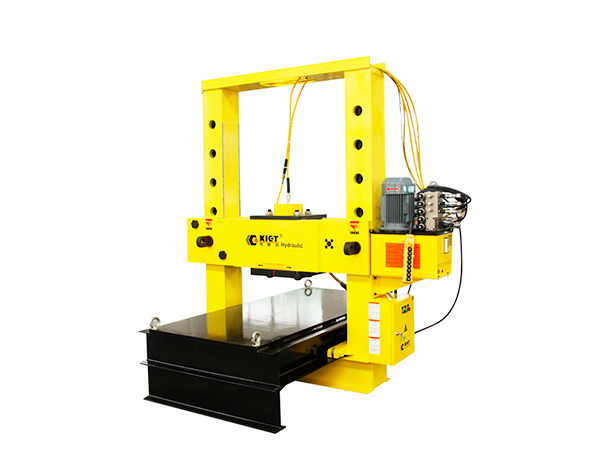

Features: It can move the pressure plate up and down, move the hydraulic jack left and right, and move the bed frame front and rear.
Uses: used for various workpiece pushing work, such as repairing motors, motors, disassembly and assemble bearings, gears, etc.

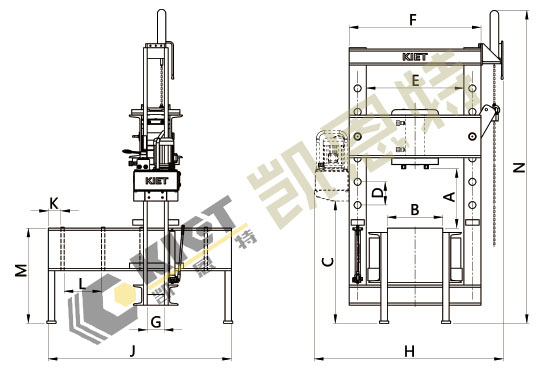

| Model | Capacity | Max. Vertical Daylight | Max. Bed Width | Cylinder Stroke | Dimensions (mm) | Weight | |||||||||||||
| (T) | (mm) | (mm) | (mm) | A(Max.) | A(Min.) | B | C | D | E | F | G | H | J | K | L | M | N | (kg) | |
| KET-IPR-5075 | 50 | 942 | 730 | 333 | 942 | 152 | 526 | 971 | 264 | 730 | 933 | 127 | 1420 | 1626 | 203 | 270 | 762 | 2870 | 889 |
| KET-IPR-10075 | 100 | 1048 | 889 | 333 | 1048 | 159 | 965 | 673 | 222 | 889 | 1143 | 146 | 1605 | 1676 | 203 | 270 | 813 | 3021 | 1746 |
| KET-IPR-20075 | 200 | 1295 | 1219 | 330 | 1295 | 279 | 984 | 933 | 254 | 1219 | 1626 | 232 | 2150 | 2197 | 203 | 381 | 915 | 3200 | 3568 |
