Features: Double-acting hydraulic cylinder, quick return to position and improve pipe bending efficiency.
Uses: It is used for smooth and wrinkle-free water pipes, wire pipes, gas pipes, and bent pipes, and is especially suitable for bending molding of thick-walled steel pipes.

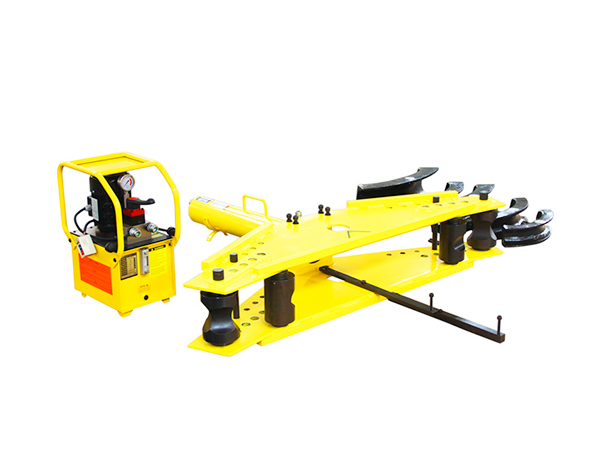

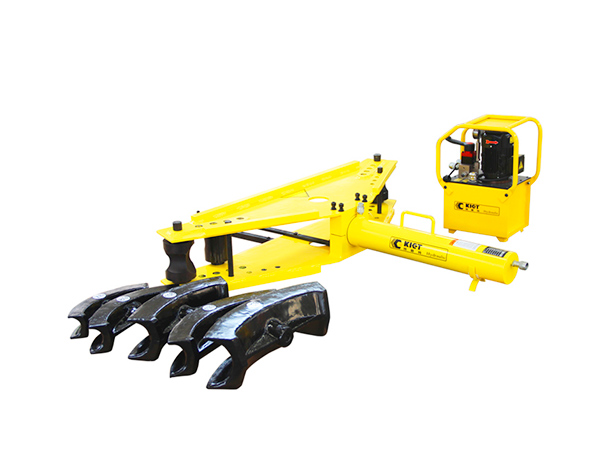

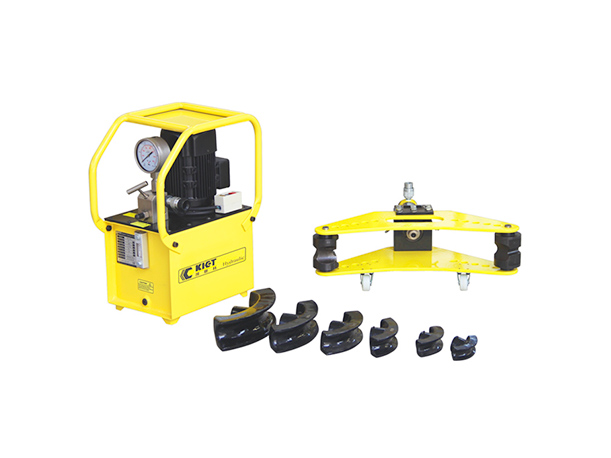

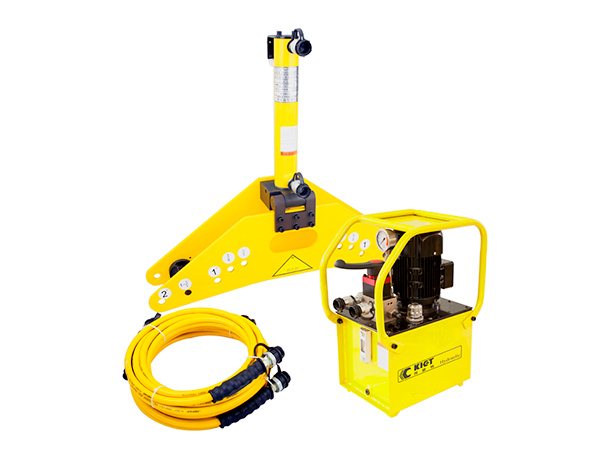

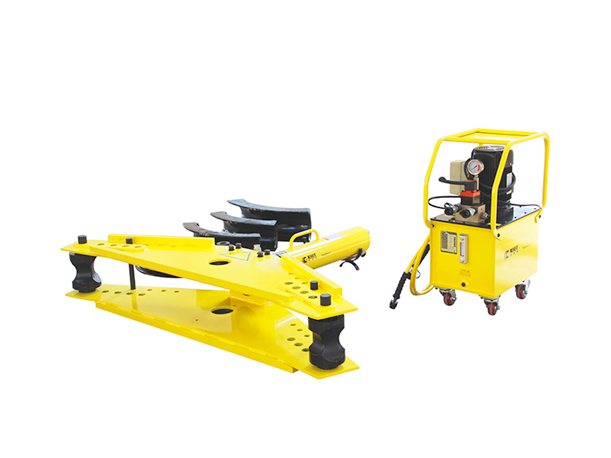

Separately designed between the bender and pump, easy to carry on site. It is widely used in smooth wrinkle-free bending for water pipes, wire pipes, gas pipes, pipe, especially for thick-walled pipes.
Size 1/2" - 2" pipes can be bent to 90º at a time, size 2" - 6" must move the pipe to bend.
| Model | Bending Range ㎜ | Bending Radius ㎜ | Pipe Thickness ㎜ | Max. Capacity KN |
| KET-DWG-60 | 22-60 | 4×pipe diameter | ≤4 | 100 |
| Female mould 2 pieces Pin 2 pieces Bending tyre: 22 27 34 42 48 60 | ||||
| KET-DWG-76 | 27-76 | 4×pipe diameter | ≤10 | 300 |
| Female mould 2 pieces Pin 2 pieces Bending tyre: 27 34 42 48 60 76 | ||||
| KET-DWG-108 | 27-108 | 4×pipe diameter | ≤10 | 300 |
| Female mould 2 pieces Pin 2 pieces Bending tyre： 27 42 48 60 76 89 108 | ||||
| KET-DWG-159 | 76-159 | 4×pipe diameter | ≤10 | 500 |
| Female mould 2 pieces Pin 2 pieces Bending tyre: 76 89 108 133 159 Block 2 pieces | ||||
