Features: simple operation, high efficiency, when a group of four is working at the same time, it can automatically control the synchronous lifting.
Uses: It is suitable for various types of railway electric locomotives, diesel locomotives and other vehicles to carry out ascending and lowering operations.

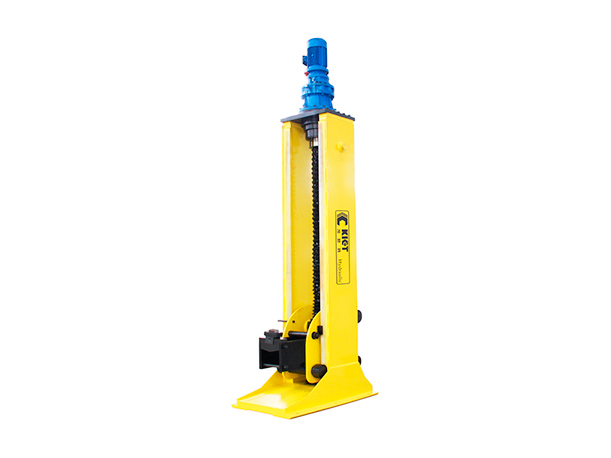

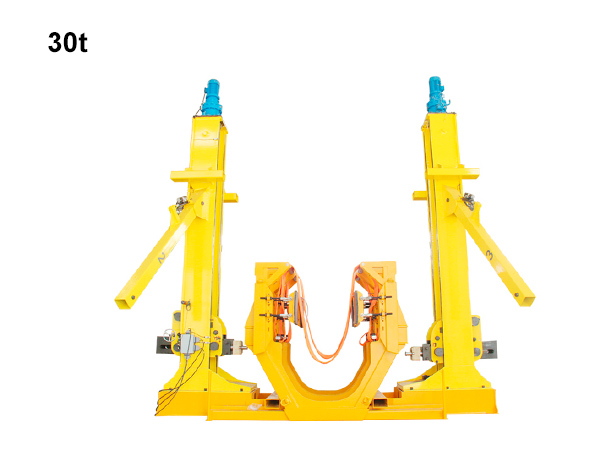

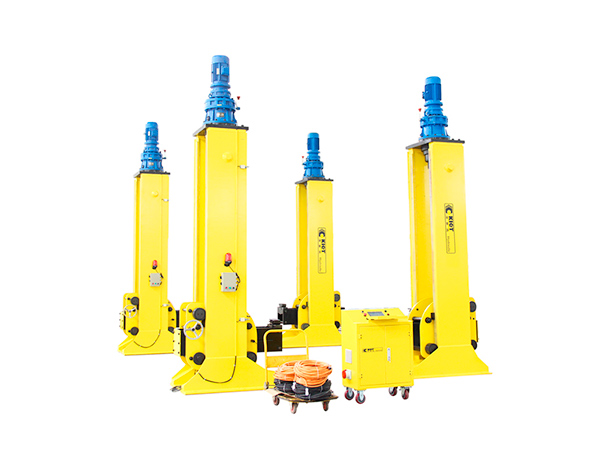

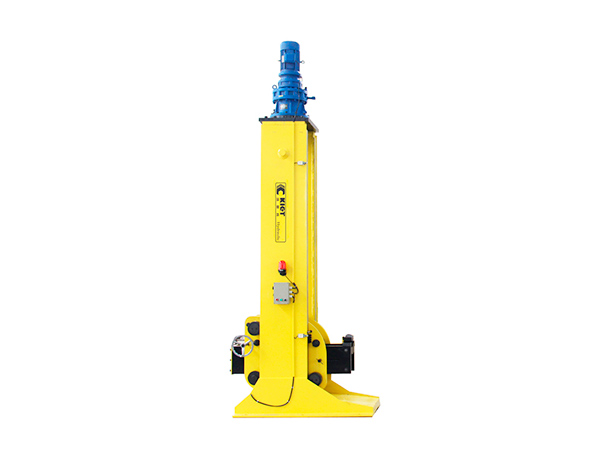

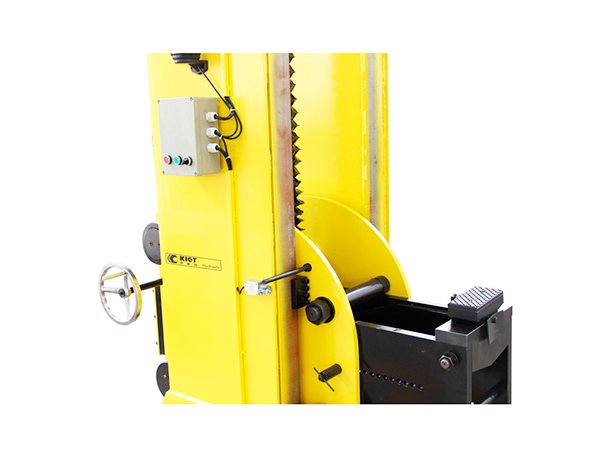

Product Applications: Mobile lifting jacks for locomotives are suitable for all types of railway electric locomotives, diesel locomotives and other vehicles to implement up and down operating requirements, to facilitate the body, bogies and other parts maintenance operations, usually operating simultaneously with four sets.
| Model | Single Lifting Capacity (T) | Lifting Speed (mm/min) | Min. Height of Support Head (mm) | Max. Stroke of Support Head (mm) | Horizontal Extended Distance of Support Head (mm) | Synchronous Control Precision (mm) |
| KET-JCJ-30 | 30 | about 150 | 800 | ≥ 2200 | 0-500 | <12 |
| Model | Bracket Bearing Surfaces of4xLifting Jacks (mm) | Bracket Bearing Surfaces of8xLifting Jacks (mm) | Tilt Angle of Support Head (°) | Sound (Measure from 3 meter distance) (db) | Installation Type | Service Life (year) |
| KET-JCJ-30 | ≤ 2 | ≤ 2 | 2-3 | ≤ 70 | Mobile Type | 30 |
| Model | Voltage (V) | Motor Power (KW) | Rated Lifting Capacity (T) | Min. Height of Support Head (mm) | Lifting Height (mm) | Dimensions (mm) |
| KET-JCJ-16G | AC380 | 3 | 16 | 250 | 2000 | 1200×1080×3500 |
| KET-JCJ-25G | AC380 | 4 | 25 | 300 | 2000 | 1300×750×2800 |
| KET-JCJ-30G | AC380 | 4 | 30 | 822 | 2000 | 1600×950×4273 |
