Features: Simple and convenient transfer equipment. In order to make the transfer smooth, two units need to be used simultaneously.
Uses: Response and install large-scale transformers of power plants, large-scale boilers of power plants, large marine diesel engines and other super-large equipment.

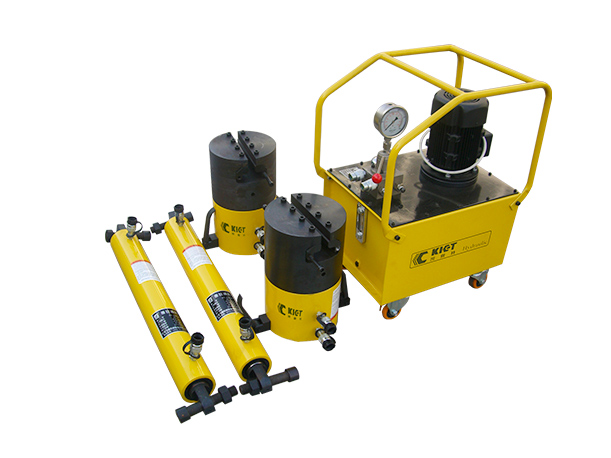

The on-track heavy load hydraulic pusher is composed of clamping cylinder and pushing-moving cylinder, electric hydraulic pump, hydraulic hose, and widely used in pushing large-scale equipment for installation.It is equipped with heavy rail (38kg/m, 43kg/m, 50kg/m). In order to smoothly move the heavy objects, you must use two sets hydraulic pushers at the same time.Conveniently, safely, quickly and accurately move the large power plant transformers, large power plants boilers, large marine diesel engines and other large equipment to the designated installation location.
| Model | Standard Configuration | Prepared by User | How to use |
| KET-SCM-200T | 1×clamping cylinder, 1×pushing-moving cylinder, 1×electric hydraulic pump, 4×6m hydraulic hose, 1×distributing valve | 2×active sliding boots, 2×passive sliding boots, 200T equipment | Connect 1×clamping cylinder and 1×pushing-moving cylinder by hydraulic hose in series, driving by 1×electric hydraulic pump |
| KET-SCM-400T | 2×clamping cylinder, 2×pushing-moving cylinder, 2×electric hydraulic pump, 8×6m hydraulic hose, 2×distributing valve | 4×active sliding boots, 4×passive sliding boots, 400T equipment | Connect 2×clamping cylinders, 2×pushing-moving cylinders, 2×electric hydraulic pumps and 2×distributing valves by hose in series, driving by 2×electric hydraulic pumps |
![[Hydraulic equipment]Application site](/KIET_upLoad/JJFA/74/s.jpg)
